100V 200A Mosfet Module - MOS200N10P
Home Products SOT-227B SOT-227 PackagePower MOSFET module100V 200A Mosfet Module - MOS200N10P
Product details
100V 200A Mosfet Module - MOS200N10P
Features:
- High power density
- Easy to mount
- Easy to use and parallel
- Fast intrinsic Rectifier
- Very short recovery time
- Isolation voltage 2500 VAC
- International standard package
Applications:
- DC-DC converters
- DC choppers
- Pulse generators
- Switched-mode and resonant-mode power supplies

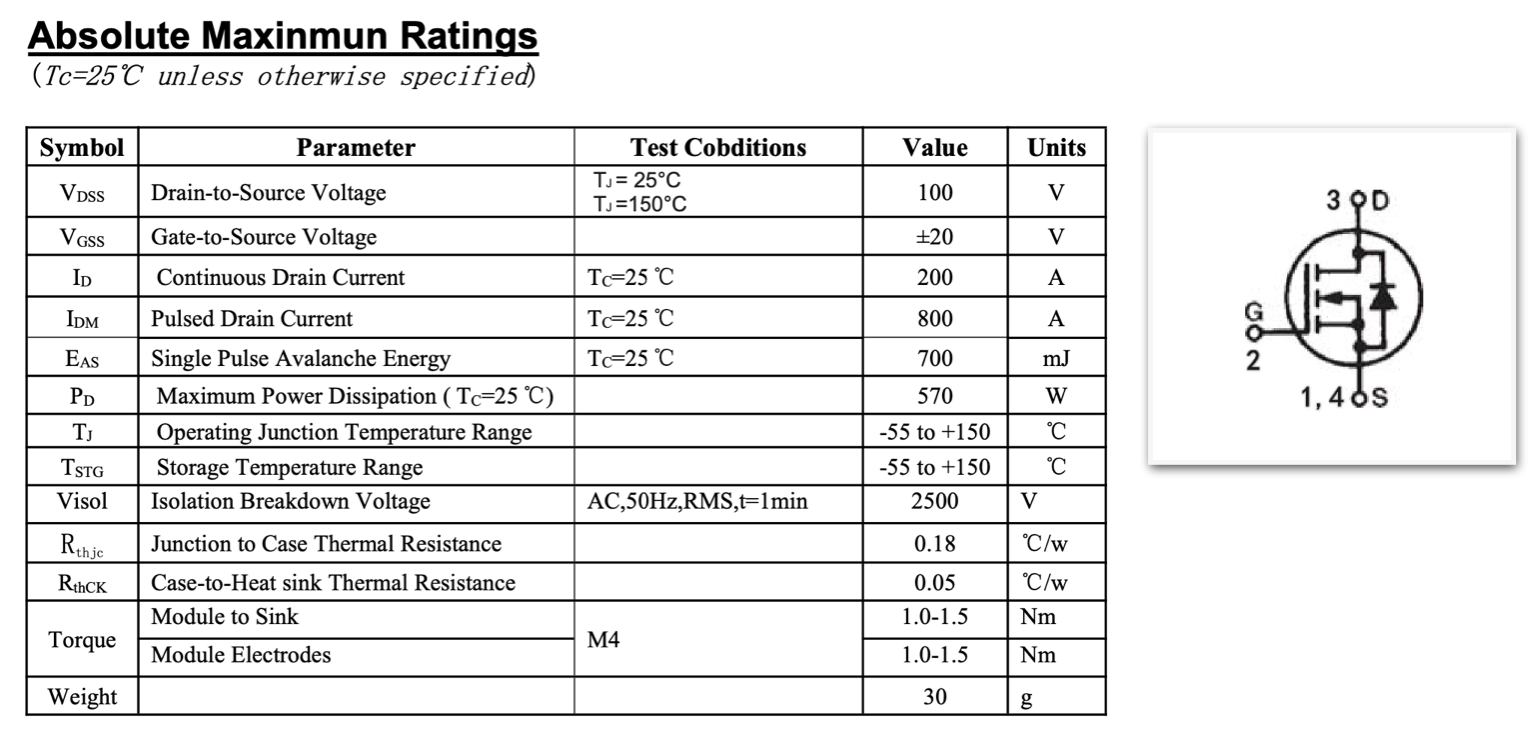

Maximum Ratings

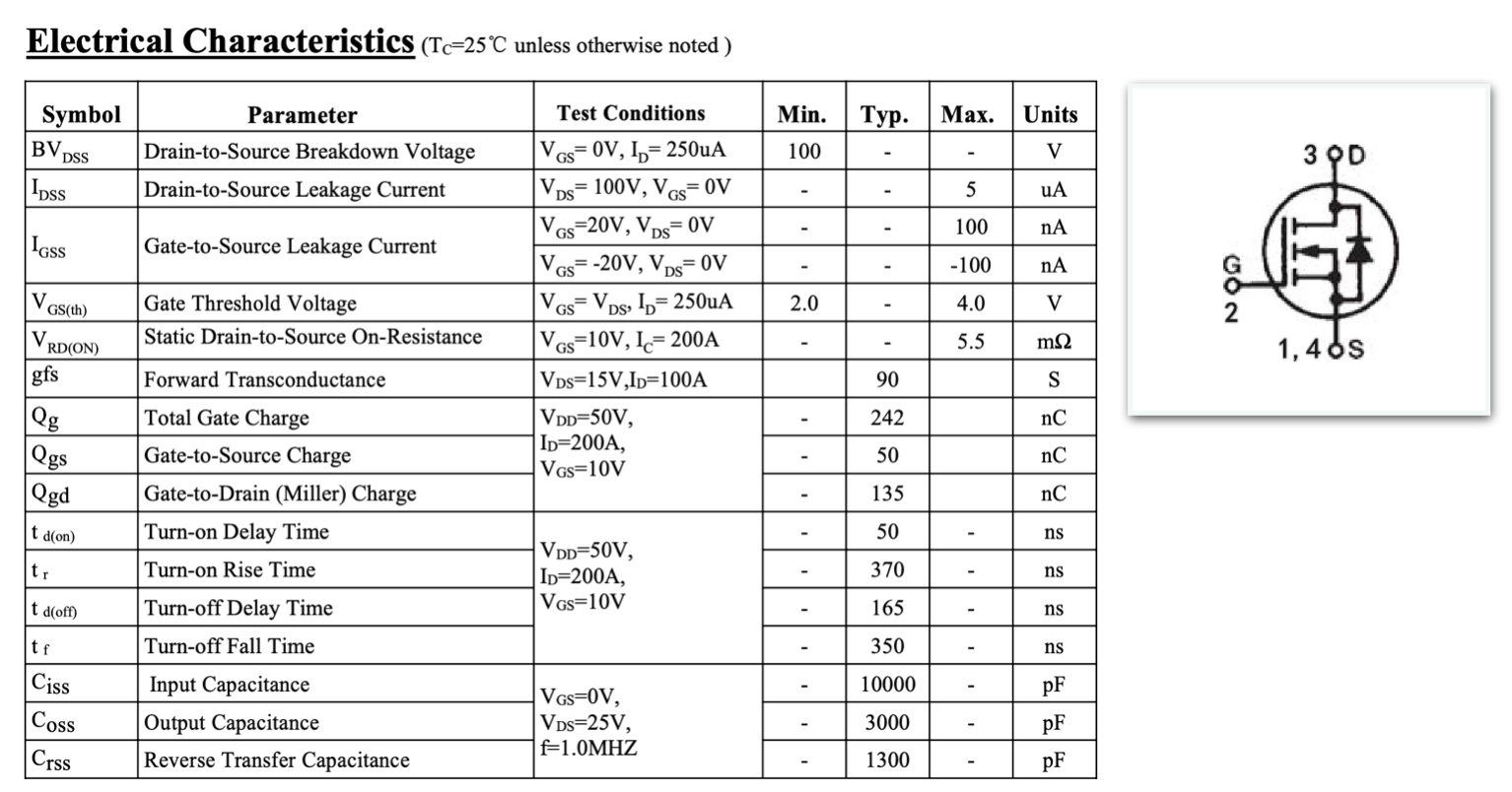

Electrical characteristics
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
