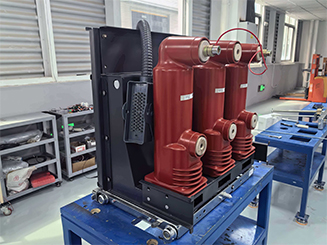

Technical Comparison: GRH-12 High-Speed VCB vs. Standard VS1 Vacuum Circuit Breaker

Date: 2026.03.26 Views: 166

The GRH-12 is a "high-speed upgraded" to the standard VS1, replacing spring drives with eddy current drives to achieve 10x faster opening speeds with higher precision and lower wear; it is a drop-in replacement specifically designed for terminal loads requiring millisecond-level fault clearing.

Comparison	GRH-12 High-Speed VCB	Standard VS1 Vacuum Circuit Breaker
Core Drive Mechanism	Eddy Current Drive: Specifically designed for ultra-fast opening.	Spring Operating Mechanism: Conventional electromagnetic/spring drive.
Opening Response Speed	< 5ms	50–80ms
Mechanical Structure	Direct-rod drive: Minimal wear, no complex transmission parts.	Multi-link transmission: Prone to wear with high transmission loss.
Mechanical Life	Up to 30,000 operations: Ideal for high-frequency switching.	Approx. 10,000–20,000 operations
3-Phase Synchronicity	≤ 2ms	≤ 5ms
Core Application Scenarios	Terminal loads (Transformers, Motors) requiring rapid fault isolation.	General distribution (Switchgear rooms) requiring short-time withstand current.
Retrofit Compatibility	Direct Replacement: No need to modify cabinet or wiring.	Model-specific: Cross-model replacement requires cabinet adjustment.
Opening Control Method	External Trigger: Follows relay protection commands with high synergy.	Autonomous: Combination of internal/external control.

Summary

Upgrade your VS1 without cabinet modifications or downtime: Replace standard 50ms response times with 5ms ultra-fast opening. With a 30,000-cycle lifespan that cuts maintenance by 80% and ≤2ms precision synchronization, you get superior stability and the most reliable protection for your critical terminal loads!

Prev:Performance Advantages of Embedded Pole Technology Vacuum Contactor Next:Stud Semiconductors vs. Capsule Semiconductors

Related Blog

2025-01-16

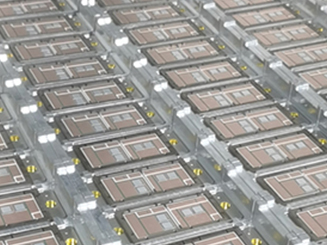

Sintering process in the chip of solid-state relays is of significant importance.

The use of sintering process in the chip of solid-state relays is of significant importance, primarily for the following reasons

2025-04-16

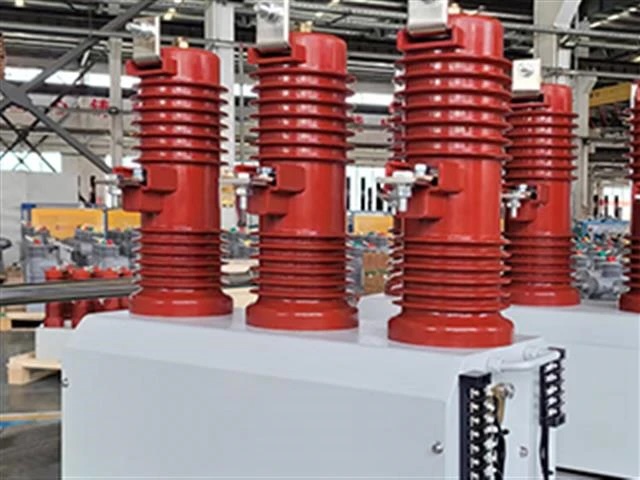

12KV Vacuum Contactor with Vacuum Circuit Breaker Integrated - Frequent Switching under Higher Breaking Capacity 31.5kA

12KV 630A to 1250A 31.5KA Vacuum Contactor + Vacuum Circuit Breaker, frequently switching under high breaking capacity

2025-05-21

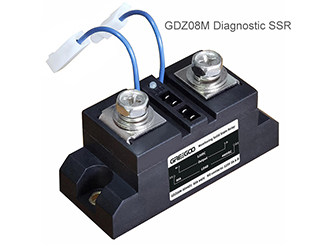

Exploring the Smartguard Solid State Relay: A Game-Changer for Industrial Automation
