Mini Puck Solid-State Relay: A Compact and Reliable High-Efficiency Switching Solution

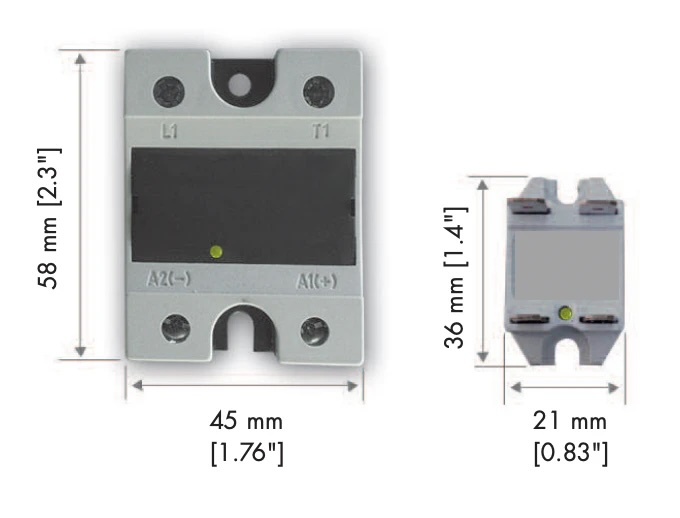

The GF1 mini puk solid-state relay is a compact product in Greegoo's solid-state switching solutions, taking up only 30% of the space of traditional solid-state relays. Despite its small size, it remains highly reliable. The GF1 uses back-to-back thyristors for switching, which are more durable than traditional triacs. It employs wire bonding technology to reduce mechanical and thermal stress on the output chip, thereby extending the product's lifespan. The GF1 is ideal for use in situations where space is limited and frequent switching of resistive loads is required.

Application

• Coffee machines
• Vending machines
• Kitchen appliances
• Temperature control units
• Climatic chambers
• Packaging machines

Features

• 1-phase AC solid state relay

• Zero cross switching or instant on switching

• Back to back thyristors for output switching

• Long lifetime through reduced stresses on output chips

• Ratings up to 280 VAC, 25 AAC @ 80°C (176°F)

• 5 VDC, 12 VDC or 24 VDC control voltage

• LED indication for control ON

• Integrated output overvoltage protection

• 100,000 cycle (endurance) tests

• Conformance to EN 60335-1 requirements

• Pre-attached thermal interface to SSR backplate
