Three phase press fit bridge rectifier

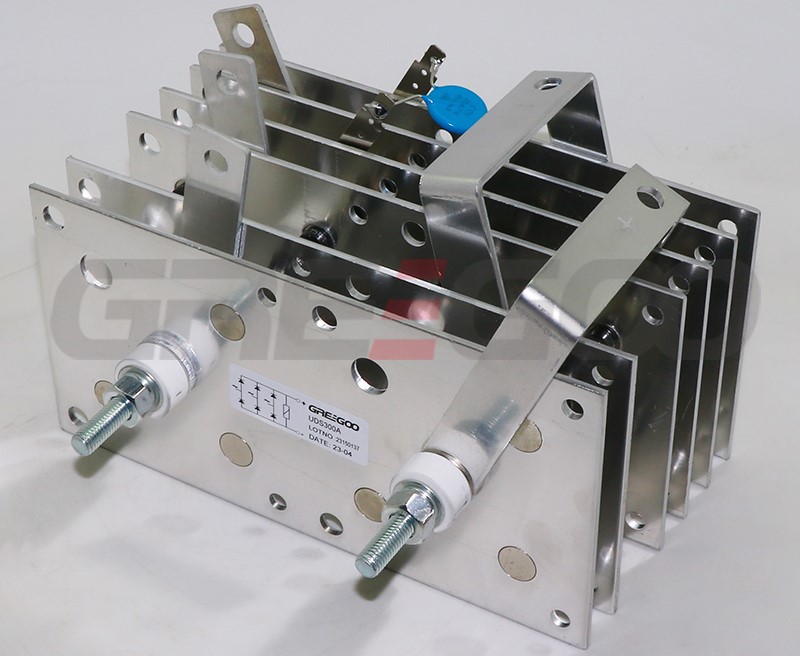

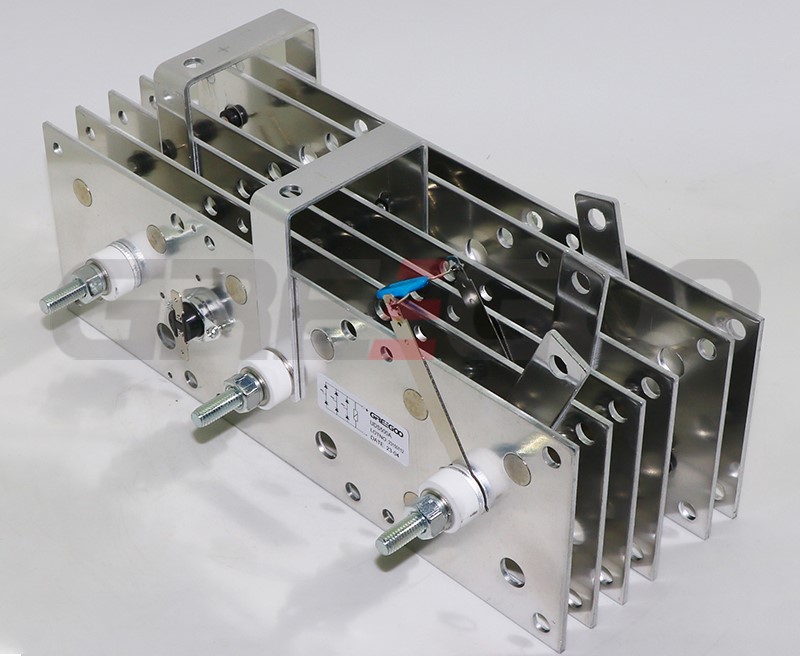

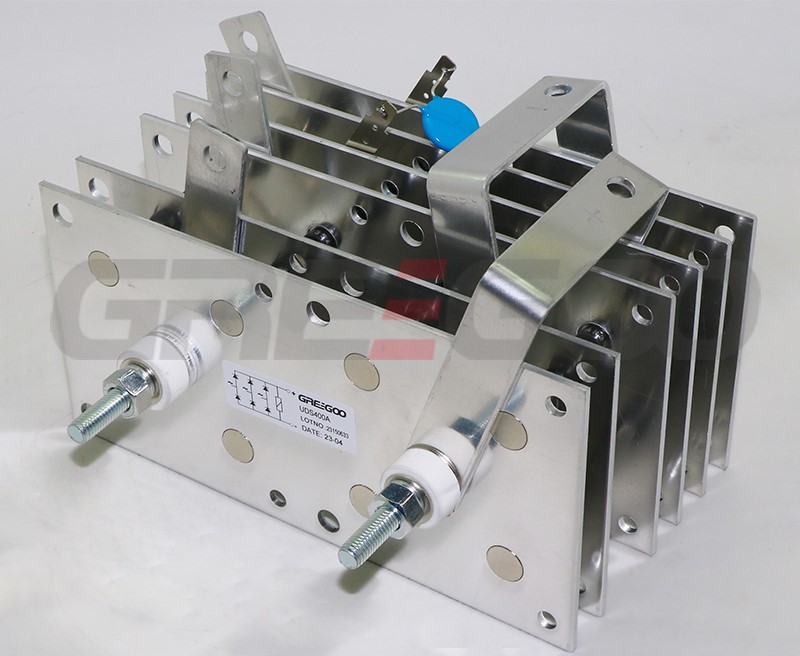

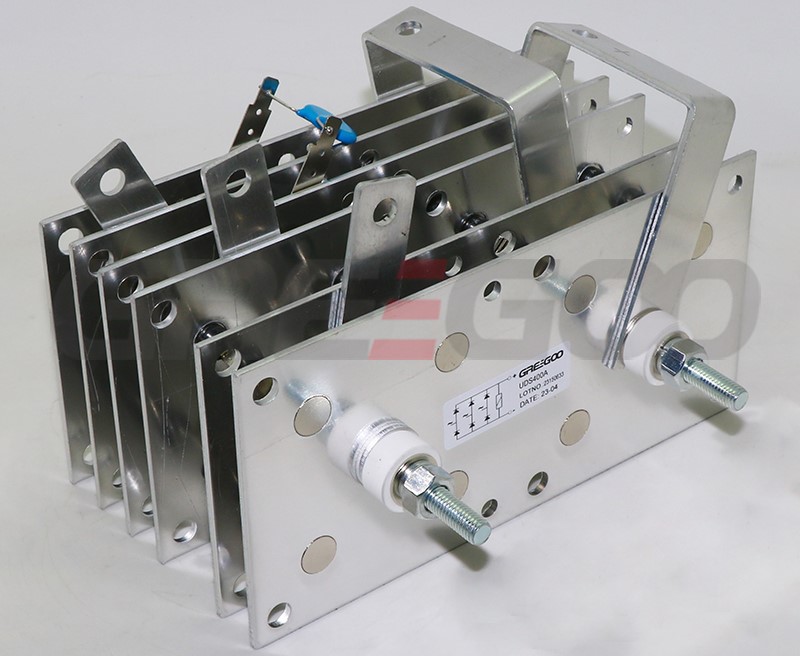

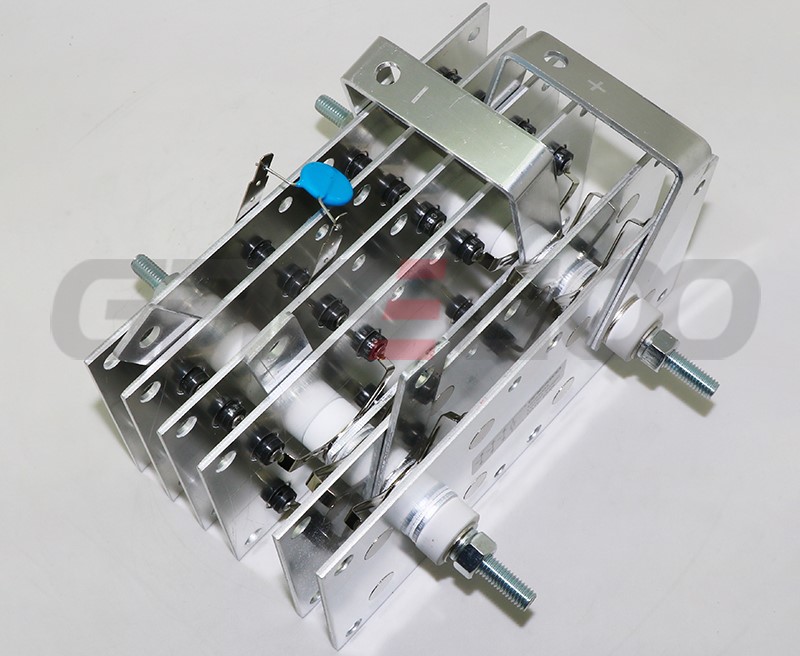

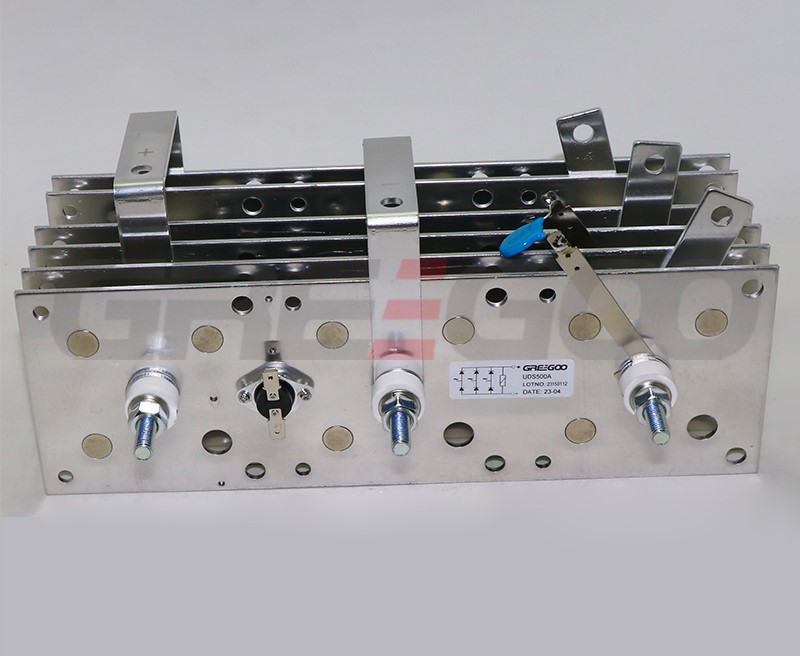

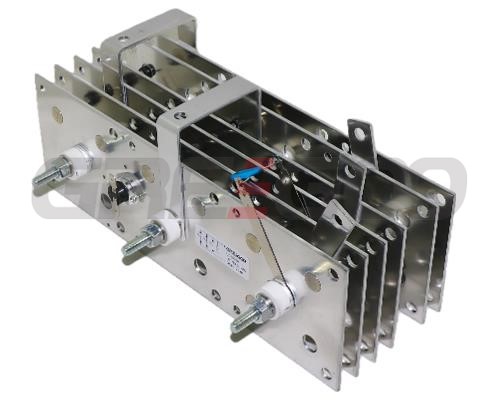

Three phase rectifier bridge assembly with press-fit diodes

Features

Rectifier diodes with heatsink

Low cost

High efficiency

Long term reliability

With thermostat & MOV components

Low forward voltage drop
High current capability & conductive package

Applications
Arc welding machine

Battery charger

DC power supplies

Type	I0A	VRRM	IRRM	VFM	@IFM	oC	Out lines
Tc=100oC	6/ms	V	mA	V	A		Fig

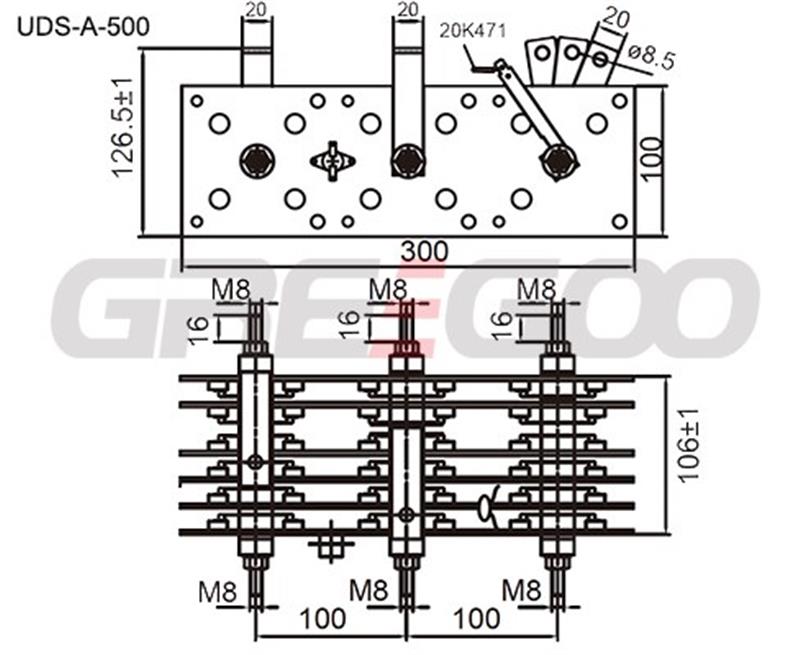

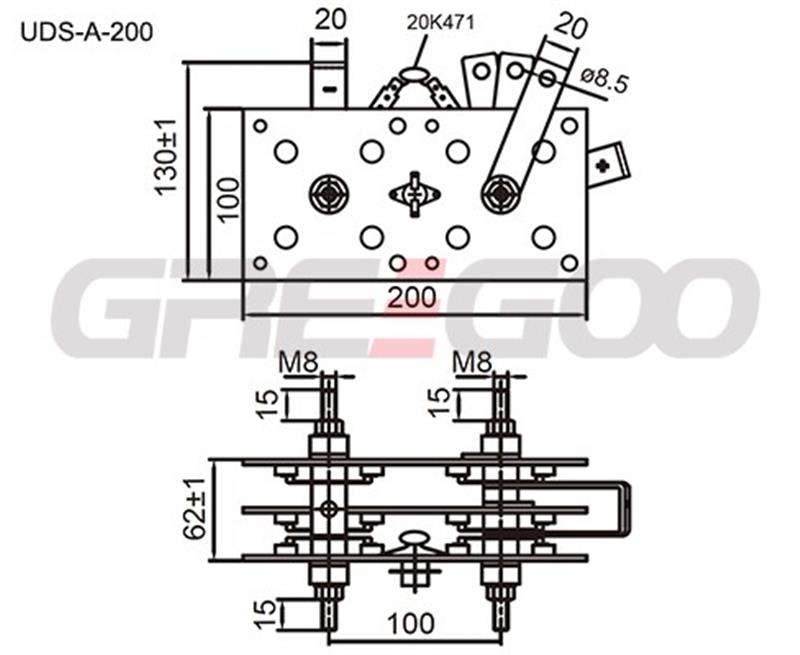

UDS-■A-200	200	≥400	≤3	1.3	200	80-85oC	35
UDS-■A-300	300	≥400	≤5	1.3	300	80-85oC	35
UDS-■A-400	400	≥400	≤6	1.3	400	80-85oC	35
UDS-■A-500	500	≥400	≤8	1.3	500	80-85oC	35
UDS-■B-200	200	≥400	≤3	1.3	200	60-65oC	36
UDS-■B-300	300	≥400	≤5	1.3	300	60-65oC	36
UDS-■C-200	200	≥400	≤3	1.3	200	50-55oC	37,38
UDS-■C-300	300	≥400	≤5	1.3	300	50-55oC	37,38
UDS-■C-400	400	≥400	≤6	1.3	400	50-55oC	37,38
UDS-■C-500	500	≥400	≤8	1.3	500	50-55oC	37,38

We have a good condition to meet your customized requirement, just send us the drawing of bridge rectifier stack, our most favorable offer will follow, you will surely benefit from increased profit with our quality press fit diode assembly.

Download

Press fit diode assembly (PDF)

Three phase full controlled bridge rectifier

500A to 1250A three phase full controlled bridge rectifier.

Blocking diode and dropper assembly

160A to 1440A blocking diode and dropper assembly

Single phase press fit diode

Single phase 200A to 500A press fit diode for welding machine assembly.
