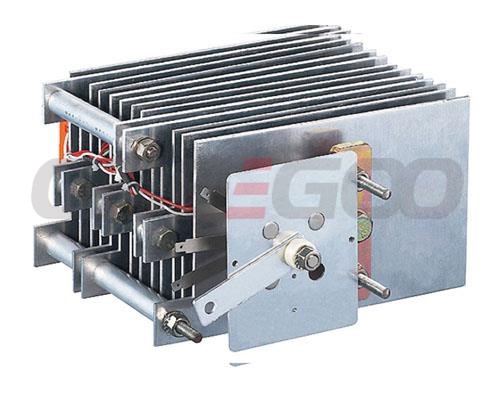

Three phase full controlled bridge rectifier

UTS and UFS series three phase full controlled bridge rectifier can rectify AC to adjustable DC, and applied in the adjustment and excitation of electric machine, voltage regulating source, DC stagnancy power supply, electroanalysis, electroplating, electric welding machine etc.


Typical Application

Model      DC output current DC output voltage Peak on-state voltage(forward) “A” shaped outline dimensions “B” shaped outline dimensions Duty cycle Heatsink quantity
  A V V (L×W×H mm) (L×W×H mm)
UTS1250        1250 300~1200 ≤1.8 490×280×235 330×280×426 60% On the electric welder 9
UFS1250 1250 300~1200 ≤1.8 490×280×235 330×280×428 9
UTS1000 1000 300~1200 ≤1.8 490×225×235 330×225×426 9
UFS1000 1000 300~1200 ≤1.8 490×225×235 330×225×426 9
UTS630 630 300~1200 ≤1.8 490×190×235 330×190×426 9
UFS630 630 300~1200 ≤1.8 490×190×235 330×190×426 9
UTS500a 500 300~1200 ≤1.8 490×180×235 330×180×426 9
UFS500 500 300~1200 ≤1.8 490×180×235 330×180×426 9
UTS500b 500 300~1200 ≤1.8 327×214×203   On the intermediate frequency power supply 7
