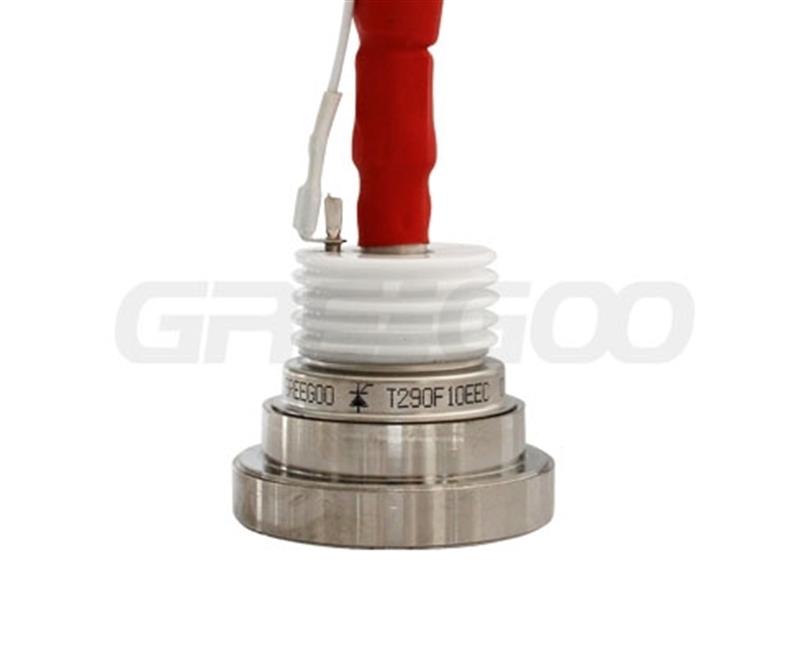

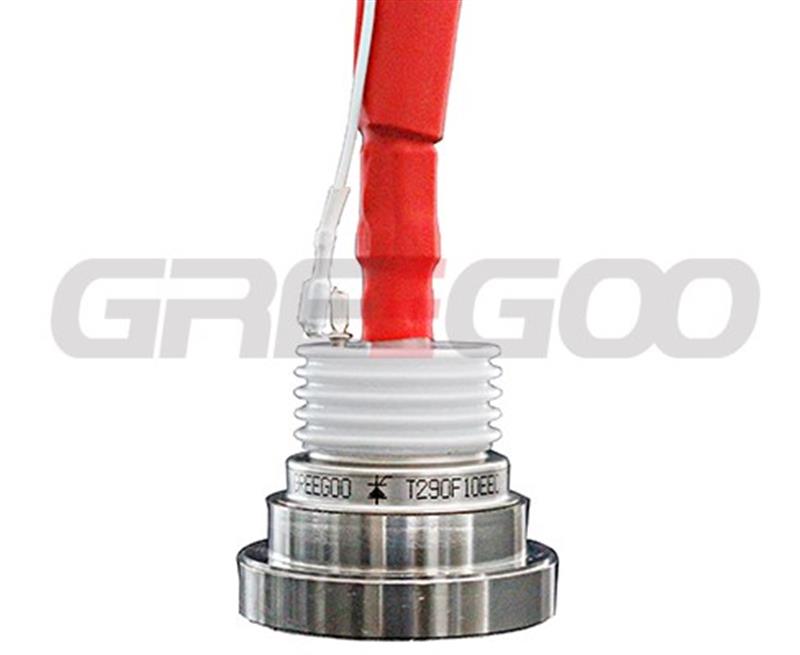

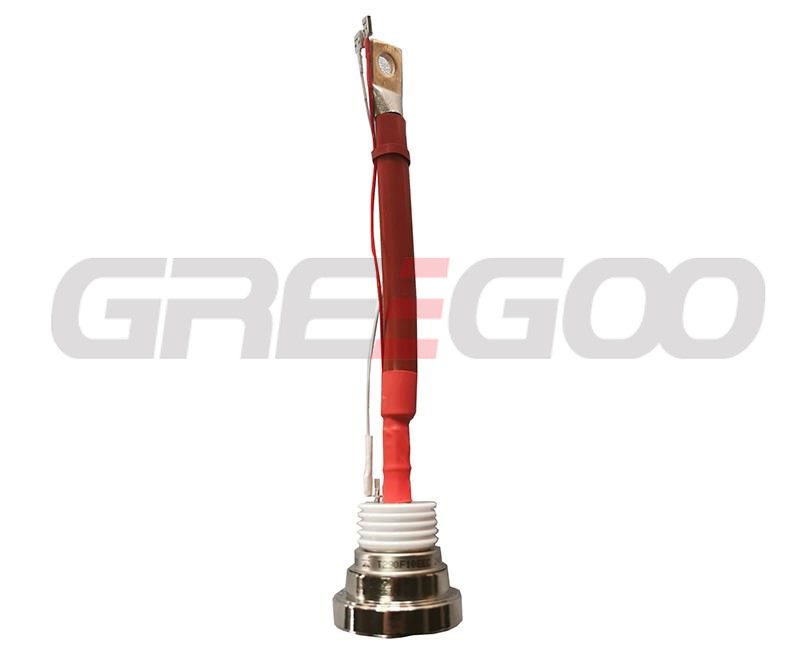

290A 800V to 1600V, stud ceremic type thyristor T290F.

■ Center amplifying gate
All diffused design
Guaranteed high dv/dt
Guaranteed high di/dt
Low thermal impedance
High speed performance

Typical Applications
■ Induction heating
■ Choppers
■ force-commutated converters

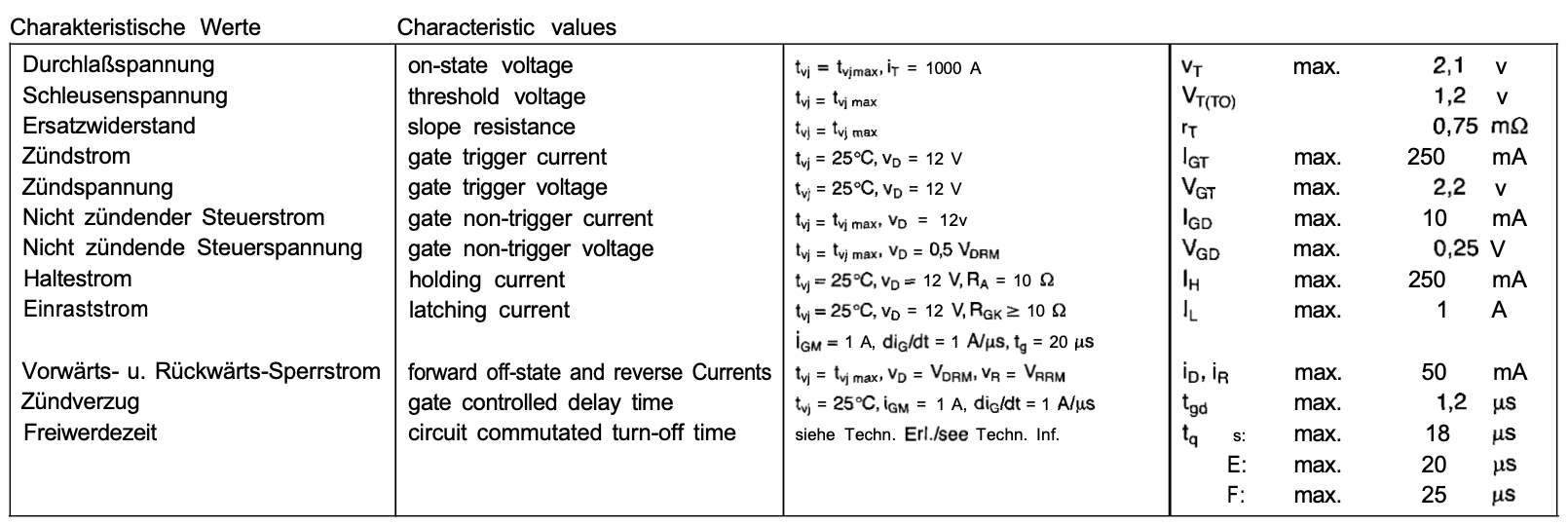

T290f characteristic value

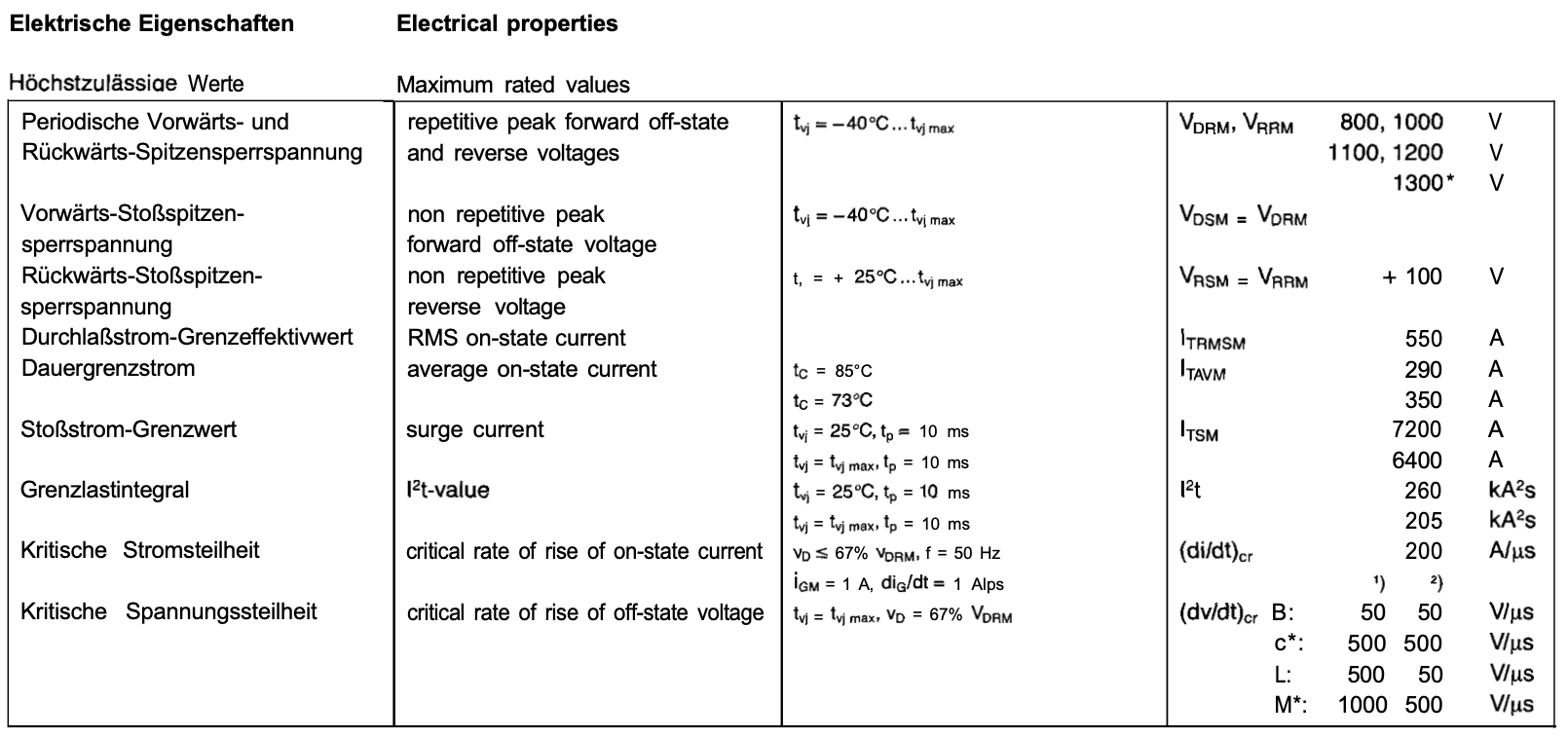

t290F thyristor rated value

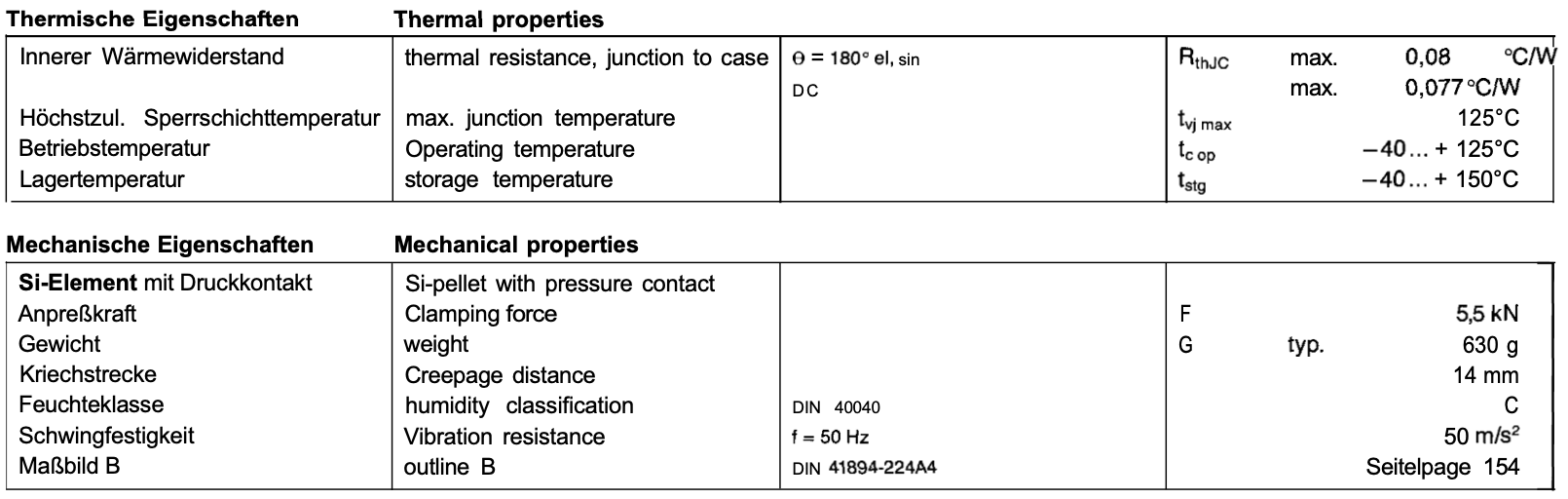

t290f thermal properties

t290f mechanical properties
