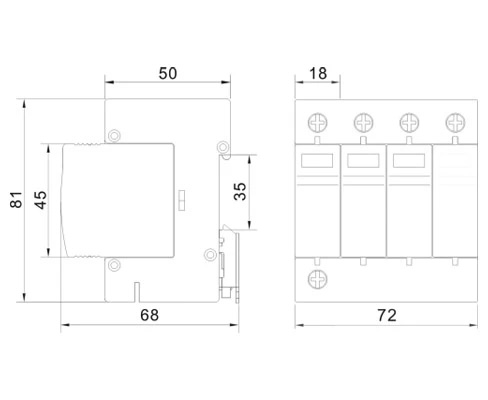

T2 BY7-40/3+1-385X surge protective device

■ Product Overview

The BY7-40/3 1-385 AC surge protector is designed based on IEC lightning protection requirements and combined with the application environment of the AC power system. It features high-energy MOV chips with nanosecond response speeds. It provides a reliable voltage protection level, strong surge current discharge capability, and safe overload characteristics, offering protection against lightning, surges, and power grid purification to ensure functional safety and reliability.

■ Application Scope

Mainly used for lightning protection of various electrical equipment such as distribution boxes in AC power systems.

■ Performance Features

· Voltage-limiting design that meets Type 2 test requirements;

· Various combination methods to achieve differential mode and common mode protection functions;

· High-energy MOVs with low residual voltage and high voltage protection level;

· The disconnector has an arc-extinguishing device, with strong overload capacity;

· High continuous working voltage and high current capacity;

· Fast response speed without follow current;

· DIN rail mounting;

· Enhanced nylon enclosure with IP20 protection level;

· Compact size, convenient for installation and use.
