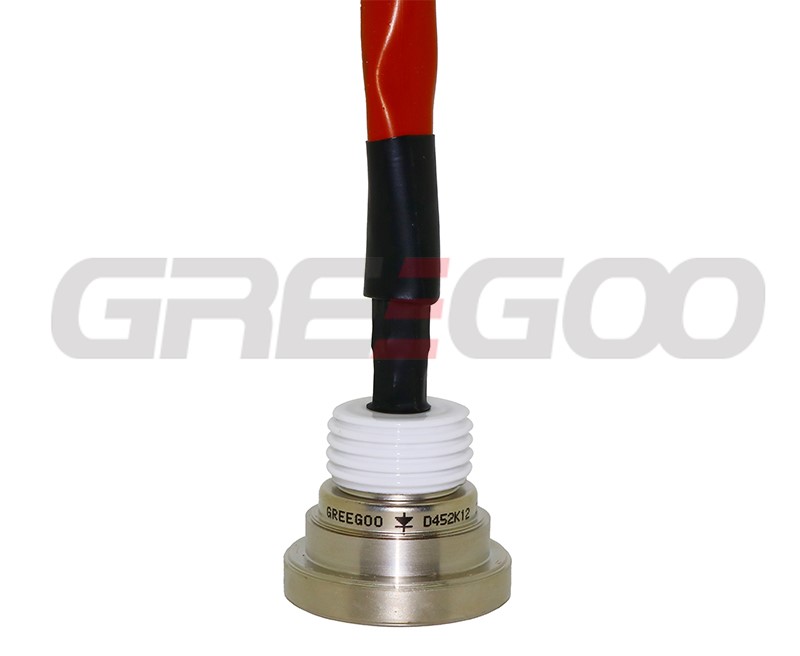

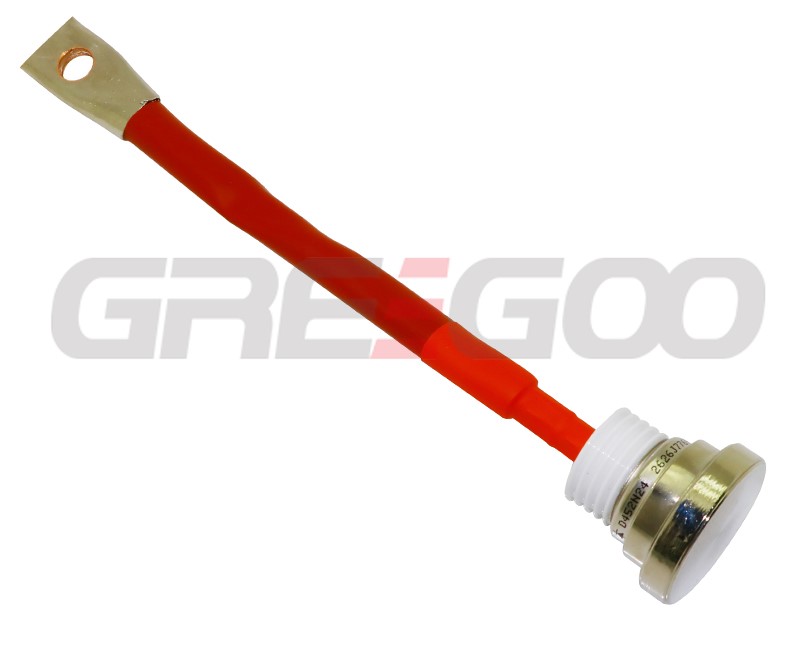

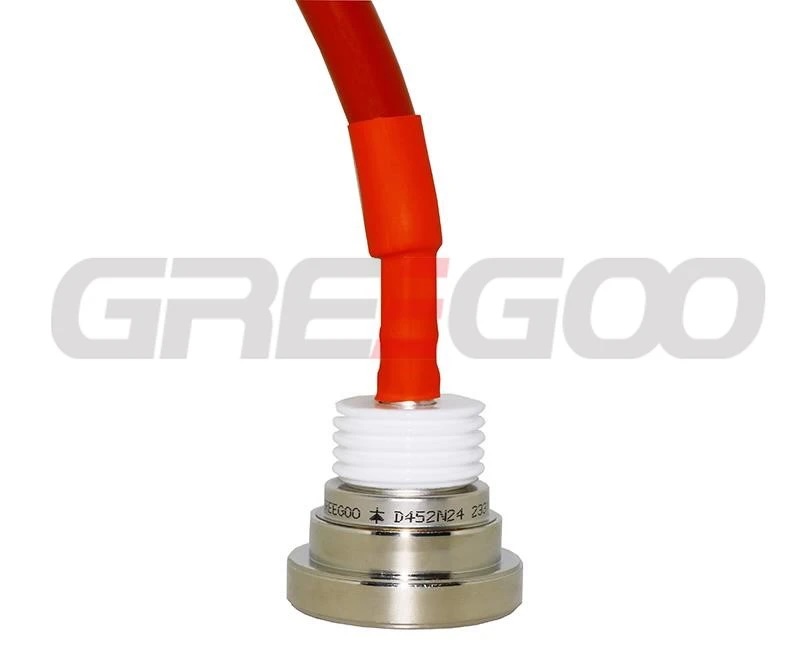

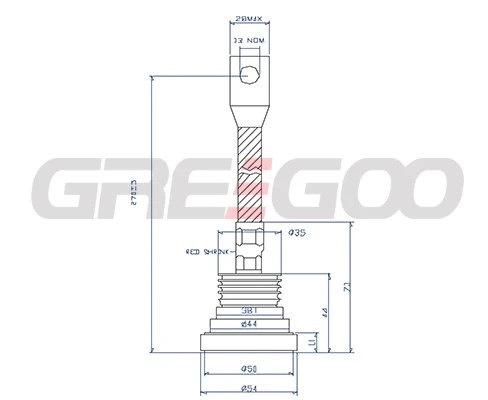

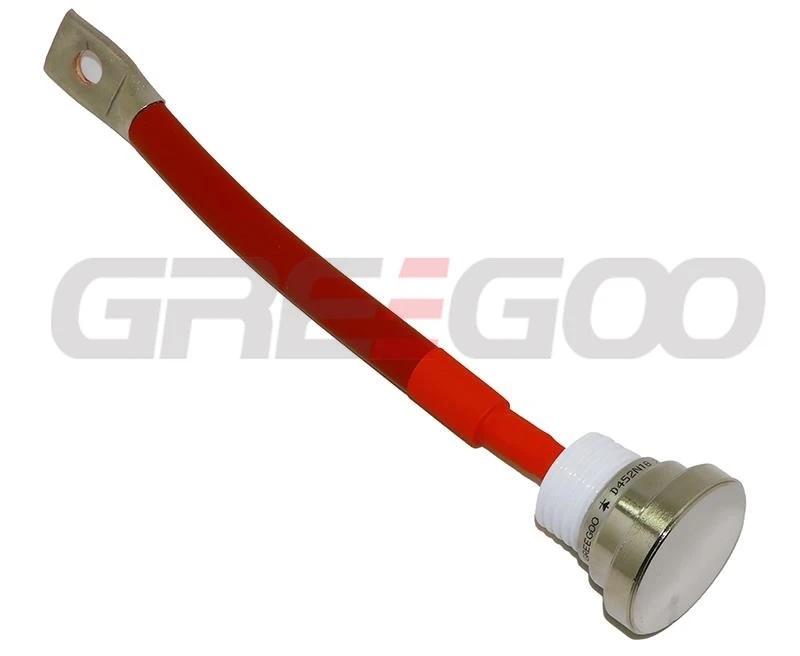

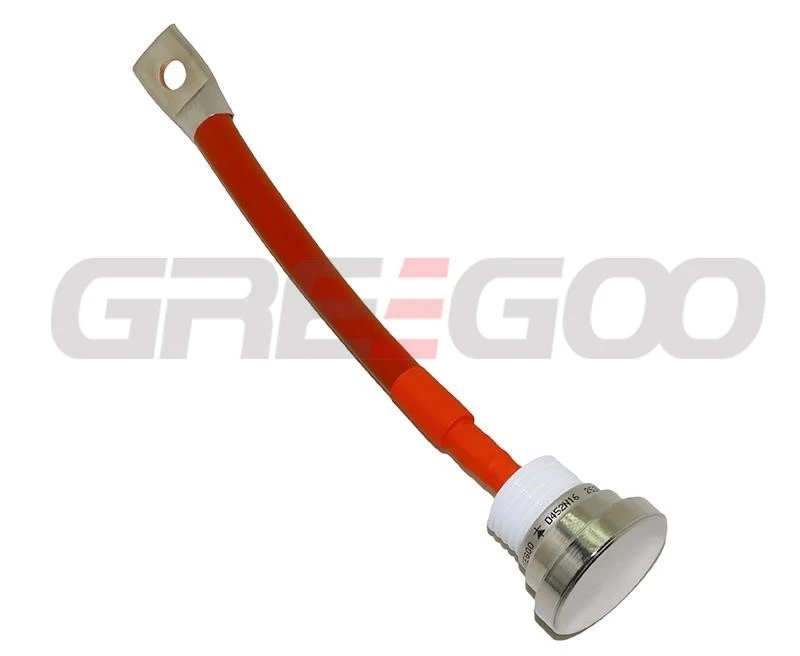

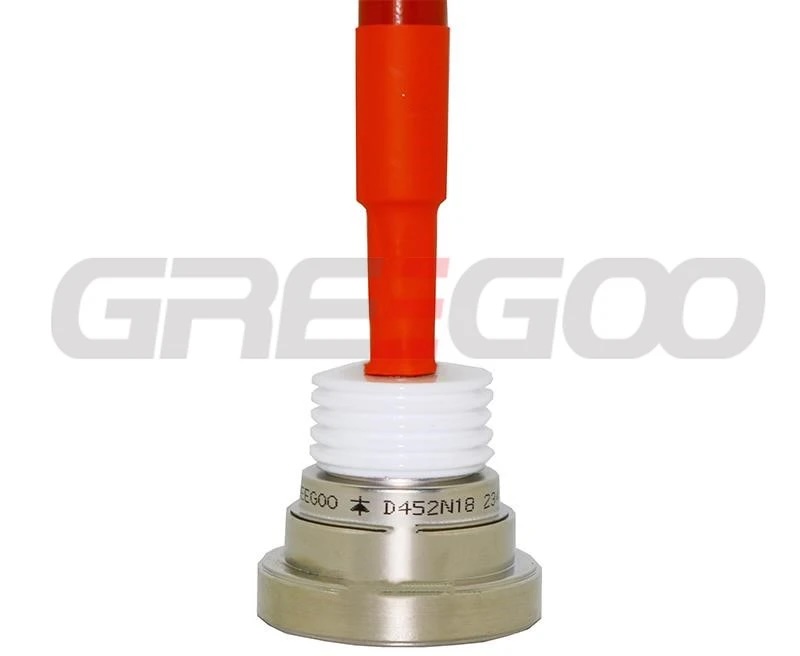

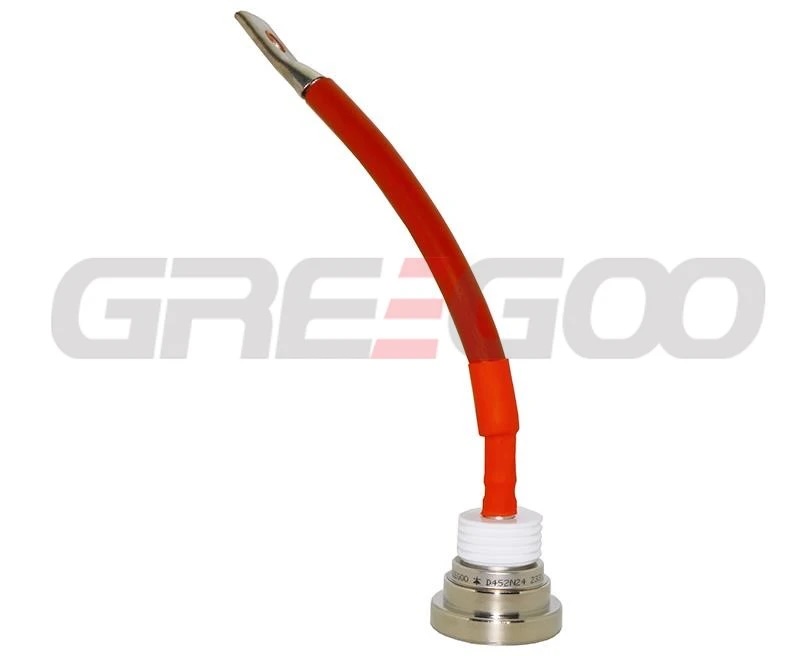

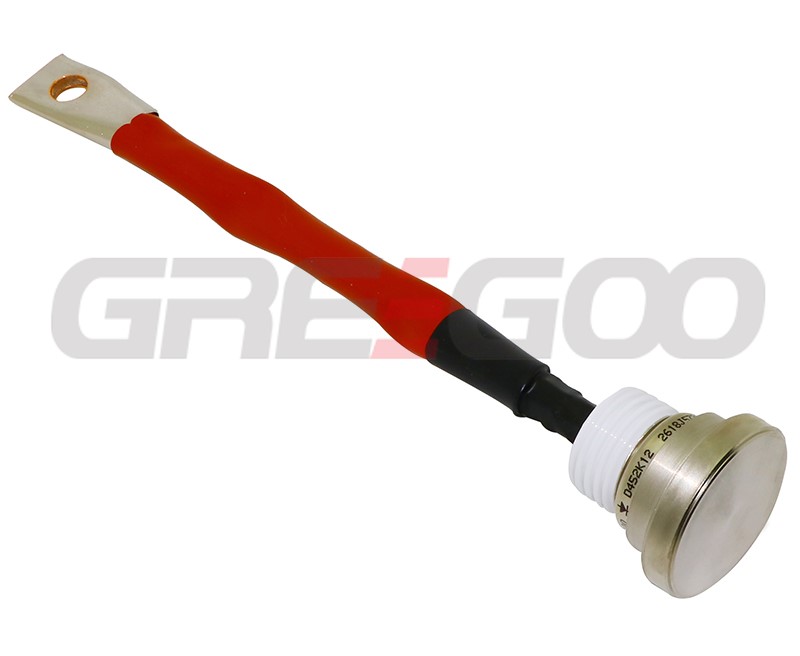

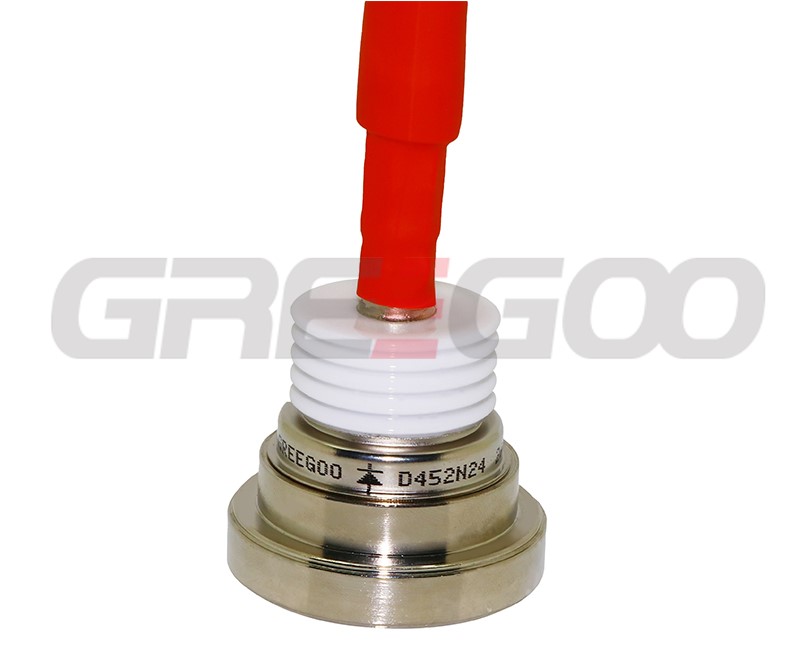

Standard Recovery Diodes (D452N)
Standard Recovery Diodes (D452N)
Features
- Wide current range
- High voltage ratings up to 4500V
- High surge current capabilities
- Stud cathode and stud anode version
- Standard JEDEC types
- RoHS Compliant
Typical Applications
- Converters
- Power supplies
- High power drives
- Auxiliary system supplies for traction applications
Ordering Information Table
| D | 452 | N | 12 |
| 1 | 2 | 3 | 4 |
1 - Diode
2 - Corporation code Average Forward Current: IFAV
3 - N = Stud Reverse Polarity (Anode to Stud); - K/R = Stud Normal Polarity (Cathode to Stud)
4 - Voltage code: Code x 100 = VRRM
| Type number | Voltage Code | VRRM, maximum repetitive peak reverse voltage |
VRSM , maximum non- repetitive peak rev. voltage |
IRRM max. @ TJ = TJ max. |
| V | V | mA | ||
| D452N04, D452K04, D452R04 | 04 | 400 | 500 | 20 |
| D452N12, D452K12, D452R12 | 12 | 1200 | 1300 | 20 |
| D452N16, D452K16, D452R16 | 16 | 1600 | 1700 | 20 |
| D452N18, D452K18, D452R18 | 18 | 1800 | 1900 | 20 |
| D452N24, D452K24, D452R24 | 24 | 2400 | 2500 | 20 |
| D452N32, D452K32, D452R32 | 32 | 3200 | 3300 | 20 |
| D452N40, D452K40, D452R40 | 40 | 4000 | 4100 | 20 |
| Parameters | D452N(K/R).. | Units | |
| IF(AV) | 450 | A | |
| @ TC | 85 | oC | |
| IF(RMS) | 710 | A | |
| IFSM | @ 50Hz | 13500 | A |
| @ 60Hz | 14500 | A | |
| I2t | @ 50Hz | 900 | KA2S |
| @ 60Hz | 850 | KA2S | |
| VRRM | range | 400 to 4000 | V |
| TJ | -40 to 160 | oC | |
