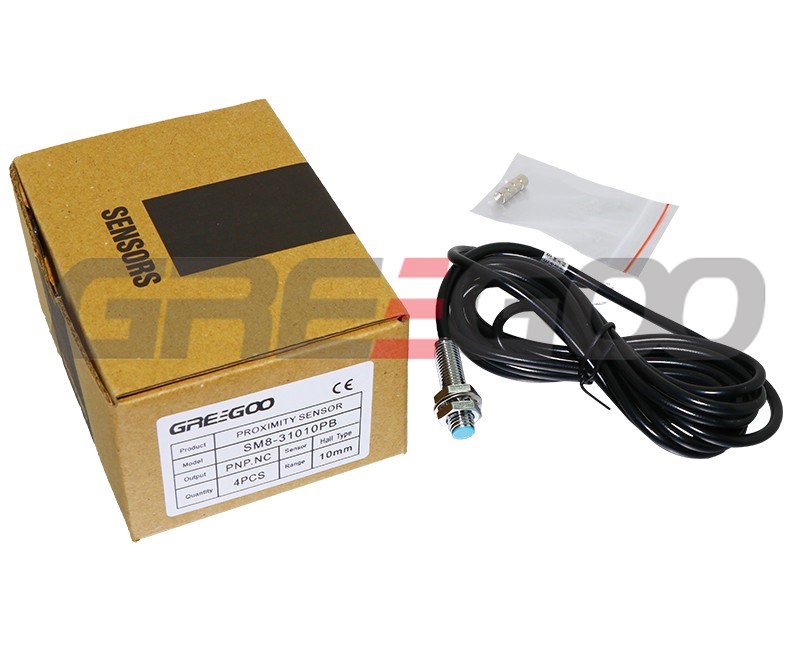

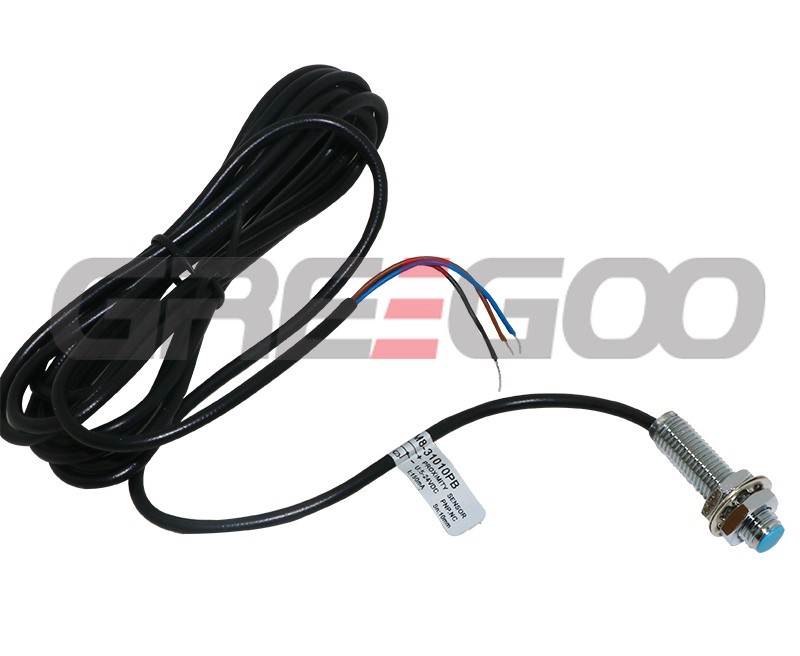

SM8 Hall sensor

Outward appearance code:

SM8

Detection distance:

10mm

Power voltage:

5~24VDC

Detectable object:

Permanent magnet

Output low level voltage:

200mV

Output high level voltage:

0.1uA

Power current:

8mA

ON-OFF frequency:

320KHz

Working point magnetic density:

22mT

Shell material:

Metal

Ambient temperature:

-25°C~70°C

Protection grade:

IP67

NPN NO

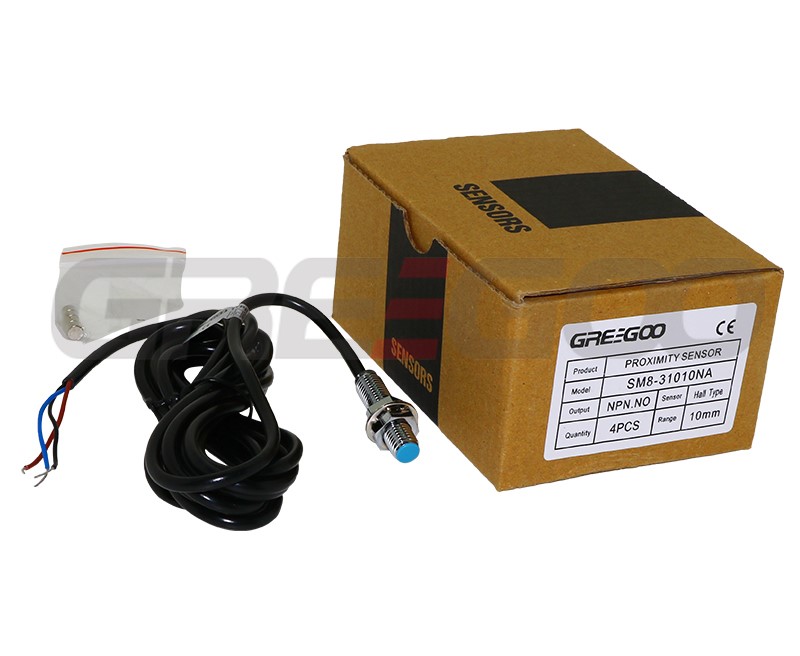

SM8-31010NA

PNP NO

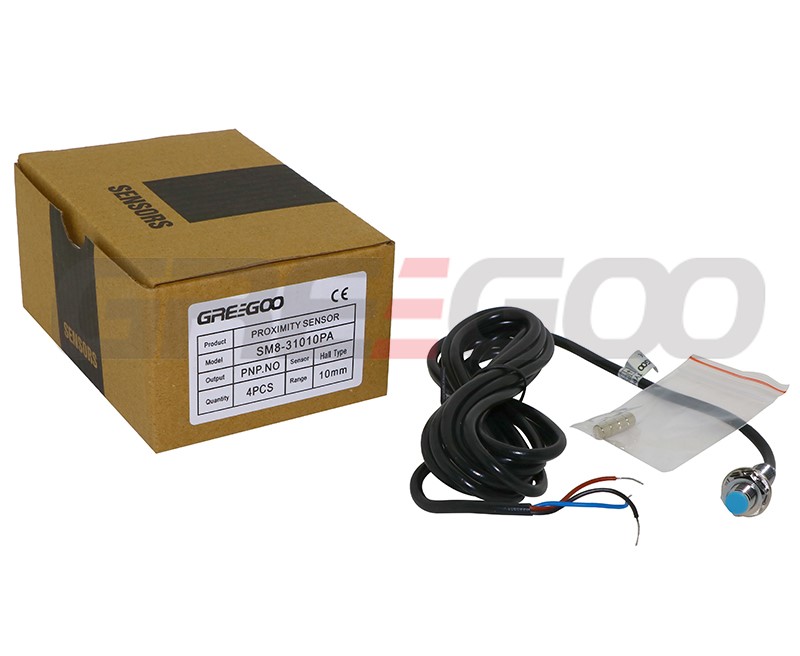

SM8-31010PA
