Capacitive sensor CM35
Home Products Industrial Automation SensorCapacitive Sensor & Hall SensorCapacitive sensor CM35
Product Details
Capacitive sensor CM35
| Model NO. | Sensing distance | Operating voltage | Output | Mounting method | |
| Form | Mode | ||||
| CM35-3025NA | 0 -25mm | DC6-36V | NPN | NO | Non-flush |
| CM35-3025NB | 0 -25mm | DC6-36V | NPN | NC | Non-flush |

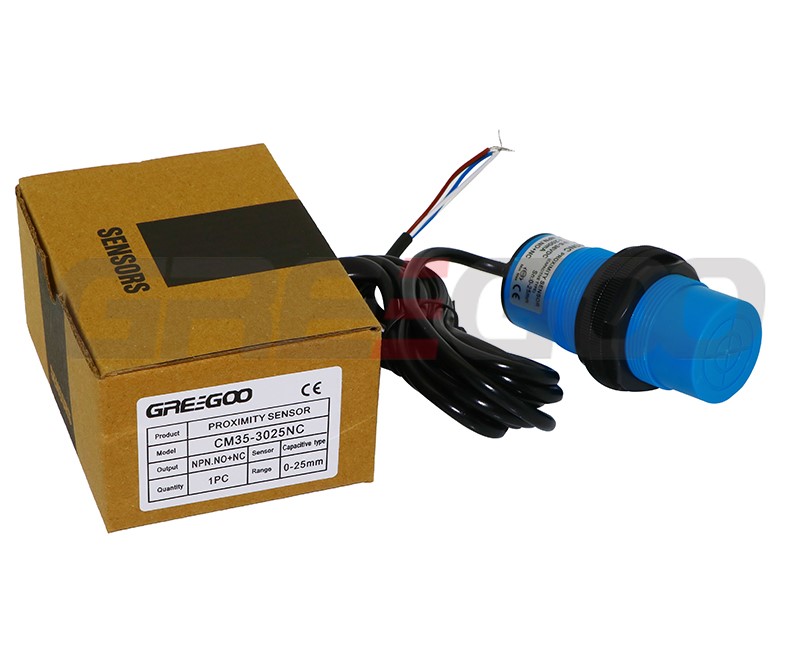

| CM35-3025NC | 0 -25mm | DC6-36V | NPN | NO NC | Non-flush |
| CM35-3025PA | 0 -25mm | DC6-36V | PNP | NO | Non-flush |
| CM35-3025PB | 0 -25mm | DC6-36V | PNP | NC | Non-flush |

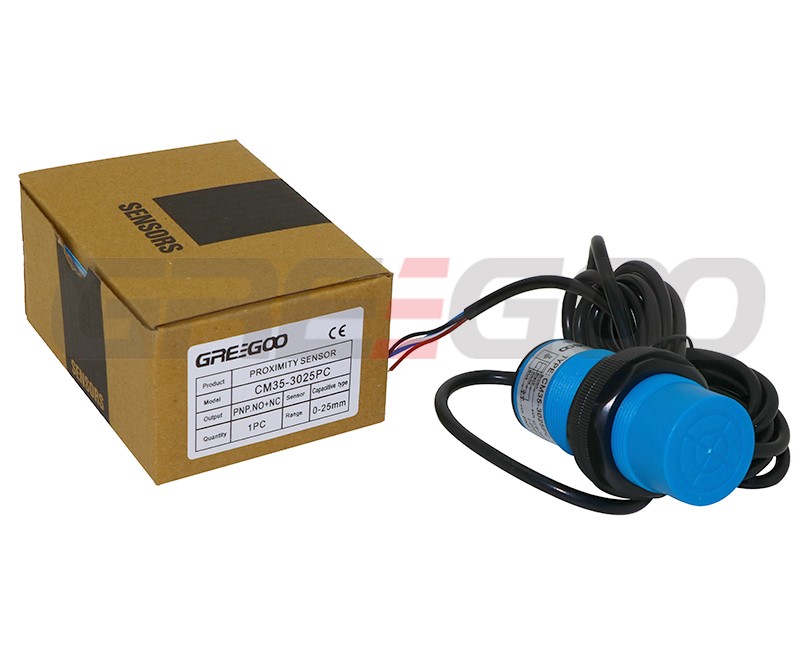

| CM35-3025PC | 0 -25mm | DC6-36V | PNP | NO NC | Non-flush |

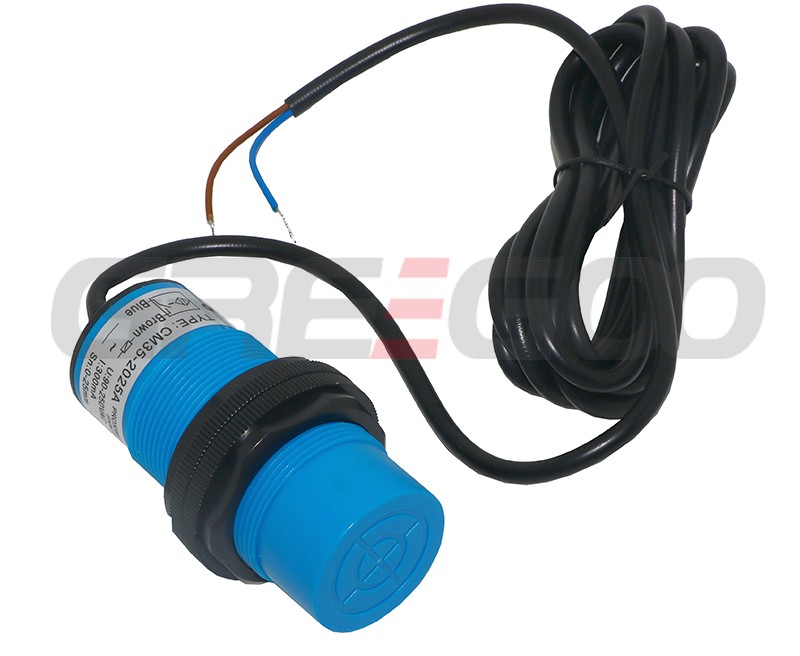

| CM35 -2025A | 0 -25mm | AC90-250V | SCR | NO | Non-flush |
| CM35-2025B | 0 -25mm | AC90-250V | SCR | NC | Non-flush |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
