SKKE series Single Diode Module
Home Products Thyristor Diode ModuleThyristor Diode Modules (SKK series)SKKE series Single Diode Module
SKKE series Single Diode Module

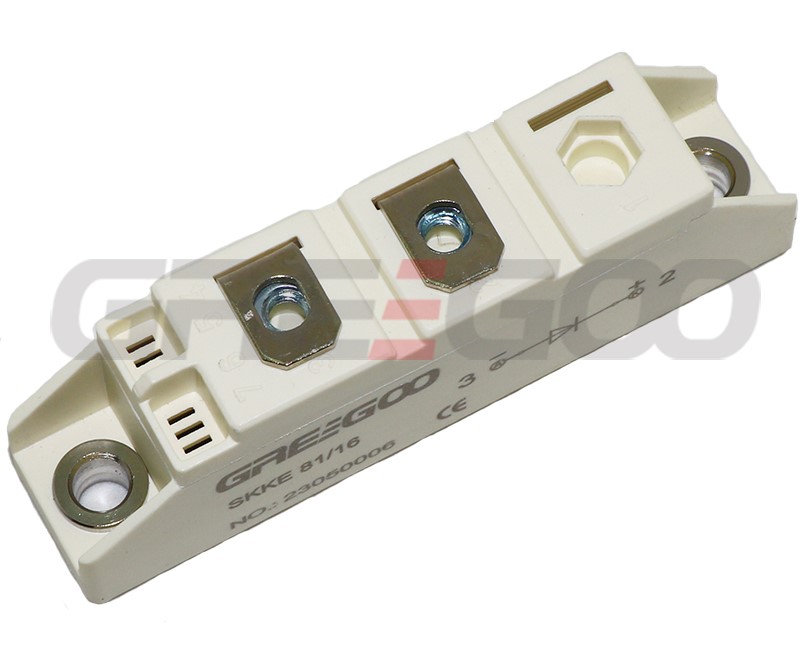

Diode Modules SKKE have a monolithic design with a single topology of semiconductors (one switch): single diode (SKKE). Used in DC and AC circuits with loads to 1360A and reverse pulse voltages up to 2200V.
The modules are designed and assembled in high reliable pressure contact and in solder bond technology which addresses the specific requirements of cost and performance optimized applications.
Diode Modules are used in various power equipment - power and control units, electrical drives, power regulators, AC regulators, converters, controllers of blast furnaces or chemical processes, welding equipment, and as rectifiers for AC converters.
Frame | Type | IT(AVM | VRRM VDRM |
ITSM IFSM |
I²t | VT(TO) | rT | Rth0-c) | W | Package, Dimensions |
A | V | A | A².s | V | mQ | K/W | g | mm | ||
SKKE81 | SKKE81/08 | 82 | 800- 1600 |
1750 | 15000 | 0.85 | 1.8 | 0.4 | 95 | Package 1 93x20x30 |
SKKE81/12 | ||||||||||
SKKE81/16 | ||||||||||
SKKE120 | SKKE120F17 | 120 | 1700 | 1800 | 16200 | 1.5 | 4.5 | 0.2 | 160 | Package 2 94x34x30 |
SKKE162 | SKKE162/08 | 195 | 800- 2200 |
5000 | 125000 | 0.85 | 1.2 | 0.18 | 165 | Package 2 94x34x30 |
SKKE162/12 | ||||||||||
SKKE162/14 | ||||||||||
SKKE162/16 | ||||||||||
SKKE162/18 | ||||||||||
SKKE162/22H4 | ||||||||||
SKKE212 | SKKE212/16 H2 | 213 | 1600 | 5500 | 151250 | 0.75 | 1.05 | 0.05 | 165 | Package 2 94x34x30 |
SKKE290 | SKKE290F06 | 290 | 600 | 6000 | 180000 | 0.9 | 1.2 | 0.08 | 160 | Package 2 94x34x30 |
SKKE301 | SKKE301F12 | 300 | 1200 | 3600 | 64800 | 1.2 | 2.75 | 0.11 | 160 | Package 2 94x34x30 |
SKKE310 | SKKE310F12 | 310 | 1200 | 5500 | 151000 | 1.2 | 1.9 | 0.08 | 250 | Package 2 94x34x30 |
SKKE330 | SKKE330F17 | 330 | 1700 | 5200 | 135000 | 1.5 | 1.9 | 0.079 | 330 | Package 4 106x62x37 |
SKKE380 | SKKE380/12 | 380 | 1200- 1600 |
10000 | 500000 | 0.8 | 0.35 | 0.11 | 550 | Package 3 115x50x52 |
SKKE380/16 | ||||||||||
SKKE600 | SKKE600/12 | 600 | 1200- 2200 |
18000 | 1805000 | 0.75 | 0.25 | 0.07 | 840 | Package 4 101x50x52 |
SKKE600/16 | ||||||||||
SKKE600/20H4 | ||||||||||
SKKE600/22H4 | ||||||||||
SKKE600 | SKKE600F12 | 600 | 1200 | 5800 | 168200 | 1.2 | 1.9 | 0.038 | 330 | Package 4 106x62x37 |
SKKE800 | SKKE800F17 | 800 | 1700 | 3712 | 68895 | 1.08 | 1.34 | 0.058 | 330 | Package 4 106x62x37 |
SKKE1201 | SKKE1201/22 | 1360 | 2200 | 35000 | 6125000 | 0.75 | 0.073 | 0.0466 | 1950 | Package 6 176x70x90 |
