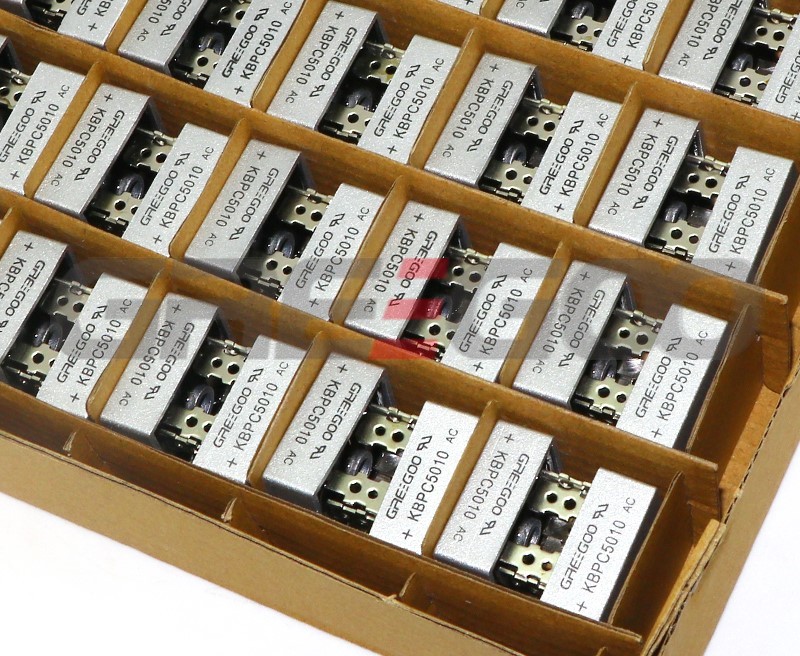

Single phase bridge rectifier KBPC 50A
Home Products Diode Bridge RectifierSingle phase bridge rectifier (Fast-on type)Single phase bridge rectifier KBPC 50A
Product Details
Single phase bridge rectifier KBPC 50A
| Type | V RRM | I O | @T | I FSM | I R | V FM | @I FM |
| V | A | ℃ | A | uA | V | A | |

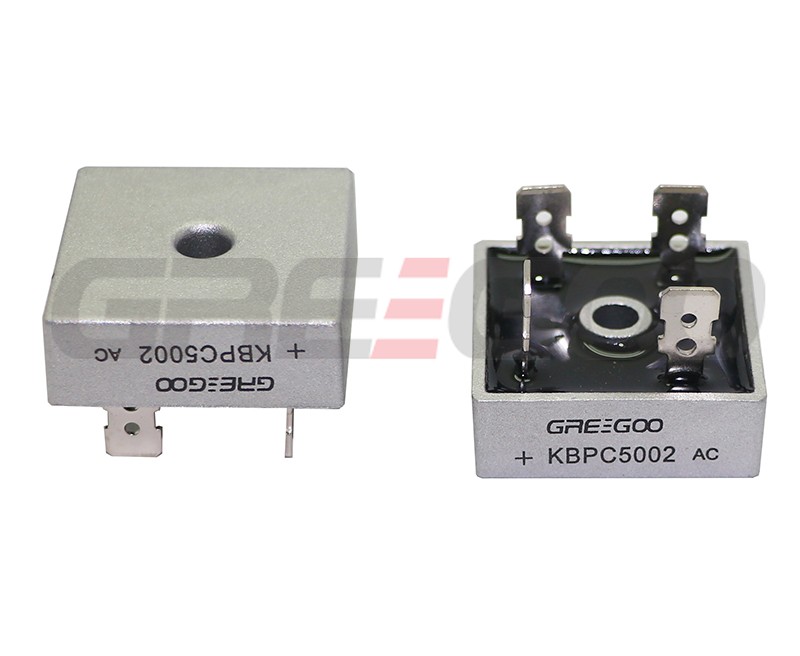

| KBPC5002 | 200 | 50 | 55 | 500 | 10 | 1.2 | 25 |
| KBPC5006 | 600 | 50 | 55 | 500 | 10 | 1.2 | 25 |

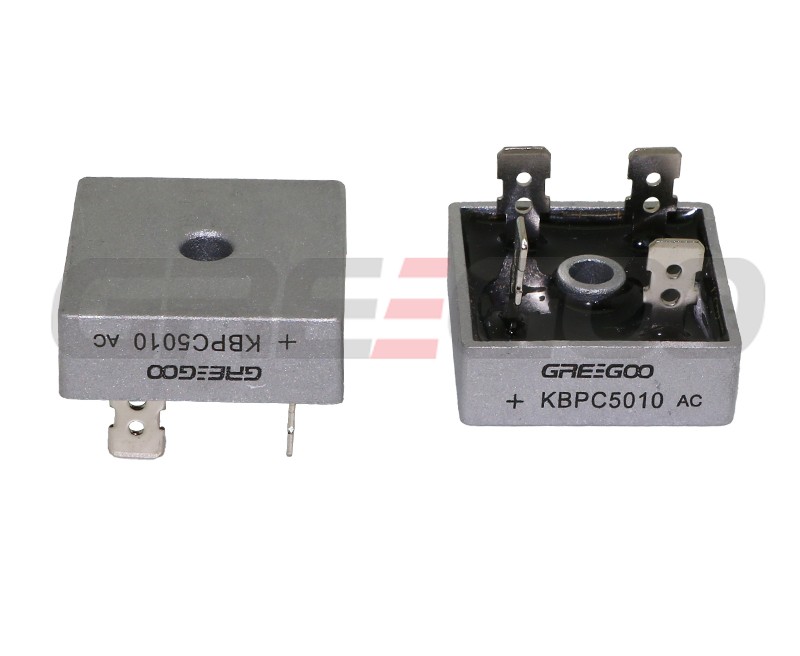

| KBPC5010 | 1000 | 50 | 55 | 500 | 10 | 1.2 | 25 |
