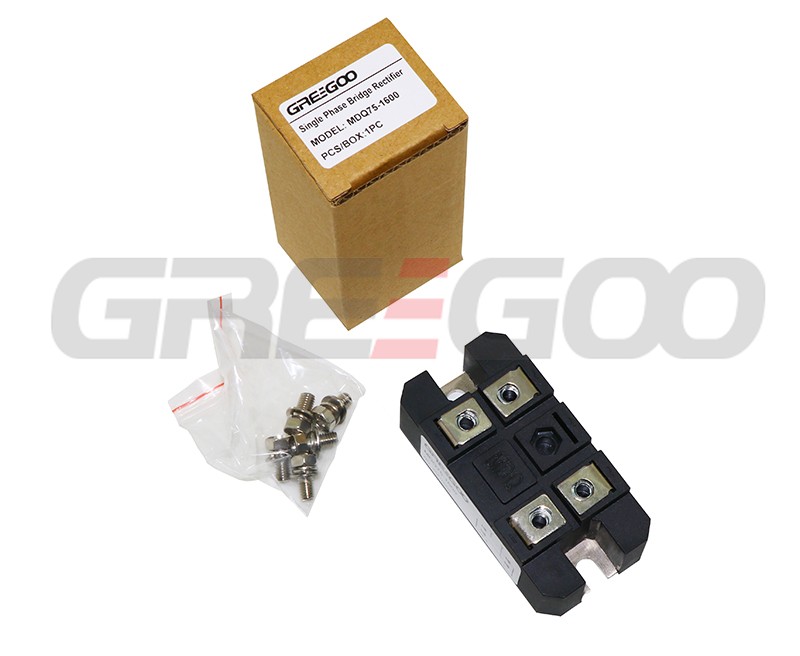

MDQ75-1600--full -controlled-bridge-rectifier-Packing

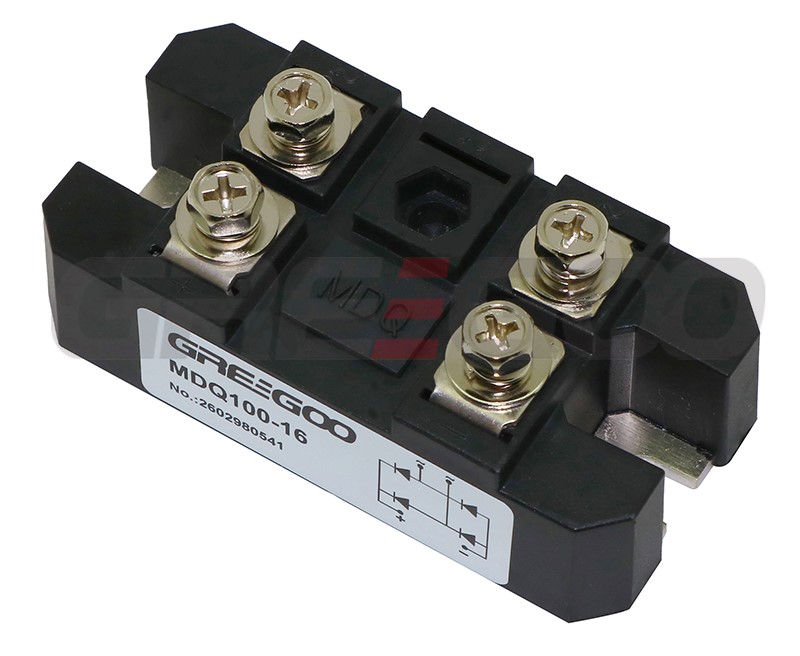

MDQ100-16 full controlled bridge rectifier

Product Details

Single phase and three phase full controlled bridge rectifier 25A to 1600A

Type	VDRM	ID	TC	IFSM	I2t	VT0	RT0	VISO	IRRM	VFM	IFM	Rth(c-h)	Rth(j-c)
	VRRM			ITSM	(A2S)	VF0	RF0	/1min	IDRM	VTM	ITM
	(V)	(A)	(℃)	(A)		(V)	(mΩ)	(V)	(mA)	(V)	(A)	（℃/W）	（℃/W）
MDQ30	600-2500	30	125	580	1680	1	6.66	2500	10	1.42	90	0.1	0.951
MDQ50	600-2500	50	100	580	1680	1	6.66	2500	10	1.52	75	0.1	1.42
MDQ60	600-2500	60	115	940	4400	1	3.2	2500	10	1.32	90	0.1	0.951
MDQ75	600-2500	75	100	940	4400	1	3.2	2500	10	1.4	120	0.1	0.951
MDQ100	600-2500	100	100	1250	7800	1	2.33	2500	10	1.4	165	0.1	0.692
MDQ150	600-2500	150	100	1810	16400	0.8	2.1	2500	10	1.39	270	0.05	0.44
MDQ200	600-2500	200	100	2540	32200	0.8	1.63	2500	15	1.47	330	0.05	0.367
MDQ300	600-2500	300	90	4820	116100	0.9	1.12	2500	15	1.46	480	0.05	0.233
MDQ400	600-2500	400	90	6100	186000	0.8	1	2500	15	1.42	600	0.03	0.197
MDQ500	600-2500	500	90	7100	252000	0.75	0.86	2500	20	1.42	750	0.03	0.157
MDQ600	600-2500	600	85	8950	400000	0.75	0.78	2500	20	1.46	900	0.02	0.127
MDQ700	600-2500	700	85	10800	583000	0.8	0.69	2500	20	1.55	1050	0.02	0.123
MDQ800	600-2500	800	80	12100	732000	0.8	0.56	2500	20	1.5	1200	0.02	0.111
MDQ900	600-2500	900	80	138000	952000	0.7	0.45	2500	20	1.4	1500	0.02	0.096
MDQ1000	600-2500	1000	80	138000	952000	0.7	0.45	2500	20	1.4	1500	0.02	0.096
MDS-25	600-2500	25	100	370	680	0.85	7	2500	10	1.35	25	0.1	6
MDS-30	600-2500	30	100	380	700	0.85	12	2500	10	1.36	30	0.1	4.27
MDS-40	600-2500	40	100	580	1680	1	6.66	2500	10	1.38	40	0.1	1.42
MDS-50	600-2500	50	100	580	1680	1	6.66	2500	10	1.42	50	0.1	1.42
MDS-60	600-2500	60	100	580	1680	1	6.66	2500	10	1.45	60	0.1	1.42
MDS-100	600-2500	100	100	940	4400	1	3.2	2500	10	1.4	100	0.05	0.951
MDS-150	600-2500	150	100	1250	7800	1	2.33	2500	10	1.4	150	0.05	0.692
MDS-160	600-2500	160	100	1250	7800	1	2.33	2500	10	1.4	150	0.05	0.692
MDS-200	600-2500	200	100	1510	11400	0.9	2.2	2500	10	1.38	200	0.05	0.559
MDS-250	600-2500	250	100	1810	16400	0.8	2.1	2500	10	1.39	250	0.05	0.44
MDS-300	600-2500	300	100	2540	32200	0.8	1.63	2500	10	1.44	250	0.05	0.367
MDS-400	600-2500	400	100	4820	116100	0.9	1.12	2500	15	1.46	300	0.05	0.233
MDS-500	600-2500	500	100	6100	186000	0.8	1	2500	15	1.42	600	0.05	0.197
MDS-600	600-2500	600	100	7100	252000	0.75	0.86	2500	20	1.42	750	0.05	0.157
MDS-700	600-2500	700	100	8950	400000	0.75	0.78	2500	20	1.46	900	0.05	0.127
MDS-800	600-2500	800	90	10800	583000	0.8	0.69	2500	20	1.55	1050	0.03	0.123
MDS-900	600-2500	900	90	12100	732000	0.8	0.56	2500	20	1.5	1200	0.03	0.111
MDS-1000	600-2500	1000	90	13800	952000	0.7	0.45	2500	20	1.4	1500	0.03	0.096
MDS-1500	600-2500	1500	80	14800	1100000	0.8	0.41	2500	30	1.56	1800	0.03	0.084
