Product Details

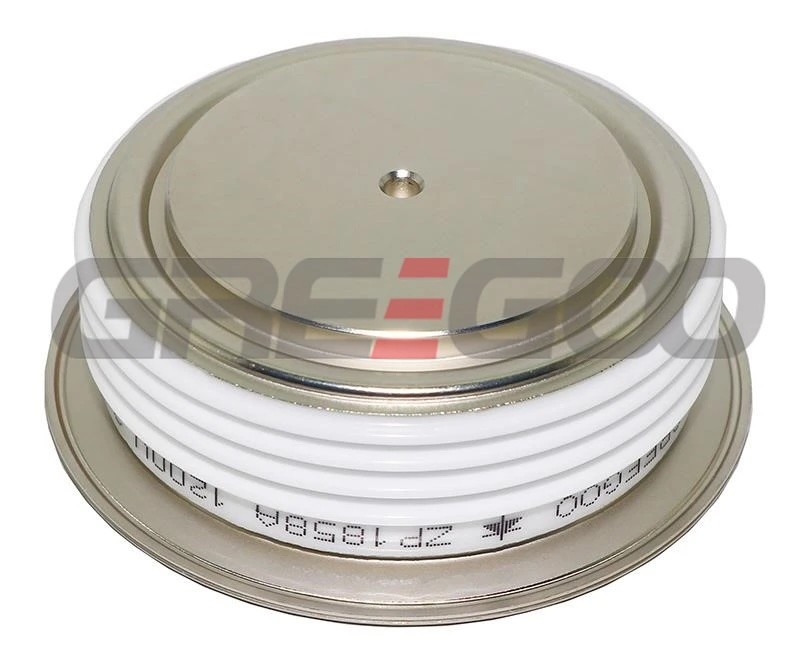

Rectifier Diodes (Alloying Type)

Rectifier Diodes (Alloying Type)

- Locomotive traction and drive
- Hiht Voltage Direct Current Transmission(HVDC)
- SVC
- High current power source
- Eletric motor soft starter
- Industrial drive
- Motor excitation

- Induction heating

Type= VRRM/100	IT(AV)@ Tc=70oC	VDRMVRRM	ITSM@ TVJM &10ms	VTM@ITM &TC=25oC		VTO@ TVJM	rT@ TVJM	TVJM	RthJC	RthCH	F±10%	Outline
Type= VRRM/100	A	V	kA	A	V	V	mΩ	oC	K/W	K/W	kN	Outline
UP to 1400V
D806-500	520	600-1400	5.9	800	1.45	0.8	0.657	190	0.08	0.02	5	19/42/13
D807-1300	1360	600-1400	15.2	1500	1.3	0.78	0.257	190	0.035	0.01	10	29/47/14
D808-1500	1510	600-1400	16.8	1500	1.2	0.78	0.188	190	0.035	0.008	15	34/58/26
D809-2700	2770	600-1400	31	1500	1.05	0.78	0.092	190	0.02	0.005	22	47/75/26
D804-3200	3220	600-1400	35.8	3000	1.15	0.77	0.073	190	0.018	0.005	30	53/85/26
D811-4600	4650	600-1400	45	3000	1.05	0.76	0.051	190	0.0125	0.004	45	63/100/26
D822-6000	6080	600-1400	60	3000	1.05	0.76	0.035	190	0.01	0.003	56	73/110/26
UP to 2200V
D806-400	410	1600-2200	4.9	800	1.85	0.82	1.11	175	0.08	0.02	5	19/42/13
D807-900	990	1600-2200	12.5	1500	1.6	0.82	0.433	175	0.035	0.01	10	29/47/14
D808-1100	1100	1600-2200	13.9	1500	1.45	0.82	0.318	175	0.035	0.008	15	34/58/26

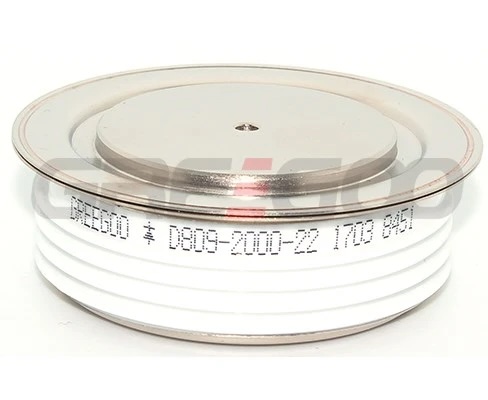

D809-2000	2030	1600-2200	25.7	1500	1.2	0.82	0.156	175	0.02	0.005	22	47/75/26
D804-2300	2360	1600-2200	29.8	3000	1.35	0.81	0.125	175	0.018	0.005	30	53/85/26
D811-3400	3430	1600-2200	42.2	3000	1.2	0.79	0.086	175	0.0125	0.004	45	63/100/26
D822-4400	4460	1600-2200	56.4	3000	1.15	0.81	0.059	175	0.01	0.003	56	73/110/26
UP to 3400V
D807-800	850	2400-3400	10.8	1500	1.95	0.88	0.613	175	0.035	0.01	10	29/47/14
D808-900	960	2400-3400	12	1500	1.7	0.88	0.45	175	0.035	0.008	15	34/58/26
D809-1800	1830	2400-3400	23	1500	1.35	0.88	0.2	175	0.02	0.005	22	47/75/26
D804-2000	2050	2400-3400	25.8	3000	1.55	0.86	0.18	175	0.018	0.005	30	53/85/26
D811-2900	2980	2400-3400	36.5	3000	1.35	0.82	0.128	175	0.0125	0.004	45	63/100/26
D822-3900	3920	2400-3400	49.5	3000	1.25	0.85	0.084	175	0.01	0.003	56	73/110/26
UP to 4500V
D808-600	640	3600-4500	10.6	1500	2	0.96	0.604	150	0.035	0.008	15	34/58/26
D809-1200	1200	3600-4500	19.6	1500	1.55	0.96	0.296	150	0.02	0.005	22	47/75/26
D804-1300	1370	3600-4500	22.8	3000	1.8	0.96	0.235	150	0.018	0.005	30	53/85/26
D811-1900	1980	3600-4500	32	3000	1.6	0.96	0.162	150	0.0125	0.004	45	63/100/26
D822-2600	2680	3600-4500	42.6	3000	1.35	0.8	0.135	150	0.01	0.003	56	73/110/26
UP to 6500V
D822-2100	2140	4600-5200	35	3000	1.6	1	0.195	150	0.01	0.003	56	73/110/26
D808-600	600	5000-6500	9.5	1500	1.9	0.95	0.8	150	0.035	0.008	15	34/58/26
D809-1000	1060	5400-6500	16.5	1500	1.7	1.05	0.45	150	0.02	0.005	22	47/75/26
UP to 8500V
D808-500	570	6600-7200	8	1500	1.95	1.1	0.85	150	0.035	0.008	15	34/58/26
D809-900	960	6600-7200	11	1500	1.8	1.2	0.5	150	0.02	0.005	22	47/75/26
D808-400	420	7500-8500	7	1500	2	1.15	0.9	150	0.035	0.008	15	34/58/26
D809-900	910	7500-8500	11	1500	1.85	1.25	0.55	150	0.02	0.005	22	47/75/26
