PHOTOVOLTAIC DIODE MODULE
Feature
●Chip and baseplate electrical insulation, 2500V AC voltage
●Imported glass passivated chip welding, excellent temperature characteristics of the import and power cycling capability●Small size, light weight
Typical Application
Inverter, AC and DC motor control, various rectifying power supply

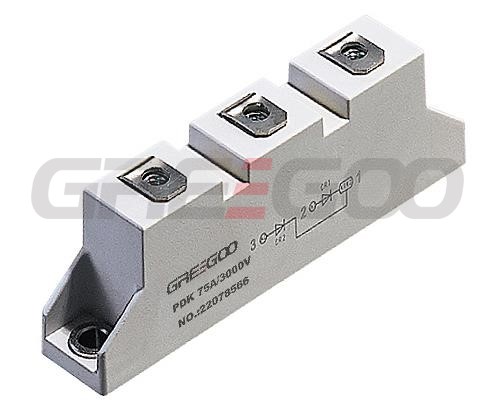

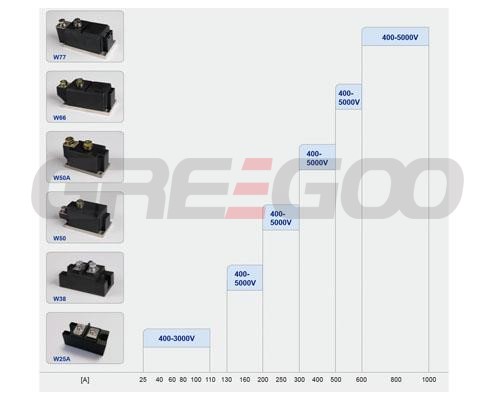

PMD PV Diode Modules
| Type | IF(AV) | VRRM |
VFM @IFM |
IRRM | IF(RMS) | IFSM | Rjc | Tjm | Viso | |
| A | V | V | A | mA | A | A×103 | ℃/W | ℃ | V(AC) | |
| PMD25A | 25 | 500-2500 | 1.1 | 80 | 8 | 41 | 0.65 | 1.3 | 150 | 2500 |
| PMD55A | 55 | 500-2500 | 1.1 | 170 | 8 | 86 | 1.3 | 0.7 | 150 | 2500 |
| PMD90A | 90 | 500-2500 | 1.15 | 270 | 8 | 141 | 2.3 | 0.47 | 150 | 2500 |
| PMD110A | 110 | 500-2500 | 1.15 | 330 | 8 | 173 | 2.6 | 0.35 | 150 | 2500 |
| PMD130A | 130 | 500-2500 | 1.18 | 410 | 12 | 212 | 3.9 | 0.31 | 150 | 2500 |
| PMD160A | 160 | 500-2500 | 1.2 | 480 | 12 | 251 | 6 | 0.23 | 150 | 2500 |
| PMD200A | 200 | 500-2500 | 1.2 | 600 | 12 | 314 | 8 | 0.21 | 150 | 2500 |
| PMD250A | 250 | 500-2500 | 1.25 | 750 | 20 | 393 | 11 | 0.14 | 150 | 2500 |
| PMD300A | 300 | 500-2500 | 1.3 | 900 | 20 | 471 | 12.5 | 0.13 | 150 | 2500 |
| PMD350A | 350 | 500-2500 | 1.3 | 1050 | 30 | 550 | 15 | 0.11 | 150 | 2500 |
| PMD500A | 500 | 500-2500 | 1.35 | 1500 | 40 | 785 | 21 | 0.9 | 150 | 2500 |
| PMD600A | 600 | 500-2500 | 1.35 | 1800 | 40 | 942 | 15 | 0.11 | 150 | 2500 |
| PMD800A | 800 | 500-2500 | 1.4 | 2400 | 40 | 1256 | 18 | 0.08 | 150 | 2500 |

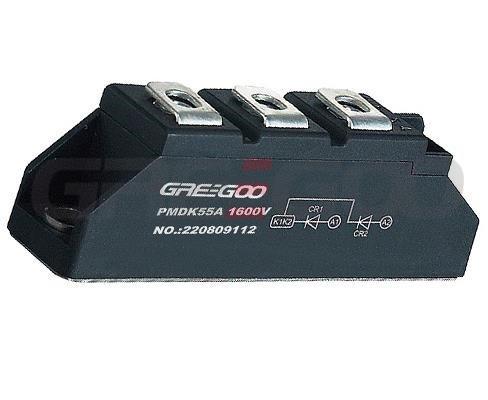

PMDK PV Diode Modules
| Type | IF(AV) | VRRM |
VFM @IFM |
IRRM | IF(RMS) | IFSM | Rjc | Tjm | Viso | |
| A | V | V | A | mA | A | A×103 | ℃/W | ℃ | V(AC) | |
| PMDK25A | 25 | 500-2500 | 1.1 | 80 | 8 | 41 | 0.65 | 1.3 | 150 | 2500 |
| PMDK55A | 55 | 500-2500 | 1.1 | 170 | 8 | 86 | 1.3 | 0.7 | 150 | 2500 |
| PMDK90A | 90 | 500-2500 | 1.15 | 270 | 8 | 141 | 2.3 | 0.47 | 150 | 2500 |
| PMDK110A | 110 | 500-2500 | 1.15 | 330 | 8 | 173 | 2.6 | 0.35 | 150 | 2500 |
| PMDK130A | 130 | 500-2500 | 1.18 | 410 | 12 | 212 | 3.9 | 0.31 | 150 | 2500 |
| PMDK160A | 160 | 500-2500 | 1.2 | 480 | 12 | 251 | 6 | 0.23 | 150 | 2500 |
| PMDK200A | 200 | 500-2500 | 1.2 | 600 | 12 | 314 | 8 | 0.21 | 150 | 2500 |
| PMDK250A | 250 | 500-2500 | 1.25 | 750 | 20 | 393 | 11 | 0.14 | 150 | 2500 |
| PMDK300A | 300 | 500-2500 | 1.3 | 900 | 20 | 471 | 12.5 | 0.13 | 150 | 2500 |
| PMDK350A | 350 | 500-2500 | 1.3 | 1050 | 30 | 550 | 15 | 0.11 | 150 | 2500 |
| PMDK500A | 500 | 500-2500 | 1.35 | 1500 | 40 | 785 | 21 | 0.9 | 150 | 2500 |
| PMDK600A | 600 | 500-2500 | 1.35 | 1800 | 40 | 942 | 15 | 0.11 | 150 | 2500 |
| PMDK800A | 800 | 500-2500 | 1.4 | 2400 | 40 | 1256 | 18 | 0.08 | 150 | 2500 |

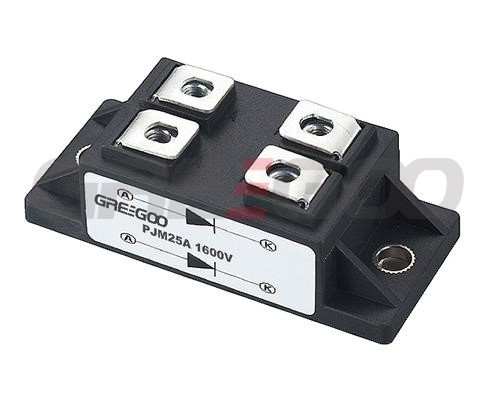

PJM PV Diode Modules
| Type | lo@Tc | VRRM |
VFM @I FM |
IRRM | IF(AV) | IF(RMS) | IFSM | Rjc | Tjm | Viso | ||
| A | ℃ | V | V | A | mA | A | A | A×103 | ℃/W | ℃ | VA.C | |
| PJM50 | 50 | 100 | 600-2000 | 0.6 | 75 | 8 | 25 | 60 | 0.75 | 0.55 | 150 | 2500 |
| PJM75 | 75 | 100 | 600-2000 | 0.7 | 110 | 8 | 38 | 70 | 1.001.50 | 0.32 | 150 | 2500 |
| PJM100 | 100 | 100 | 600-2000 | 0.8 | 150 | 10 | 50 | 86 | 2.5 | 0.24 | 150 | 2500 |
| PJM150 | 150 | 100 | 600-2000 | 0.8 | 230 | 10 | 60 | 90 | 2.5 | 0.15 | 150 | 2500 |
| PJM200 | 200 | 100 | 600-2000 | 0.9 | 230 | 10 | 60 | 90 | 2.5 | 0.15 | 150 | 2500 |
| PJM300 | 300 | 100 | 600-2000 | 0.9 | 230 | 10 | 70 | 95 | 2.5 | 0.15 | 150 | 2500 |
| PJM400 | 400 | 100 | 600-2000 | 1 | 230 | 10 | 75 | 106 | 2.5 | 0.15 | 150 | 2500 |
| PJM500 | 500 | 100 | 600-2000 | 1 | 230 | 10 | 75 | 106 | 2.5 | 0.15 | 150 | 2500 |
