Product Details

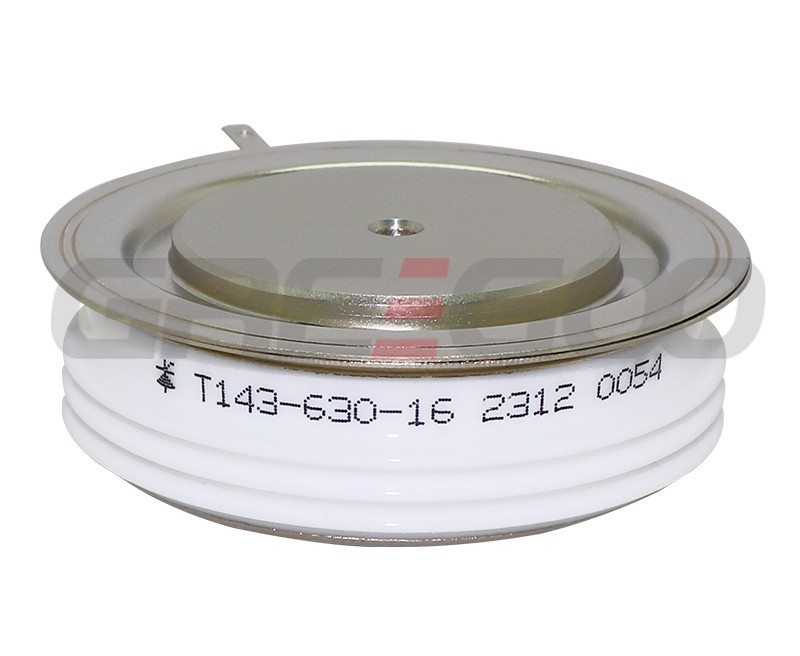

Press Pack Thyristor (Russia Version)

Features
- Hermetic metal cases with ceramic insulators
- Capsule packages for double sided cooling
- Amplifying gates
- Optimized for low on-state losses
- Suitable for series and parallel connections

Typical applications
- DC motor control
- Controlled rectifiers
- AC controllers
- Soft starters for AC motors
- High voltage SM-drives up to 30 MWs

Specification

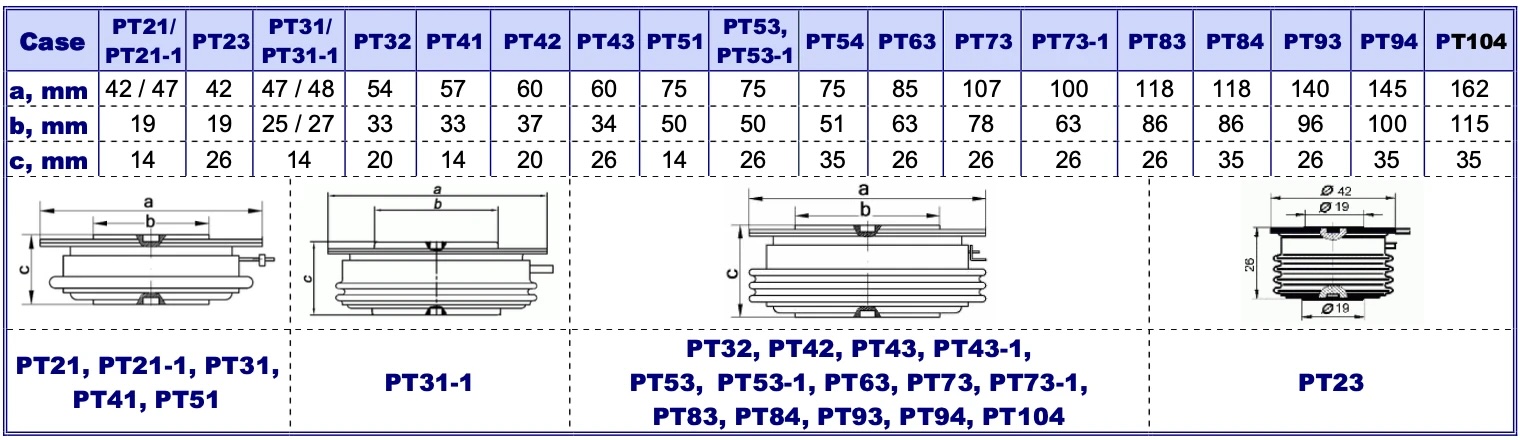

Type	V_DRM, V_RRM V	I_T(AV) Tc=70C A	I_TSM 10ms kA	V_T(TO) T_VJM V	^rT T_VJM mQ	(di_T/dt)cr T_VJM A/μs	(dv_D/dt)cr T_VJM V/μs	t_q(typ) T_VJM μS	R_th(j-c) ℃/W	T_VJM ℃	F_m kN	Case
Up to 800V
T123-500	400-800	710	6	0.84	0.43	200	1000,1600	100	0.07	150	6	PT21,PT21-1
T133-800	400-800	1270	12	0.9	0.287	200	1000,1600	100	0.035	150	10	PT31
T143-1250	400-800	1750	21	0.79	0.17	200	1000,1600	100	0.03	150	15	PT41
T153-2000	400-800	2883	36	0.83	0.1	200	1000,1600	100	0.018	150	24	PT51
T163-2500	400-800	3191	50	0.82	0.07	200	1000,1600	100	0.016	140	33	PT63
T173-5000	400-800	5595	66	0.85	0.042	200	1000,1600	100	0.01	150	45	PT73
Up to 1800V
T123-320	400-1600	408	5	1.04	0.64	200	1000,1600	160	0.08	125	6	PT21,PT21-1
T123-400	800-1200	490	5.5	0.83	0.58	200	1000,1600	100	0.08	130	6	PT21,PT21-1
T233-500	1200-1800	730	9	1.08	0.44	200	1000,1600	160	0.04	125	10	PT32
T333-500	1200-1800	804	9	1.08	0.44	200	1000,1600	160	0.035	125	10	PT31-1
T133-630	800-1200	915	12	0.85	0.35	200	1000,1600	100	0.04	130	10	PT31
T143-800	1200-1800	969	14	0.88	0.374	200	1000,1600	160	0.032	125	15	PT42
T143-1000	800-1200	1239	19	0.85	0.25	200	1000,1600	100	0.03	130	15	PT41

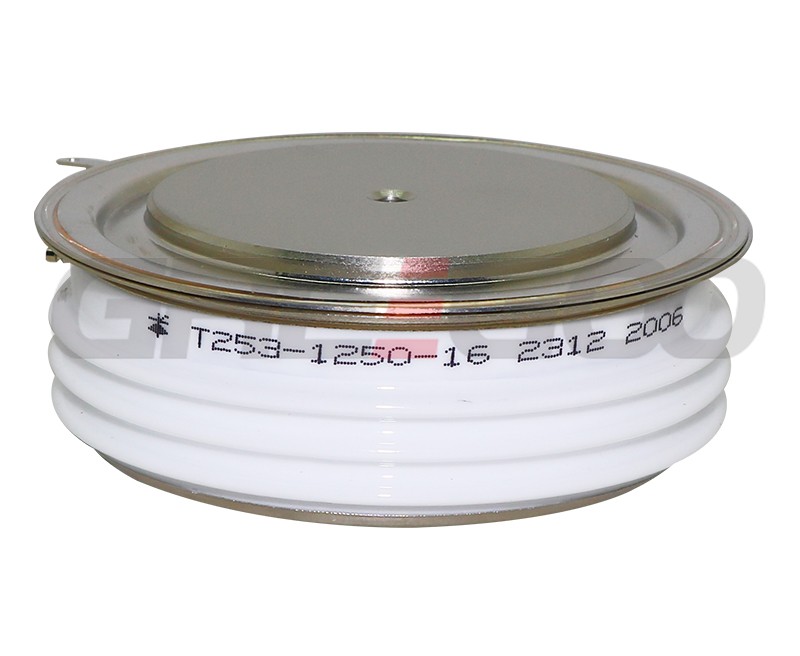

T253-1250	1200-1800	1587	28	0.95	0.2	200	1000,1600	160	0.02	125	24	PT53
T153-1600	800-1200	2316	30	1.01	0.069	200	1000,1600	160	0.018	130	24	PT51
T163-1600	1200-1800	2023	35	0.95	0.15	200	1000,1600	160	0.016	125	33	PT63
T163-2000	800-1200	2694	40	0.96	0.065	200	1000,1600	120	0.016	130	33	PT63
T173-2500	1200-1800	3224	52	0.95	0.095	200	1000,1600	160	0.01	125	45	PT73
T173-3200	1000-1200	4115	60	0.92	0.053	200	1000,1600	160	0.01	130	45	PT73
T173-4000	800-1000	4778	62	0.84	0.053	200	1000,1600	100	0.01	140	45	PT73
T183-4000	800-1600	4622	70	0.86	0.055	200	1000,1600	160	0.008	125	70	PT83
T293-5000	800-1800	6906	100	0.86	0.043	200	1000,1600	160	0.005	125	80	PT93
Up to 3400V
T323-200	2600-3400	250	3.5	1.15	2.6	200	1000,1600	320	0.08	125	6	PT23
T223-250	1800-2600	312	4	1.05	1.5	200	1000,1600	160	0.08	125	6	PT23
T233-320	2400-3400	474	5	1.15	1.5	200	1000,1600	320	0.04	125	10	PT32
T233-400	1800-2400	593	7	1	0.9	200	1000,1600	250	0.04	125	10	PT32
T333-400	1800-2400	657	7	1.04	0.65	200	1000,1600	250	0.04	125	10	PT31-1
T243-500	2800-3400	706	10	1.12	0.673	200	1000,1600	320	0.034	125	15	PT42
T243-630	1800-2800	796	9	1.05	0.5	200	1000,1600	250	0.034	125	15	PT42
T153-630	2000-2800	1110	15	1.05	0.37	200	1000,1600	250	0.024	125	22	PT53
T153-800	1000-2000	1289	20	0.95	0.26	200	1000,1600	200	0.024	125	22	PT53
T353-800	2800-3400	1151	17	1.12	0.447	200	1000,1600	320	0.02	125	24	PT53-1,PT53
T253-1000	1800-2800	1423	22	1.02	0.26	200	1000,1600	250	0.02	125	24	PT53
T353-1000	2000-3200	1240	19	1.05	0.38	200	1000,1600	320	0.02	125	24	PT53
T263-1000	2800-3400	1424	20	1.15	0.36	200	1000,1600	320	0.016	125	33	PT63
T163-1250	1800-2800	1616	25	1.05	0.27	200	1000,1600	250	0.016	125	33	PT63
T173-1600	2400-3400	2112	34	1.22	0.22	200	1000,1600	320	0.011	125	45	PT73
T273-2000	2000-2800	2674	42	0.9	0.147	200	1000,1600	250	0.011	125	45	PT73
T373-2000	1800-2800	2674	42	0.95	0.147	200	1000,1600	250	0.011	125	45	PT73-1
T173-2000	1600-2000	2849	49	1.01	0.106	200	1000,1600	200	0.011	125	45	PT73
T283-2500	3000-3400	3380	55	0.95	0.13	200	1000,1600	320	0.008	125	70	PT83
T183-3200	1800-2800	3990	60	0.91	0.087	200	1000,1600	250	0.078	125	70	PT83
T293-3200	2800-3400	4346	75	0.96	0.092	200	1000,1600	250	0.0065	125	80	PT94
T393-3200	2800-3400	4580	75	0.96	0.092	200	1000,1600	250	0.006	125	80	PT93
T193-3200	1800-2800	4863	85	0.9	0.07	200	1000,1600	250	0.0065	125	80	PT94
T293-4000	1800-2800	5130	85	0.9	0.07	200	1000,1600	250	0.006	125	80	PT93
T193-4000	1000-2000	5568	90	0.86	0.048	200	1000,1600	160	0.0065	125	80	PT94
Up to 4800V
T123-160	3400-4200	201	2.8	1.2	4.5	200	1600,2000	400	0.08	125	6	PT23
T133-250	3400-4200	373	4	1.2	2.7	200	1600,2000	400	0.04	125	10	PT32
T243-400	3400-4200	558	6	1.15	1.27	200	1600,2000	400	0.034	125	15	PT42
T753-800	3400-4400	1009	15	1.18	0.62	200	1600,2000	400	0.02	125	24	PT53
T163-1000	3400-4400	1343	18	1.14	0.428	200	1600,2000	400	0.016	125	33	PT63
T273-1250	3600-4800	1937	32	1.1	0.31	200	1600,2000	400	0.011	125	45	PT73
T373-1250	4000-4800	1937	32	1.1	0.31	200	1600,2000	400	0.011	125	45	PT73-1
T183-2500	3600-4200	3094	50	1	0.16	200	1600,2000	400	0.008	125	70	PT83
T193-2500	3400-4200	3866	68	1.12	0.112	200	1600,2000	400	0.0065	125	80	PT94
T393-2500	3400-4200	4079	68	1.12	0.112	200	1600,2000	400	0.006	125	80	PT93
Up to 6500V
T123-100	5000-6000	176	1	1.3	6	200	1600,2000	500	0.08	125	6	PT23
T143-320	5000-6500	450	4.5	1.3	1.7	200	1600,2000	500	0.038	125	15	PT43
T263-800	4400-5200	1127	15	1.2	0.6	200	1600,2000	400	0.017	125	33	PT63
T183-2000	4400-5200	2620	40	1.07	0.24	200	1600,2000	450	0.008	125	70	PT83
T293-2000	5400-6000	3140	56	1.27	0.19	200	1600,2000	500	0.0065	125	80	PT94
T293-2500	4400-5200	3258	60	1.07	0.19	200	1600,2000	400	0.0065	125	80	PT94
