Avalanche diode

URRM,

V

IFAV (Tc),

A (°C)

IFRMS,

А

IFSM,

kA

UFM (IFM),

V (A)

PRSM

(t=100μs), kW

Rthjc,

°C/W

DA253-1600

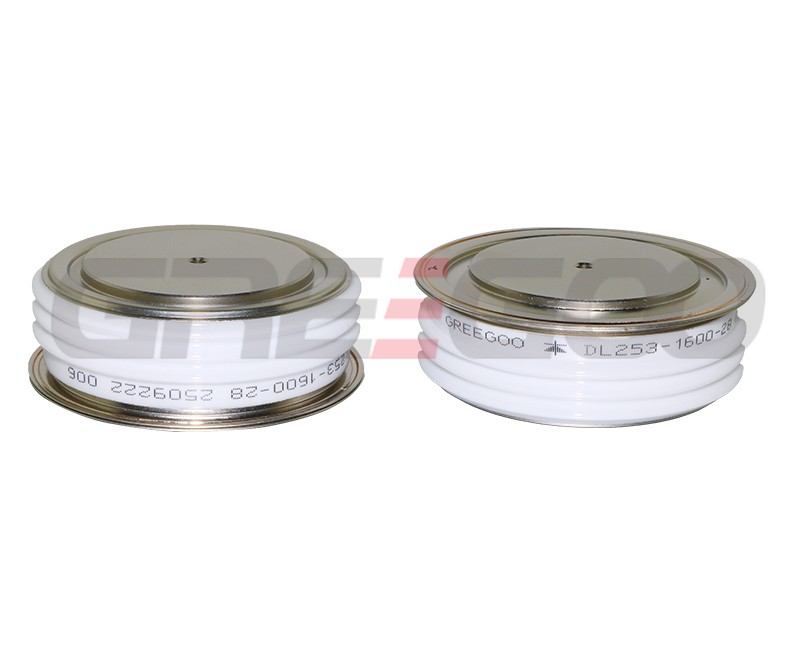

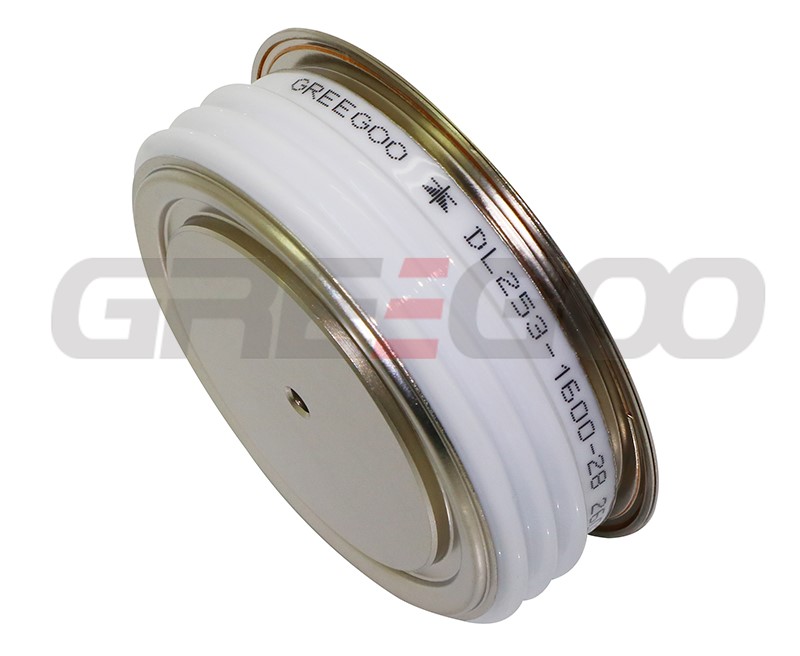

DL253-1600

2800-4200

1600 (85)

2512

30

1,85 (5024)

16

0,02

DA253-2000

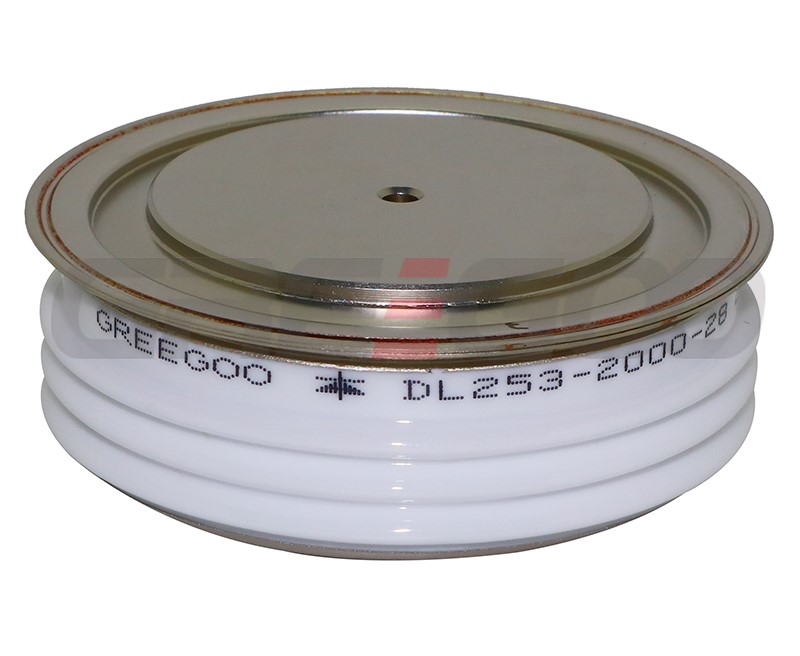

DL253-2000

1600-3800

2000 (85)

3140

33 for 16-32 class;

30 for 34-38 class

1,70 for 16-24 class;

1,80 for 26-38 class

(6280)

16

0,02

DA253-2500
DL253-2500

1600-3600

2500 (85)

3925

36 for 16-32 class;

33 for 34-36 class

1,65 for 16-24 class;

1,70 for 26-36 class

(7850)

16

0,02

URRM,

V

IFAV (Tc),

A (°C)

IFRMS,

А

IFSM,

kA

UFM (IFM),

V (A)

PRSM

(t=100μs), kW

Rthjc,

°C/W

DA243-800

1800-2400

800 (110)

1256

12

1,65 (2512)

16

0,027

URRM,

V

IFAV (Tc),

A (°C)

IFRMS,

А

IFSM,

kA

UFM (IFM),

V (A)

PRSM

(t=100μs), kW

Rthjc,

°C/W

DA153-1250
DL153-1250

2200-3200

1250  (100)

1960

26

1,95  (3925)

16

0,02
