Product Details

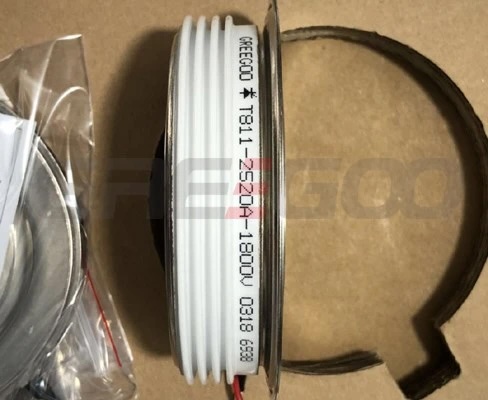

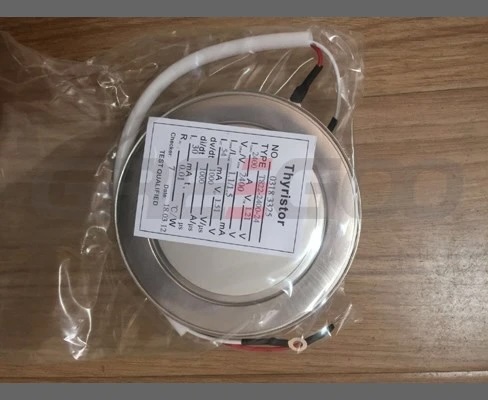

Phase Control Thyristors (Free Floating Type)

Features

- Double-side cooling
- High mean current
- High surge current

Applications

- High power drive
- High voltage supplies
- Motor control

Type= VRRM/100	IF(AV)		VDSM VRSM	VDRM VRRM	ITSM@ TVJM &10ms	VTM@ITM &TC=TVJM		VTO@ TVJM	rT@ TVJM	TVJM	RthJC	RthCH	F±10%	Outline
		@Tc	VDSM VRSM	VDRM VRRM	ITSM@ TVJM &10ms	VTM@ITM &TC=TVJM		VTO@ TVJM	rT@ TVJM	TVJM	RthJC	RthCH	F±10%
	A	oC	V	V	kA	A	V	V	mΩ	oC	K/W	K/W	kN
UP to 2200V
T816-6000	6020	70	1400-1800	1400-1800	94	3000	1	0.83	0.056	125	0.005	0.002	90	100/150/26
T812-3900	3920	70	1800-2200	1800-2200	64.5	3000	1.15	0.86	0.095	125	0.007	0.002	70	84/120/26
T816-5200	5270	70	1800-2200	1800-2200	80	3000	1.05	0.87	0.061	125	0.0057	0.002	90	100/150/35
T816-5700	5750	70	1800-2200	1800-2200	80	3000	1.05	0.87	0.061	125	0.005	0.002	90	100/150/26
UP to 2800V
T812-3300	3300	70	2200-2800	2200-2800	60	3000	1.4	0.95	0.15	125	0.007	0.002	70	84/120/26
T816-4700	4760	70	2200-2800	2200-2800	75	3000	1.14	0.9	0.08	125	0.0057	0.002	90	100/150/35
T816-5100	5190	70	2200-2800	2200-2800	75	3000	1.14	0.9	0.08	125	0.005	0.002	90	100/150/26
T814-6800	6810	70	2200-2600	2200-2600	105	3000	1.04	0.88	0.052	125	0.004	0.001	120	110/172/35
UP to 3400V
T812-3200	3270	70	2800-3400	2800-3400	54	3000	1.41	0.95	0.153	125	0.007	0.002	70	84/120/26
T816-4200	4240	70	2800-3400	2800-3400	69	3000	1.21	0.86	0.115	125	0.0057	0.002	90	100/150/35
T816-4600	4610	70	2800-3400	2800-3400	69	3000	1.21	0.86	0.115	125	0.005	0.002	90	100/150/26
T814-6300	6330	70	2600-3200	2600-3200	100	3000	1.09	0.88	0.07	125	0.004	0.001	120	110/172/35
UP to 4200V
T808-500	500	70	3600-4200	3600-4200	6.4	1000	2.5	1.05	1.45	125	0.035	0.008	15	34/58/26
T809-1000	1090	70	3600-4200	3600-4200	15	1000	1.65	1.05	0.6	125	0.017	0.005	22	47/75/26
T822-1900	1910	70	3600-4200	3600-4200	32	1500	1.41	0.96	0.3	125	0.011	0.003	50	63/102/35
T822-2000	2030	70	3600-4200	3600-4200	32	1500	1.41	0.96	0.3	125	0.01	0.003	50	63/102/26
T812-3000	3000	70	3600-4200	3600-4200	52	3000	1.55	0.95	0.2	125	0.007	0.002	70	84/120/26
T816-3900	3970	70	3600-4200	3600-4200	60	3000	1.35	0.97	0.126	125	0.0057	0.002	90	100/150/35
T816-4300	4320	70	3600-4200	3600-4200	60	3000	1.35	0.97	0.126	125	0.005	0.002	90	100/150/26
T814-5200	5250	70	3600-4200	3600-4200	97.5	3000	1.24	0.9	0.114	125	0.004	0.001	120	110/172/35
UP to 5200V
T808-400	400	70	4600-5200	4200-4600	5	1000	2.8	1.1	1.7	125	0.045	0.008	15	34/58/35
T809-800	830	70	4600-5200	4200-4600	12.4	1000	1.9	1.12	0.78	125	0.022	0.005	22	47/75/35
T811-1300	1300	70	4600-5200	4200-4600	20	1500	1.73	1.1	0.42	125	0.015	0.004	40	63/100/35
T822-1800	1840	70	4600-5200	4200-4600	29	1500	1.5	1.03	0.315	125	0.011	0.003	50	63/102/35
T812-2300	2360	70	4600-5200	4200-4600	42	3000	1.7	1.01	0.23	125	0.009	0.002	70	78/120/35
T812-2700	2770	70	4600-5200	4200-4600	42	3000	1.7	1.01	0.23	125	0.007	0.002	70	84/120/26
T816-3400	3460	70	4600-5200	4200-4600	55	3000	1.54	1	0.18	125	0.0057	0.002	90	100/150/35
T814-5000	5000	70	4600-5200	4200-4600	85.2	3000	1.38	1	0.125	125	0.004	0.001	120	110/172/35
UP to 6500V
T808-300	350	70	5400-6500	4500-5600	4.5	1000	3.5	1.2	2.3	125	0.045	0.008	15	34/58/35
T808-400	420	70	5400-6500	4500-5600	4.5	1000	3.5	1.2	2.3	125	0.035	0.008	15	34/58/26
T809-700	730	70	5400-6500	4500-5600	11.8	1000	2.25	1.2	1.05	125	0.022	0.005	22	47/75/35
T809-800	850	70	5400-6500	4500-5600	11.8	1000	2.25	1.2	1.05	125	0.017	0.005	22	47/75/26
T811-1000	1010	70	5400-6500	4500-5600	14	1500	2.37	1.2	0.78	125	0.015	0.004	40	63/100/35
T811-1100	1140	70	5400-6500	4500-5600	14	1500	2.37	1.2	0.78	125	0.013	0.004	40	63/100/26
T822-1300	1360	70	5400-6500	4500-5600	21.9	1500	2.12	1.15	0.645	125	0.011	0.003	50	63/102/35
T822-1400	1450	70	5400-6500	4500-5600	21.9	1500	2.12	1.15	0.645	125	0.01	0.003	50	63/102/26
T812-1800	1800	70	5400-6500	4500-5600	32	3000	2.49	1.25	0.412	125	0.009	0.002	70	78/120/35
T812-2100	2100	70	5400-6500	4500-5600	32	3000	2.49	1.25	0.412	125	0.007	0.002	70	78/120/26
T816-2800	2800	70	5400-6500	4500-5600	45	3000	2	1.18	0.274	125	0.0057	0.002	90	100/150/35
T816-3000	3070	70	5400-6500	4500-5600	45	3000	2	1.18	0.274	125	0.005	0.002	90	100/150/26
T814-4200	4250	70	5400-6500	4500-5600	71.4	3000	1.69	1.13	0.185	125	0.004	0.001	120	110/172/35
UP to 8000V
T812-1600	1600	70	6800-7200	6300-6800	32	3000	2.5	1.25	0.42	125	0.009	0.002	70	78/120/35
T808-300	300	70	7500-8000	7000-7500	4	500	2.9	1.45	2.9	125	0.045	0.008	15	34/58/35
T809-600	600	70	7500-8000	7000-7500	12.1	1000	2.9	1.35	1.55	125	0.022	0.005	22	47/75/35
T816-1900	1980	70	7500-8000	7000-7500	55	3000	2.55	1.25	0.435	110	0.0057	0.002	90	100/150/35
UP to 8500V
T808-300	300	70	8000-8500	7500-8000	4	500	2.95	1.47	2.95	125	0.045	0.008	15	34/58/35
T809-500	540	70	8000-8500	7500-8000	12.1	1000	2.9	1.35	1.55	115	0.022	0.005	22	47/75/35
T816-1900	1900	70	8000-8500	7500-8000	35	3000	2.88	1.32	0.52	115	0.0057	0.002	90	100/150/35
T814-2400	2400	70	8000-8500	7500-8000	40	3000	2.5	1.3	0.4	90	0.004	0.001	120	110/172/35

Dimension = Contact OD/Flange OD/Height(mm)
