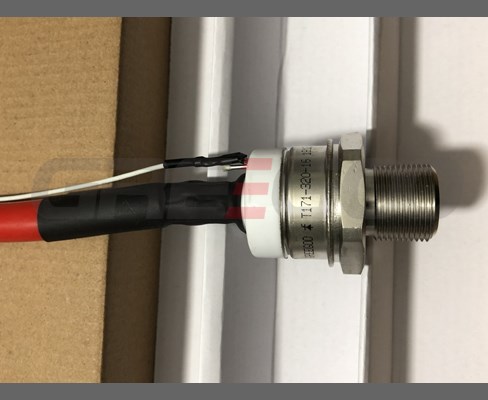

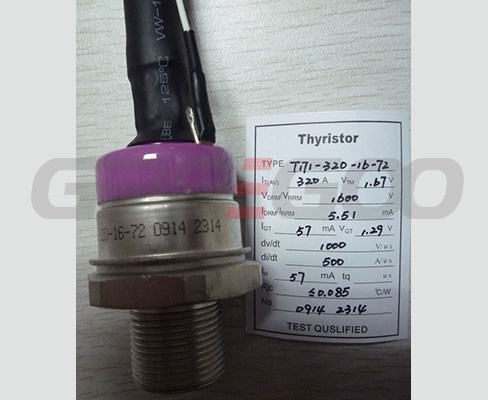

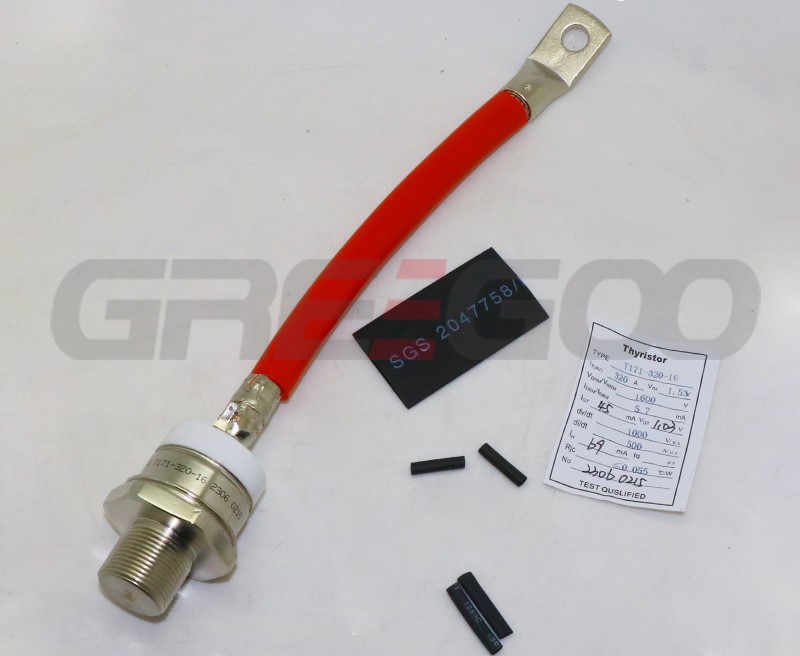

Phase Control Thyristor T171
| Type | VDRM | IT(AV) | ITSM | VTM /ITM | V T(TO) | rT | (diT/ | duD/dt) cr | t q(typ) | R th(j-c) | TVJM | Md | Case |
| VRRM | dt)cr | ||||||||||||
| (TC,ºC) | 10ms | TVJM | TVJM | TVJM | TVJM | TVJM | |||||||
| V | A | kA | V/A | V | mΩ | A/μs | V/μs | μs | ºC/W | ºC | Nm | ºC/W | |

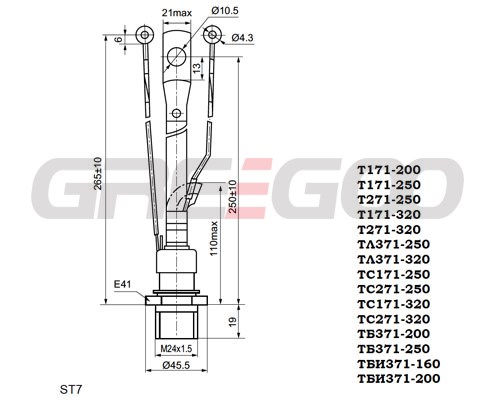

| T171-320 | 300-1800 | 320(87) | 8.5 | 1.60/1005 | 1.05 | 0.53 | 320 | 200-1000 | 160 | 0.085 | 125 | 25-35 | ST7 |
