SOT-227B Single Thyristor Module
Home Products SOT-227B SOT-227 PackageThyristor ModuleSOT-227B Single Thyristor Module
Product Details
SOT-227B Single Thyristor Module
|
Feature:
|
Application:
|
Package SOT-227B:
|
Specification
| Model | IT(AV) (A) |
VRRM (V) |
ITSM (A) |
I2t (kA2·s) |
V(TO) (V) |
rT (mΩ) |
Tvj max (ºC) |
Rth(j-c) (ºC/W) |
Weight (g) |
Package | Size (mm) |
| MCO25-12io1 | 32 | 1200 | 370 | 0.685 | 0.86 | 13.9 | 150 | 1.1 | 30 | SOT-227B | 38x25x12 |
| MCO25-16io1 | 32 | 1600 | 370 | 0.685 | 0.86 | 13.9 | 150 | 1.1 | 30 | SOT-227B | 38x25x12 |
| MCO50-12io1 | 57 | 1200 | 740 | 2.74 | 0.88 | 6 | 150 | 0.72 | 30 | SOT-227B | 38x25x12 |
| MCO50-16io1 | 57 | 1600 | 740 | 2.74 | 0.88 | 6 | 150 | 0.72 | 30 | SOT-227B | 38x25x12 |
| MCO75-12io1 | 80 | 1200 | 1070 | 5.73 | 0.85 | 5.5 | 150 | 0.45 | 30 | SOT-227B | 38x25x12 |
| MCO75-16io1 | 80 | 1600 | 1070 | 5.73 | 0.85 | 5.5 | 150 | 0.45 | 30 | SOT-227B | 38x25x12 |
| MCO100-12io1 | 101 | 1200 | 1400 | 9.8 | 0.85 | 4.5 | 150 | 0.35 | 30 | SOT-227B | 38x25x12 |
| MCO100-16io1 | 101 | 1600 | 1400 | 9.8 | 0.85 | 4.5 | 150 | 0.35 | 30 | SOT-227B | 38x25x12 |
| MCO150-12io1 | 158 | 1200 | 2000 | 20 | 0.84 | 3.5 | 150 | 0.2 | 30 | SOT-227B | 38x25x12 |
| MCO150-16io1 | 158 | 1600 | 2000 | 20 | 0.84 | 3.5 | 150 | 0.2 | 30 | SOT-227B | 38x25x12 |

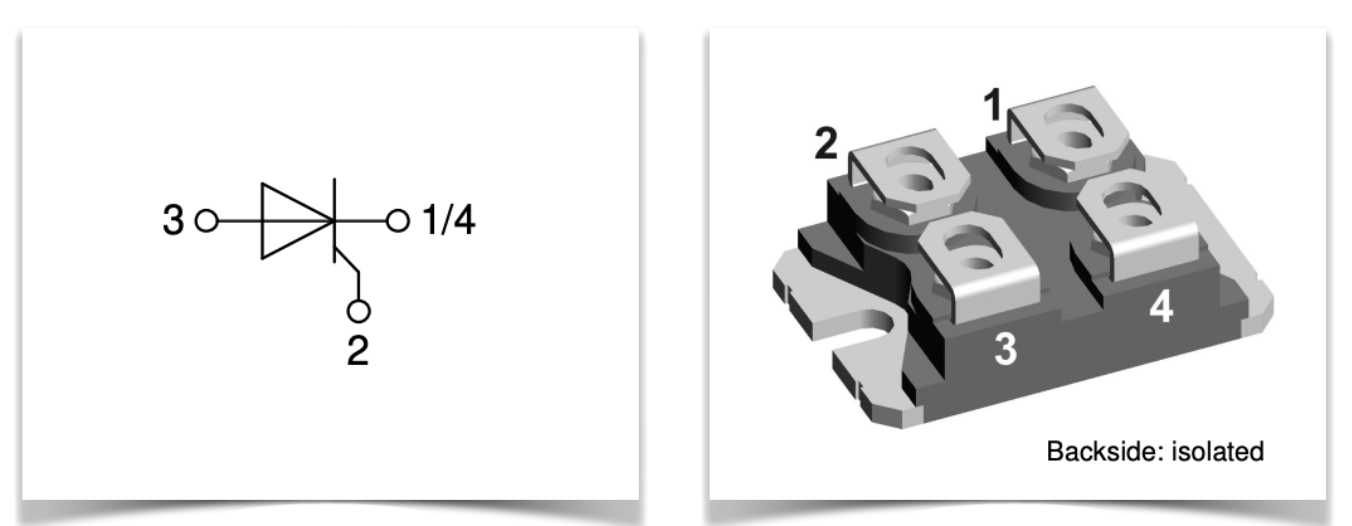

Diagram

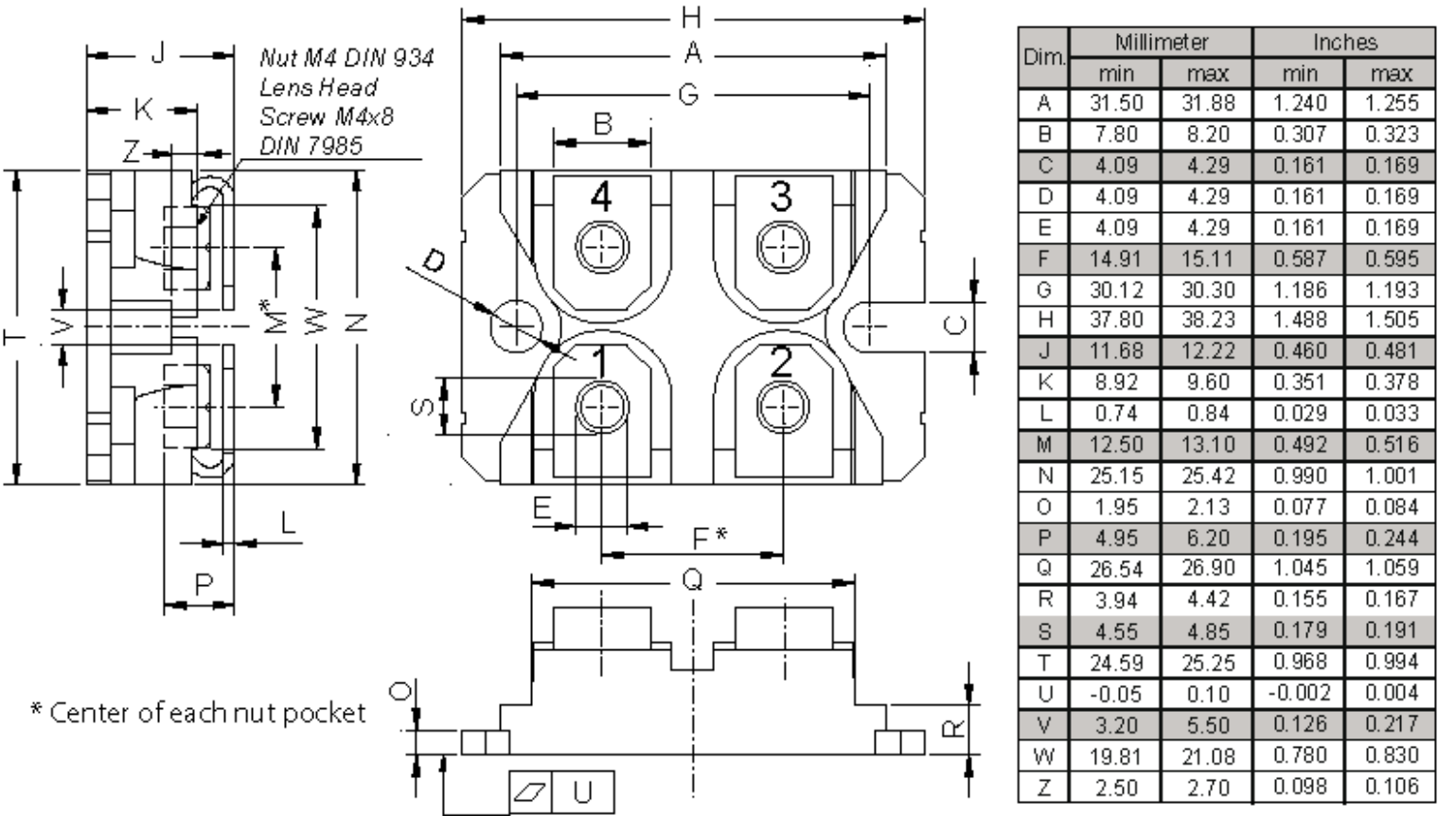

Dimensions
