Product Details

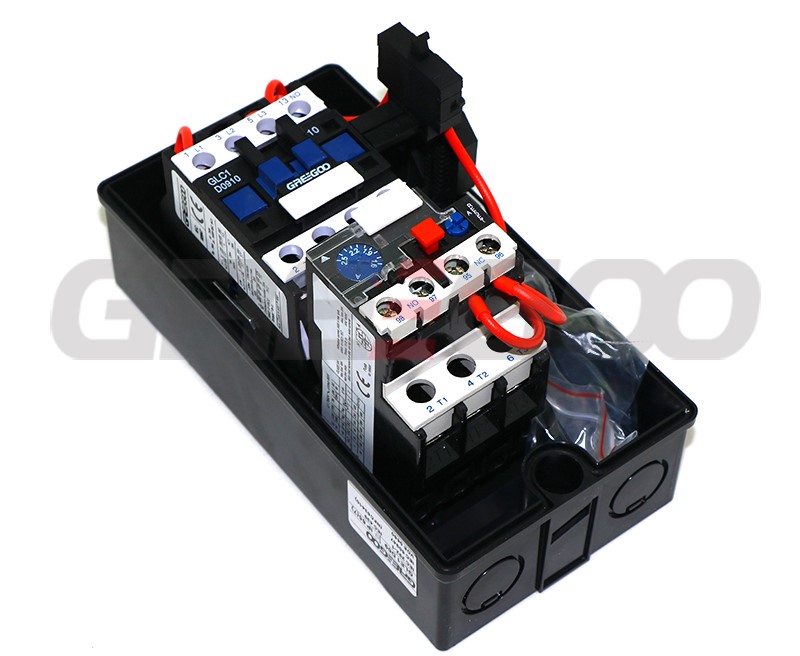

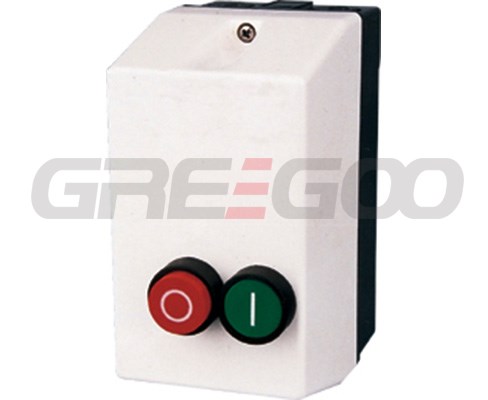

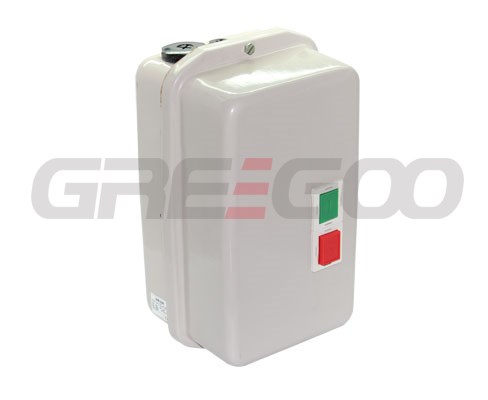

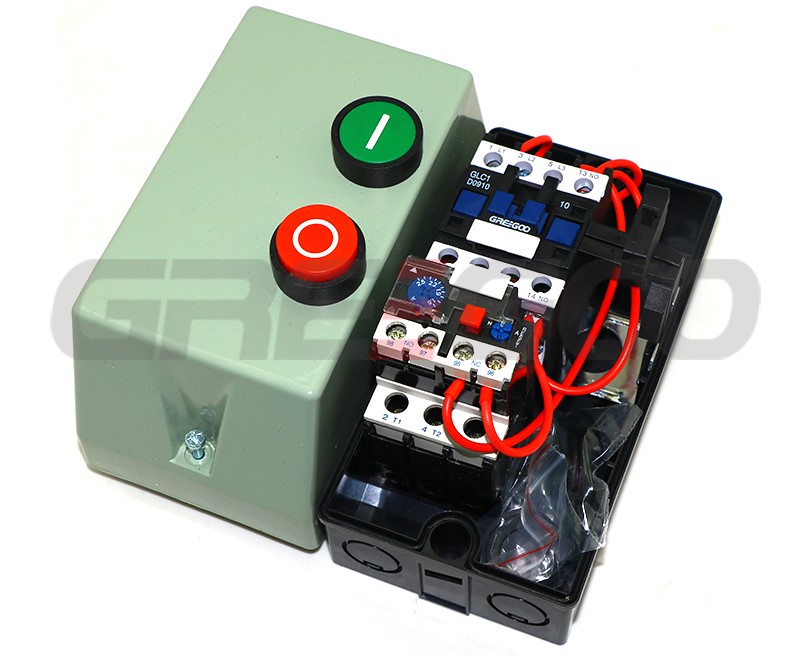

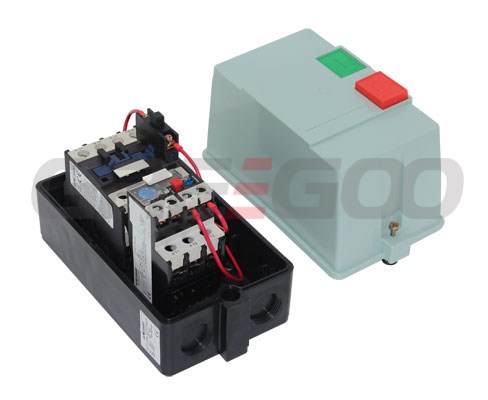

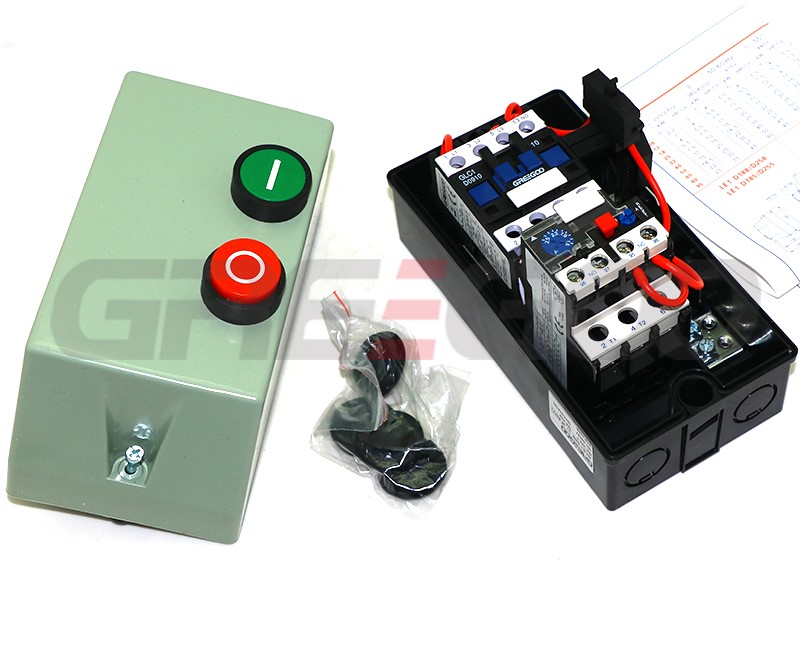

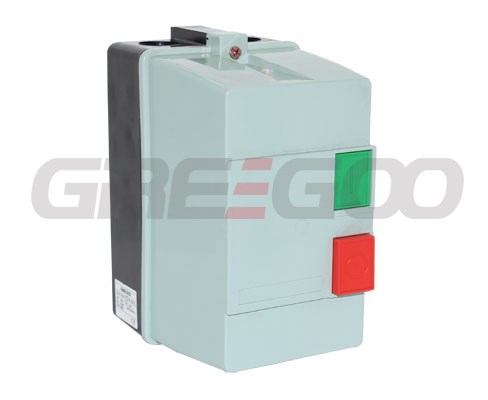

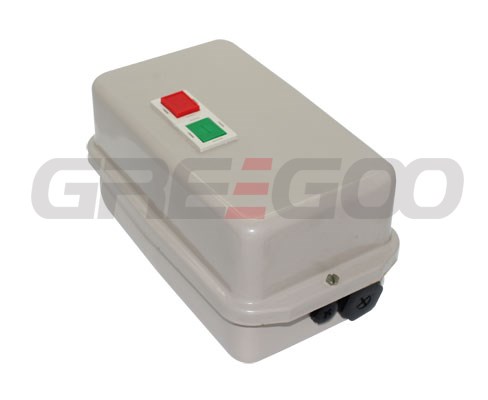

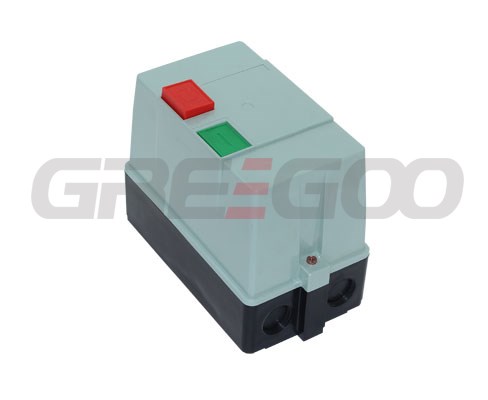

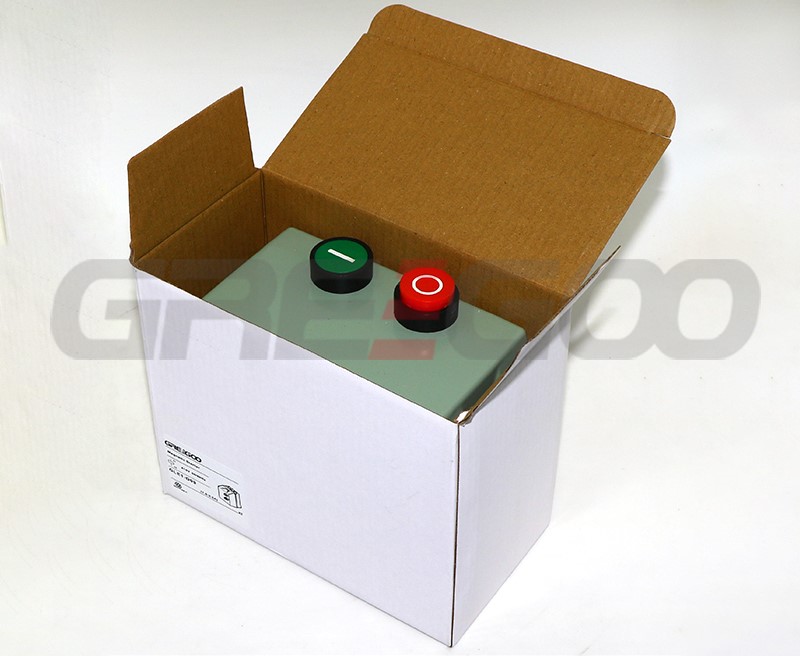

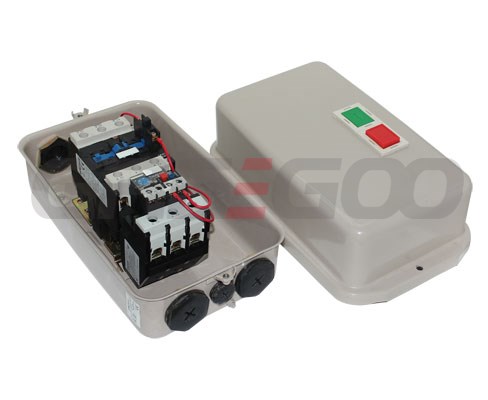

Magnetic Starters (LE1-D)
| Maximum power AC3 duty(KW) | Rated current(A) | Enclosure type: Protection degree | Suitable thermal relay(A) | |||||
| 220V | 380V | 415V | 440V | 500V | 660V | |||
| (kW) | 400V | (kW) | (kW) | (kW) | 690V | |||
| (kW) | (kW) | |||||||
| 2.2 | 4 | 4 | 4 | 5.5 | 5.5 | 9 | IP42 | LE1-D094 |
| IP55 | LE1-D093 | |||||||
| 3 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | 12 | IP42 | LE1-D124 |
| IP55 | LE1-D123 | |||||||
| 4 | 7.5 | 9 | 9 | 10 | 10 | 18 | IP42 | LE1-D188 |
| IP55 | LE1-D185 | |||||||
| 5.5 | 11 | 11 | 11 | 15 | 15 | 25 | IP42 | LE1-D258 |
| IP55 | LE1-D255 | |||||||
| 7.5 | 15 | 15 | 15 | 18.5 | 18.5 | 32 | IP55 | LE1-D325 |
| 11 | 18.5 | 22 | 22 | 22 | 30 | 40 | IP55 | LE1-D405 |
| 15 | 22 | 25 | 30 | 30 | 33 | 50 | IP55 | LE1-D505 |
| 18.5 | 30 | 37 | 37 | 37 | 37 | 65 | IP55 | LE1-D655 |
| 22 | 37 | 45 | 45 | 55 | 45 | 80 | IP55 | LE1-D805 |
| 25 | 45 | 45 | 45 | 55 | 45 | 95 | IP55 | LE1-D955 |
