Magnetic contactors (GLC1-D)
Home Products Motor ProtectionElectrical AC ContactorMagnetic contactors (GLC1-D)
Product Details
Magnetic contactors (GLC1-D)
| Standard power ratings of 3-phase motors 50/60 Hz in category AC-3 | Rated operational current in AC-3 up to 440V (A) | Rated operational current in AC-1 up to 440V (A) | Rated noncondutive voltage (V) | Instantaneous auxiliary contacts | Reference | ||||||
| 220V 230V (kW) | 380V 400V (kW) | 415V (kW) | 440V (kW) | 500V (kW) | 660V 690V (kW) | NO | NC | ||||

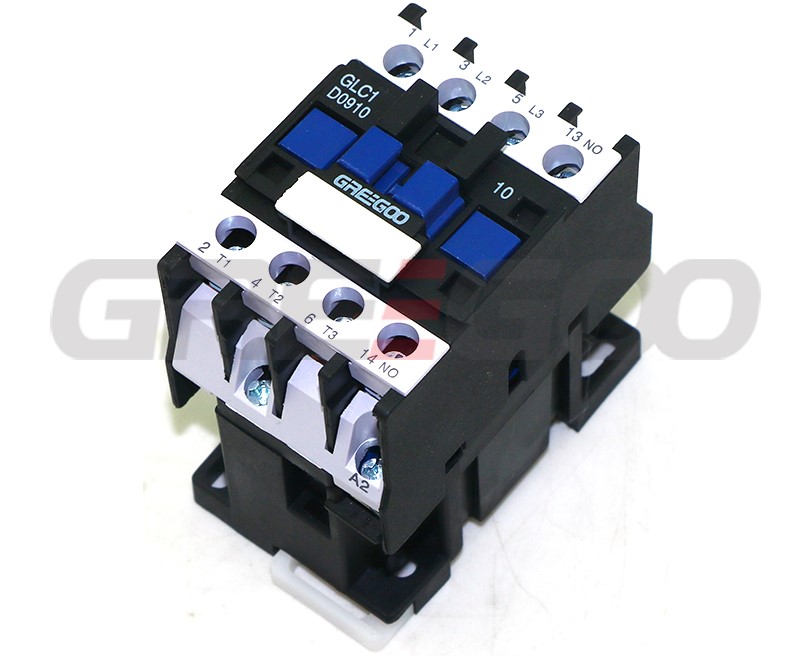

| 2.2 | 4 | 4 | 4 | 5.5 | 5.5 | 9 | 25 | 690 | 1 | - | GLC1-D0910 |
| - | 1 | GLC1-D0901 | |||||||||

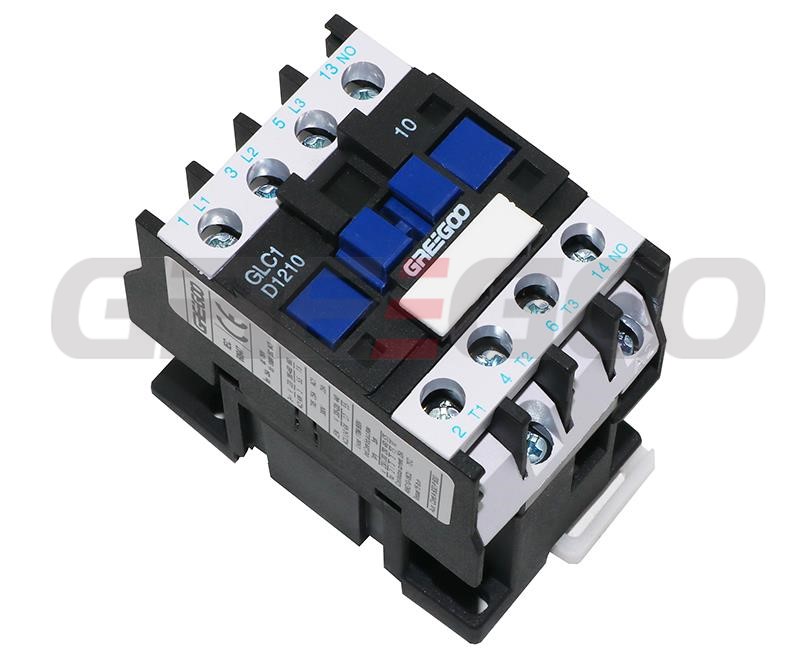

| 3 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | 12 | 25 | 690 | 1 | - | GLC1-D1210 |
| - | 1 | GLC1-D1201 | |||||||||
| 4 | 7.5 | 9 | 9 | 10 | 10 | 18 | 32 | 690 | 1 | - | GLC1-D1810 |
| - | 1 | GLC1-D1801 | |||||||||

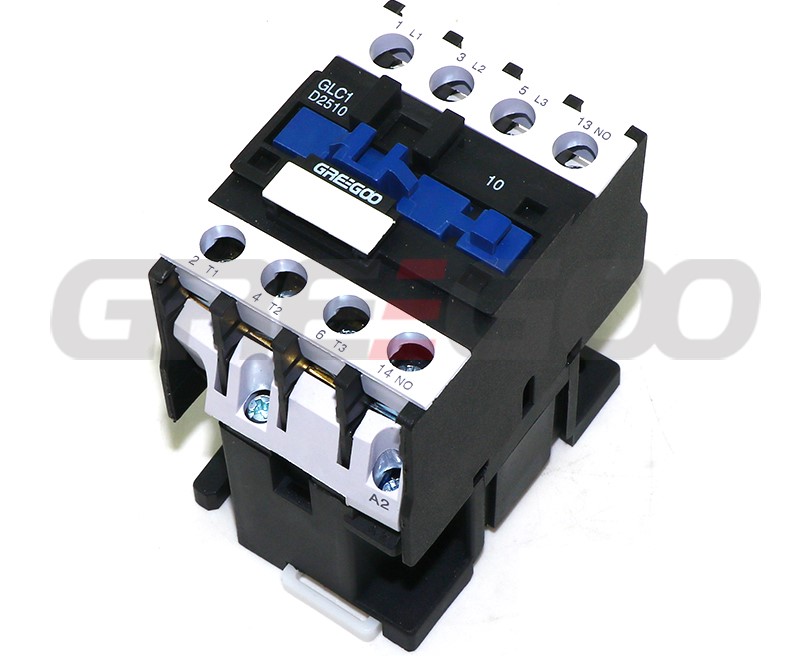

| 5.5 | 11 | 11 | 11 | 15 | 15 | 25 | 40 | 690 | 1 | - | GLC1-D2510 |
| - | 1 | GLC1-D2501 | |||||||||

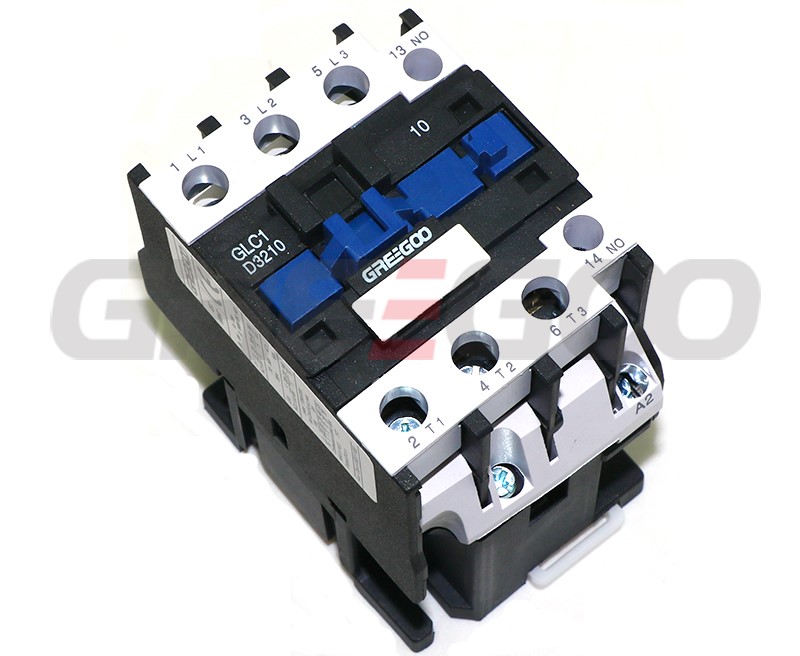

| 7.5 | 15 | 15 | 15 | 18.5 | 18.5 | 32 | 50 | 690 | 1 | - | GLC1-D3210 |
| - | 1 | GLC1-D3201 | |||||||||
| 11 | 18.5 | 22 | 22 | 22 | 30 | 40 | 60 | 690 | 1 | 1 | GLC1-D4011 |
| 15 | 22 | 30 | 30 | 30 | 33 | 50 | 80 | 690 | 1 | 1 | GLC1-D5011 |
| 18.5 | 30 | 37 | 37 | 37 | 37 | 65 | 80 | 690 | 1 | 1 | GLC1-D6511 |
| 22 | 37 | 45 | 45 | 45 | 45 | 80 | 125 | 690 | 1 | 1 | GLC1-D8011 |
| 25 | 45 | 45 | 45 | 45 | 45 | 95 | 125 | 690 | 1 | 1 | GLC1-D9511 |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
