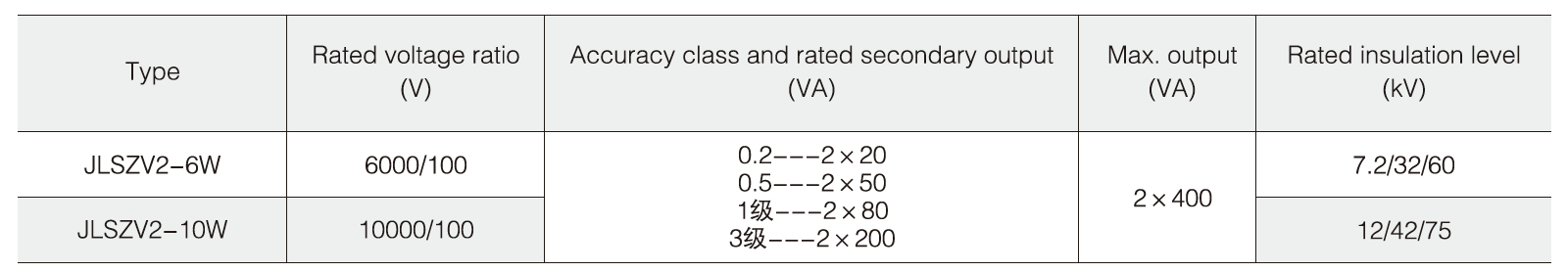

JLSZV2-6,10W Outdoor Dry Type Combined TransformerPDF

OUTDOOR SINGLE-PHASE HIGH-VOLTAGE METERING BOX


Rated insulation level 12/42/75kV
Rated frequency 50Hz or 60Hz
Ambient temperature -25℃~+40℃

Pollution class IV



Rated primary current
(A)
Single transformation
ratio
Accuracy class and rated
secondary output
(VA)
1s thermal current
(kA)
Rated dynamic current
(KA)
(0.2)S 0.5S 0.5
7.5-10-15 7.5 10 10 15 1.0 2.5
10-15-20 10 1.5 3.75
15-20-30 15 2.4 6.0
20-30-40 20、25 3.0 7.5
30-40-50 30 4.5 11
40-50-75 40 8 20
50-75-100 50 9 22.5
75-100-150 75 12 30
100-150-200 100 16 40
150-200-300 150 24 60
200-300-400 200、250 32 80
300-400-500 300 45
400-500-600 400 60 100
500-600-800 500-1000 80
600-800-1000
