Inductive sensor LM8
Home Products Proximity Photoelectric SensorInductive proximity sensor (Cylinder type)Inductive sensor LM8
Product Details

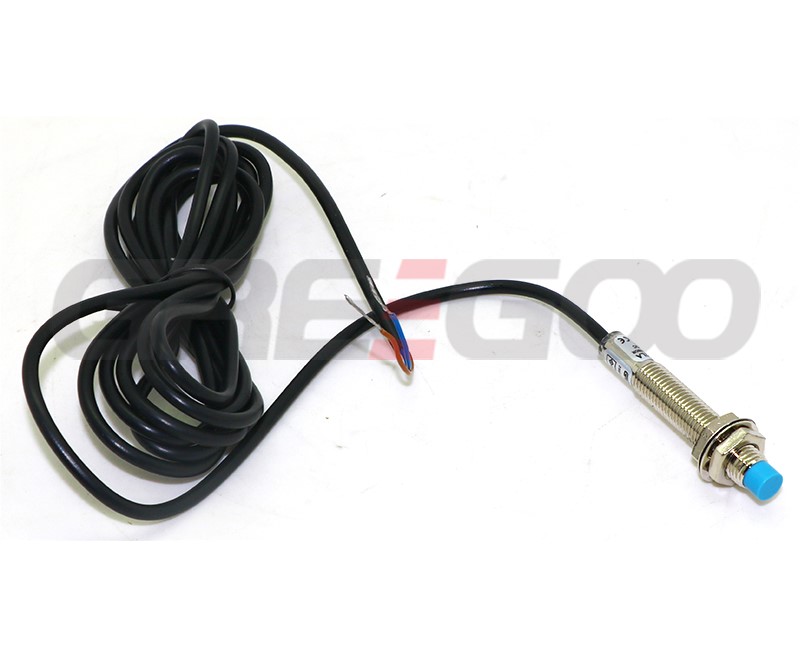

Inductive sensor LM8
| Model NO. | Detection distance | Working voltage | Output | Flush | |
| Form | State | ||||
| LM8-3001NA | 1mm | DC6-36V | NPN | NO | Flush |
| LM8-3001NB | 1mm | DC6-36V | NPN | NC | Flush |

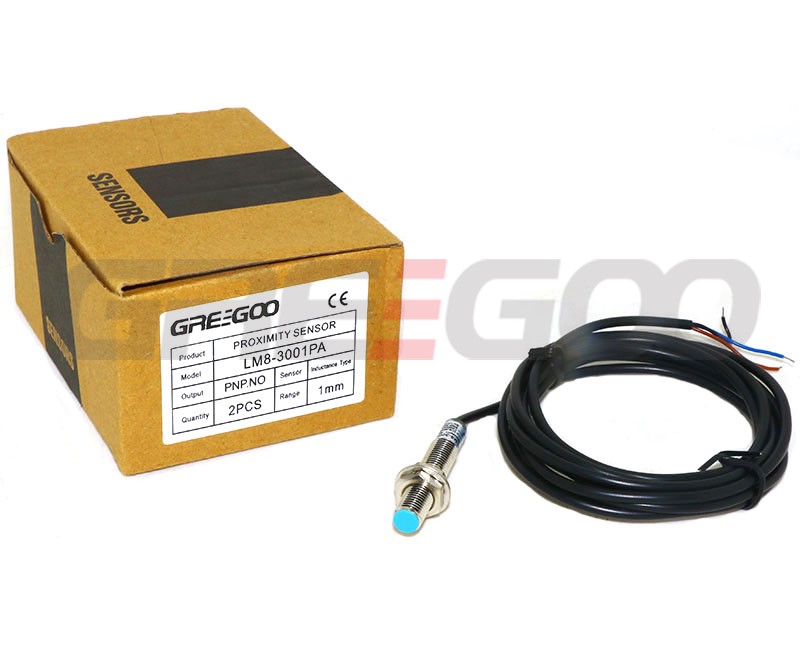

| LM8-3001PA | 1mm | DC6-36V | PNP | NO | Flush |
| LM8-3001PB | 1mm | DC6-36V | PNP | NC | Flush |
| LM8-3001LA | 1mm | DC6-36V | Two wire system | NO | Flush |
| LM8 -3001LB | 1mm | DC6-36V | Two wire system | NC | Flush |
| LM8-3002NA | 2mm | DC6-36V | NPN | NO | Flush |
| LM8-3002NB | 2mm | DC6-36V | NPN | NC | Flush |
| LM8-3002PA | 2mm | DC6-36V | PNP | NO | Non-flush |
| LM8-3002PB | 2mm | DC6-36V | PNP | NC | Non-flush |

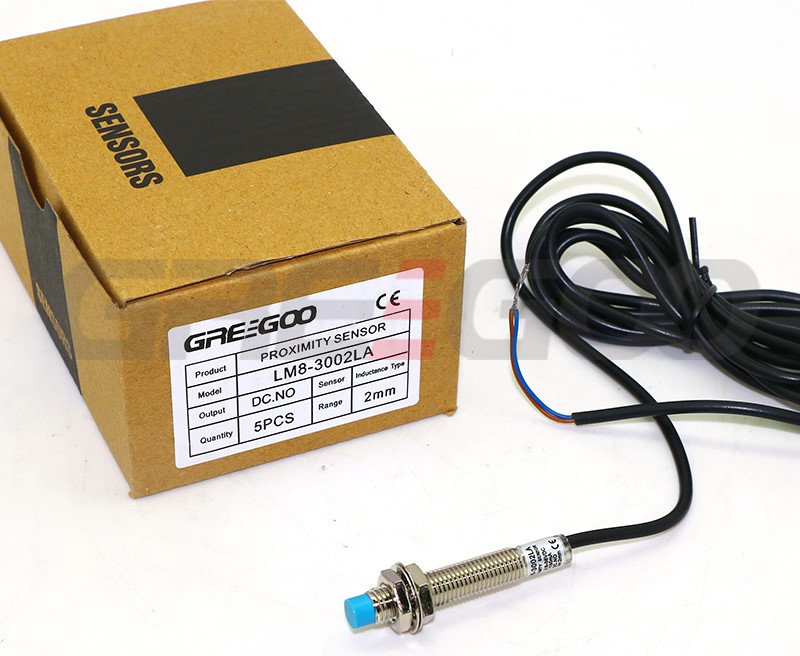

| LM8-3002LA | 2mm | DC6-36V | Two wire system | NO | Non-flush |
| LM8 -3002LB | 2mm | DC6-36V | Two wire system | NC | Non-flush |
| LM8 -2002A | 2mm | AC90-250 | SCR Control label silicon | NO | Non-flush |
