Inductive sensor LM18 straight connector type
Home Products Proximity Photoelectric SensorInductive proximity sensor (Cylinder type)Inductive sensor LM18 straight connector type
Product Details

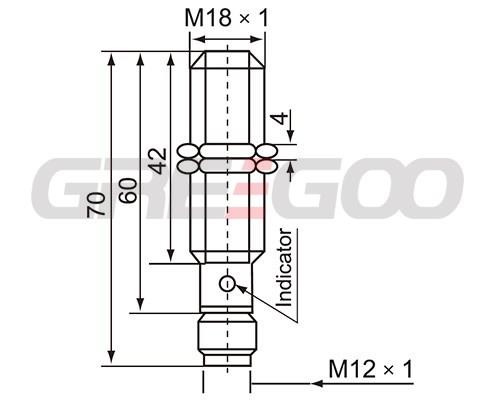

Inductive sensor LM18 straight connector type
Model NO. | Detection distance | Working voltage | Output | Flush | |
Form | State | ||||
LM18-3005NAT1 | 5mm | DC6-36V | NPN | NO | Flush |
LM18-3005NBT1 | 5mm | DC6-36V | NPN | NC | Flush |
LM18-3005NCT1 | 5mm | DC6-36V | NPN | NO NC | Flush |
LM18-3005PAT1 | 5mm | DC6-36V | PNP | NO | Flush |
LM18-3005PBT1 | 5mm | DC6-36V | PNP | NC | Flush |
LM18-3005PCT1 | 5mm | DC6-36V | PNP | NO NC | Flush |
LM18-3005LAT1 | 8mm | DC6-36V | Two wire system | NO | Flush |
LM18-3005LBT1 | 5mm | DC6-36V | Two wire system | NC | Flush |
LM18-2005AT1 | 5mm | AC90-250V | SCR Control label silicon | NO | Flush |
LM18-2005BT1 | 5mm | AC90-250V | SCR Control label silicon | NC | Flush |
LM18-3008NAT1 | 8mm | DC6-36V | NPN | NO | Non-flush |
LM18-3008NBT1 | 8mm | DC6-36V | NPN | NC | Non-flush |
LM18-3008NCT1 | 8mm | DC6-36V | NPN | NO NC | Non-flush |
LM18-3008PAT1 | 8mm | DC6-36V | PNP | NO | Non-flush |
LM18-3008PBT1 | 8mm | DC6-36V | PNP | NC | Non-flush |
LM18-3008PCT1 | 8mm | DC6-36V | PNP | NO NC | Non-flush |
LM18-3008LAT1 | 8mm | DC6-36V | Two wire system | NO | Non-flush |
LM18-3008LBT1 | 8mm | DC6-36V | Two wire system | NC | Non-flush |
LM18-2008AT1 | 8mm | AC90-250V | SCR Control label silicon | NO | Non-flush |
LM18-2008BT1 | 8mm | AC90-250V | SCR Control label silicon | NC | Non-flush |
