Half Controlled Single Phase Rectifier Bridge vhf15/26/36
Home Products Diode Bridge ModuleHalf Controlled Bridge RectifierHalf Controlled Single Phase Rectifier Bridge vhf15/26/36
Product Details

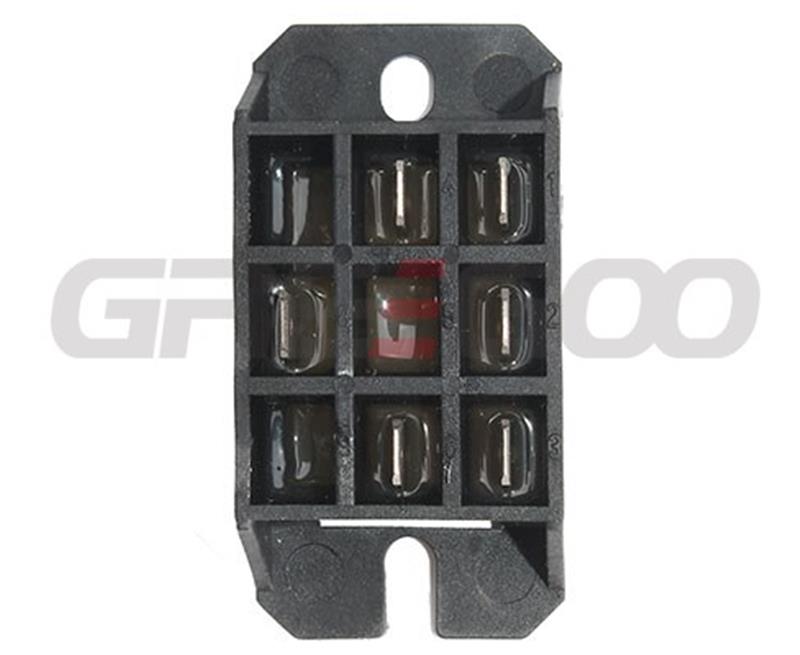

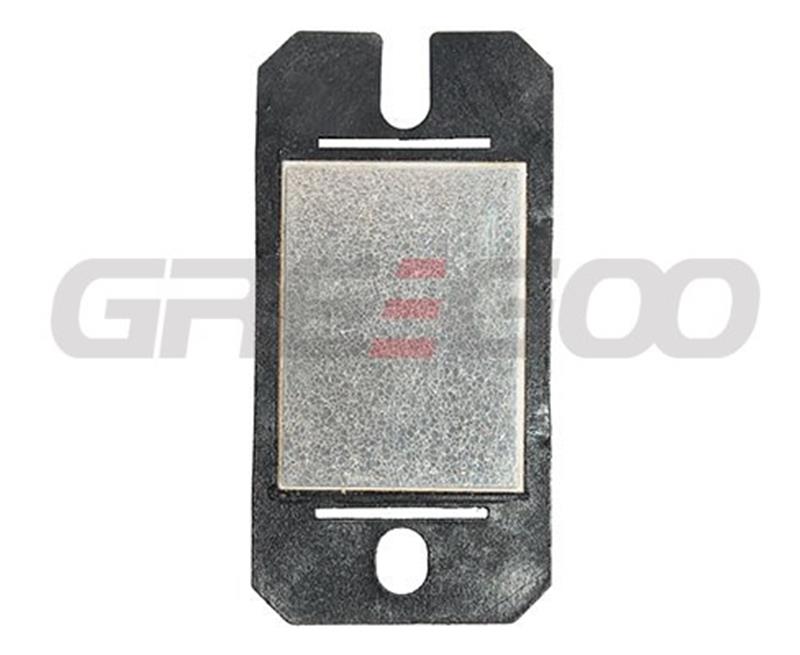

Half Controlled Single Phase Rectifier Bridge vhf15/26/36
1-Phase Half Controlled Bridges
Part Number | VRRM | IDAVM | @TH | @Tc | IFSM | VT0 | rT | Tvjm | RthJC | RthJH |
(V) | (A) | (°C) | (°C) | 10ms | (V) | (mOhms) | (°C) | per chip | per chip | |
Tvj=45°C | (K/W) | (K/W) | ||||||||
(A) | ||||||||||

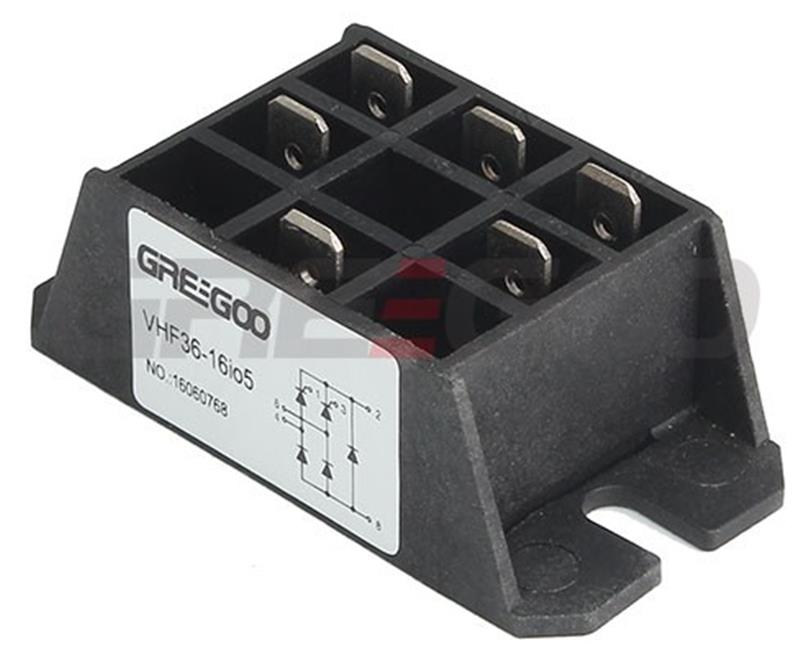

VHF36-16io5 | 1600 | 36 | 85 | - | 320 | 0.85 | 13 | 125 | 1.15 | 1.55 |
VHF28-16io5 | 1600 | 28 | 85 | - | 300 | 0.9 | 15 | 125 | 1.4 | 2 |
VHF15-16io5 | 1600 | 15 | 85 | - | 190 | 1 | 40 | 125 | 2.4 | 3 |
