Single Phase Hybrid Bridge Common Cathode 25A
Home Products Diode Bridge ModuleHalf Controlled Bridge RectifierSingle Phase Hybrid Bridge Common Cathode 25A
Single Phase Hybrid Bridge Common Cathode 25A
DESCRIPTION

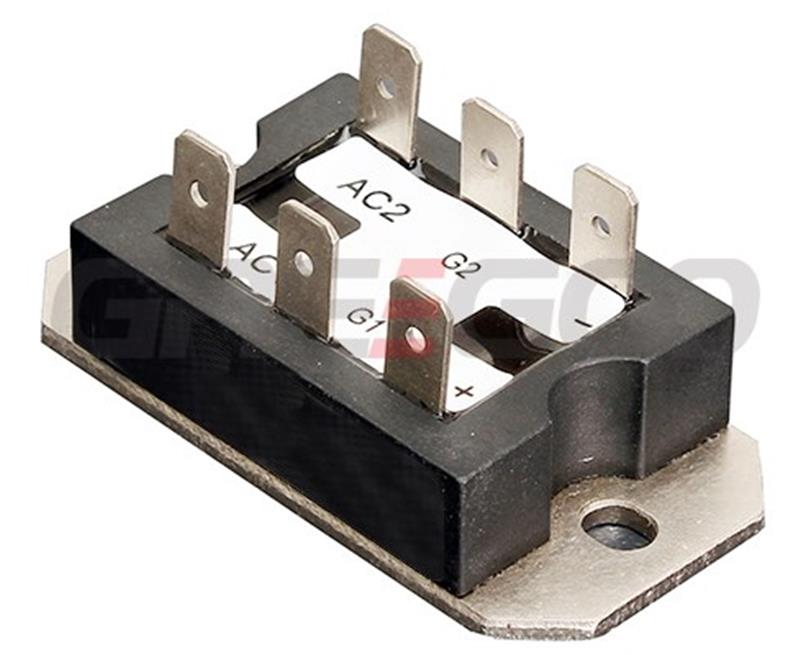

The VS-P100 series of integrated power circuits consists of power thyristors and power diodes configured in a single package. With its isolating base plate, mechanical designs are greatly simplified giving advantages of cost reductionand reduced size. Applications include power supplies, control circuits and battery chargers.
FEATURES
• Glass passivated junctions for greater reliability
• Electrically isolated base plate
• Available up to 1200 VRRM/VDRM
• High dynamic characteristics
• Wide choice of circuit configurations
• Simplified mechanical design and assembly
Type Number | VRRM/VDRM | VRSM | IRRM |
V | V | mA | |
VS-P101 | 400 | 500 | 10 |
VS-P102 | 600 | 700 | 10 |
VS-P103 | 800 | 900 | 10 |
VS-P104 | 1000 | 1100 | 10 |
VS-P105 | 1200 | 1300 | 10 |
