Three phase half controlled bridge rectifier 400A/500A
Home Products Diode Bridge ModuleHalf Controlled Bridge RectifierThree phase half controlled bridge rectifier 400A/500A
Product Details

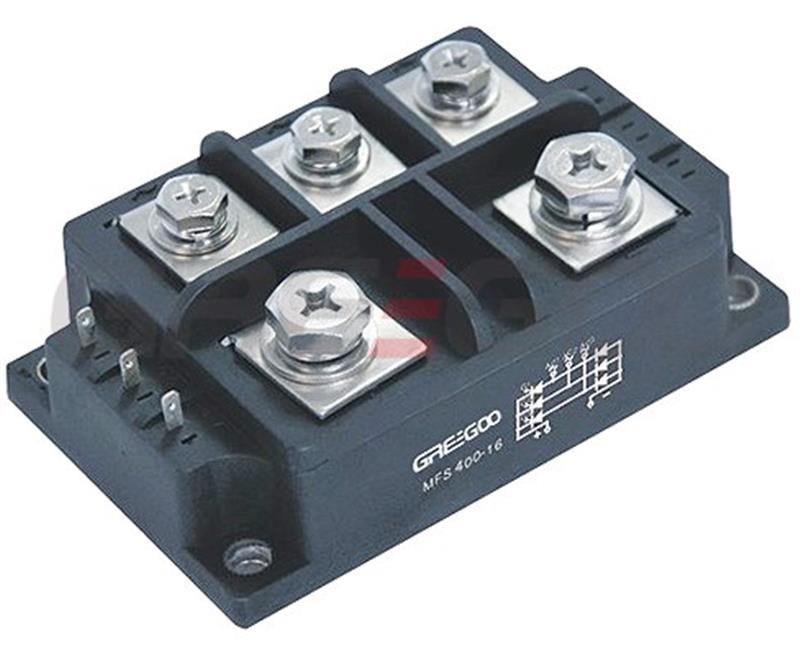

Three phase half controlled bridge rectifier 400A/500A
| MODEL | IFAV | VFM | VRRM | IRRM | IFSM |
| A | V | V | mA | A | |
| MFS-400-08 | 400 | 1.6 | 800 | 25 | 3600 |
| MFS-400-12 | 400 | 1.6 | 1200 | 25 | 3600 |
| MFS-400-16 | 400 | 1.6 | 1600 | 25 | 3600 |
| MFS-400-18 | 400 | 1.6 | 1800 | 25 | 3600 |
| MFS-500-08 | 500 | 1.6 | 800 | 35 | 4800 |
| MFS-500-12 | 500 | 1.6 | 1200 | 35 | 4800 |
| MFS-500-16 | 500 | 1.6 | 1600 | 35 | 4800 |
| MFS-500-18 | 500 | 1.6 | 1800 | 35 | 4800 |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
