Product Details

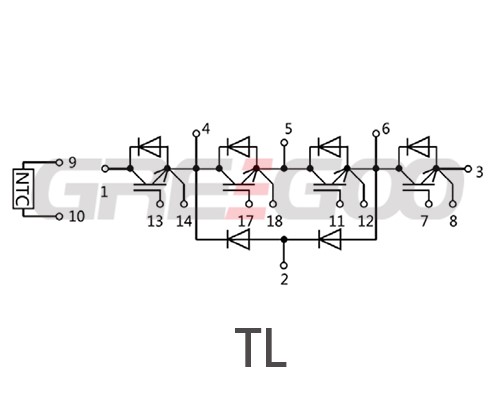

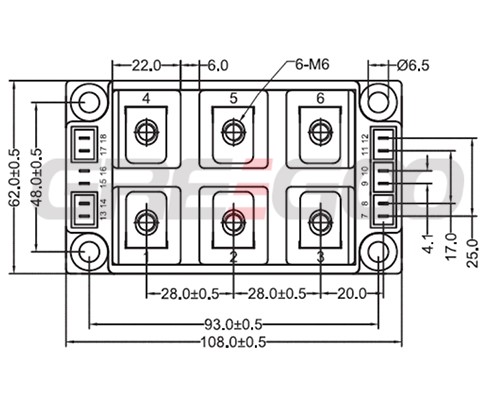

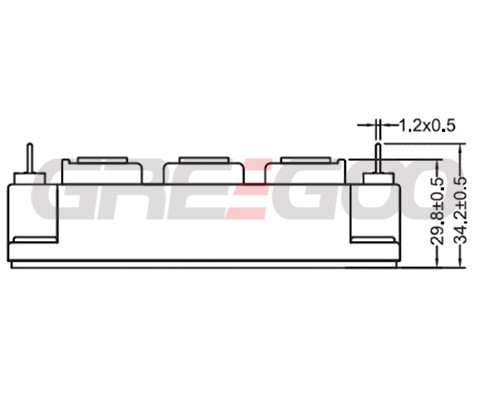

G7 NPC double chopper
| Type | VCES | IC | VCE(sat) | E(on off) | Rth(J-C) | Packages |
| Tc=25℃ | Tc=80℃ | Tj=25℃ | Tj=125℃ | |||
| (V) | (A) | (V) | (mJ) | (K/W) | ||
| G150CH120S | 1200 | 150 | 1.9 | 28.5 | 0.11 | G7 |
| G200CH120S | 1200 | 200 | 1.9 | 32 | 0.08 | G7 |
| G150CH120TE | 1200 | 150 | 1.9 | 29 | 0.12 | G7 |
| G200CH120TE | 1200 | 200 | 1.9 | 32.8 | 0.09 | G7 |
| G300CH120TE | 1200 | 300 | 1.9 | 66 | 0.07 | G7 |
| G150TL120TE | 1200 | 150 | 1.9 | 25 | 0.13 | G7 |
| G200TL120TE | 1200 | 200 | 1.9 | 30 | 0.1 | G7 |
| G300TL120TE | 1200 | 300 | 1.9 | 48 | 0.07 | G7 |
| G150TL120TK | 1200 | 150 | 2.2 | 33 | 0.12 | G7 |
| G200TL120TK | 1200 | 200 | 2.2 | 44 | 0.09 | G7 |
| G300TL120TK | 1200 | 300 | 2.2 | 64 | 0.07 | G7 |
| G200ML65TE | 650 | 200 | 1.7 | 19 | 0.16 | G7 |
| G300ML65TE | 650 | 300 | 1.7 | 32.5 | 0.11 | G7 |
| G200ML65TK | 650 | 200 | 1.9 | 16.4 | 0.12 | G7 |
| G300ML65TK | 650 | 300 | 1.9 | 25 | 0.1 | G7 |
