Product Details

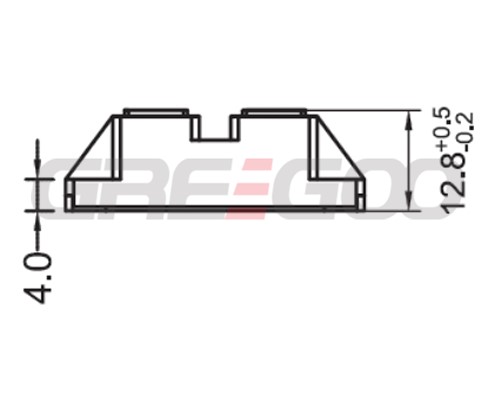

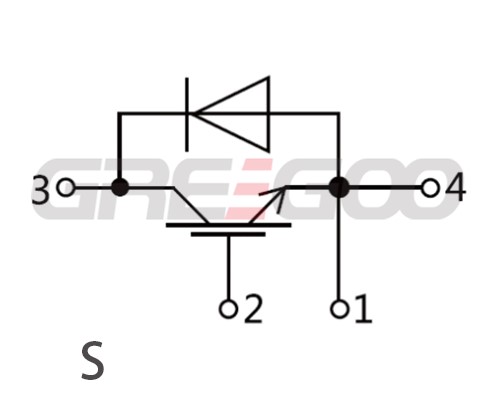

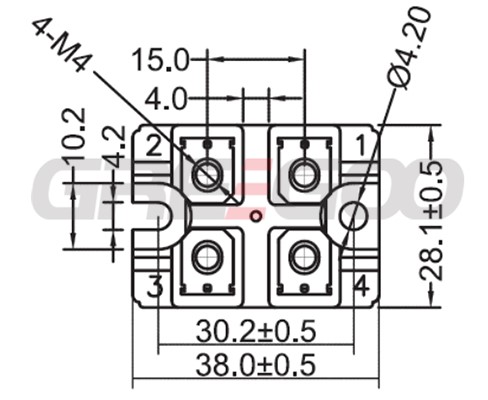

F4 single switch IGBT module
| Type | VCES | IC | VCE(sat) | E(on off) | Rth(J-C) | Packages |
| Tc=25℃ | Tc=80℃ | Tj=25℃ | Tj=125℃ | |||
| (V) | (A) | (V) | (mJ) | (K/W) | ||
| G50S120TE | 1200 | 50 | 1.9 | 12.5 | 0.3 | F4 |
| G75S120TE | 1200 | 75 | 1.9 | 16.8 | 0.19 | F4 |
| G50S120TK | 1200 | 50 | 2.2 | 9.9 | 0.28 | F4 |
| G75S120TK | 1200 | 75 | 2.2 | 12.9 | 0.16 | F4 |
| G100S60TK | 600 | 100 | 1.9 | 3.7 | 0.2 | F4 |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
