Product Details

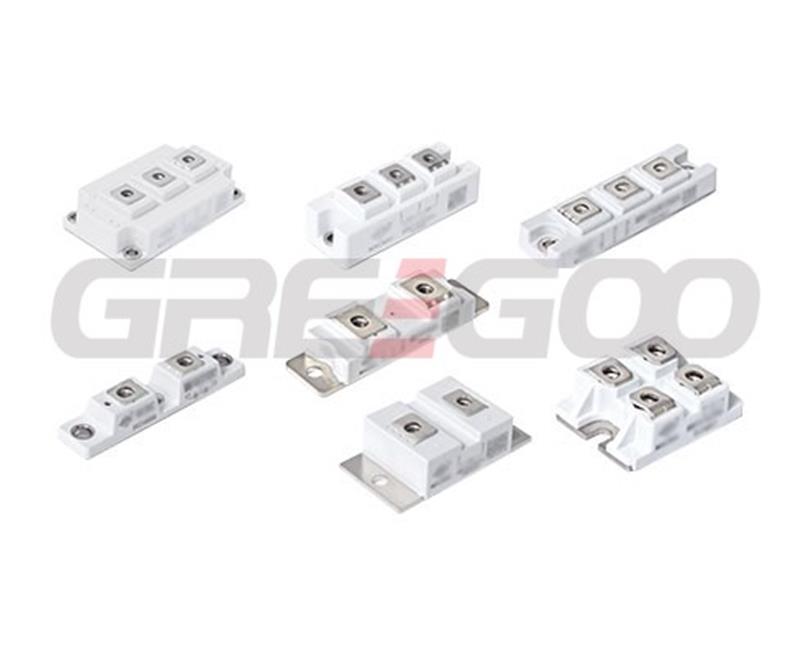

FRED modules

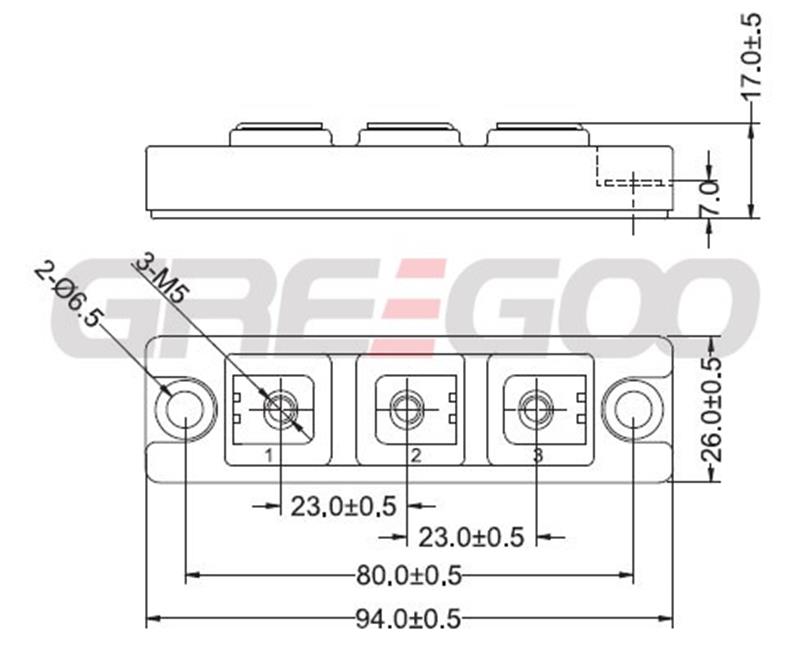

| Part | Vrrm | If(av) | Ifsm | Vf @ If Tj=125℃ | Trr | Rθjc | Inside | Package | |
| Number | Duty=0.5 | t=10ms | Tj=25℃ | Circuit | Dimensions | ||||
| Tc=110℃ | Tj=45℃ | ||||||||
| (V) | (A) | (A) | (V) | (A) | (ns) | ( ℃/W) | (MM) | ||

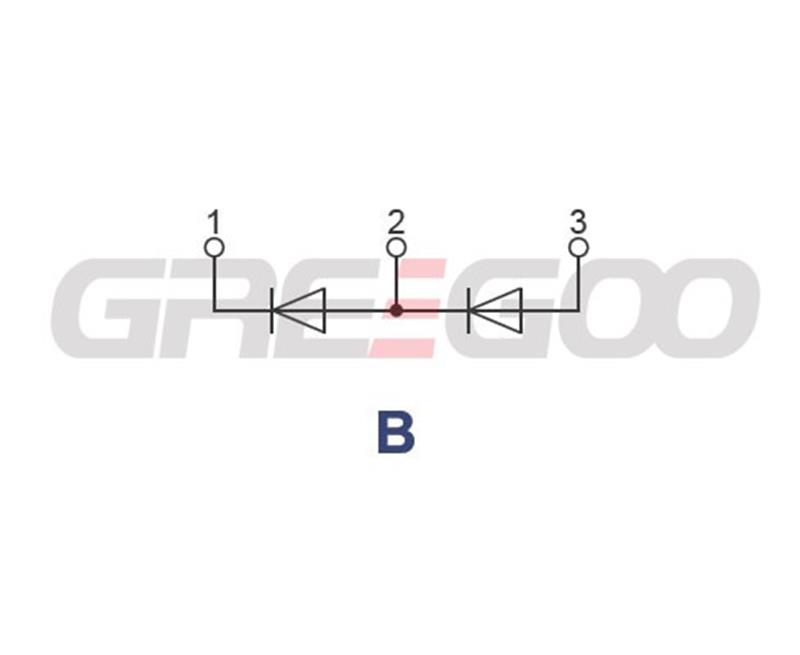

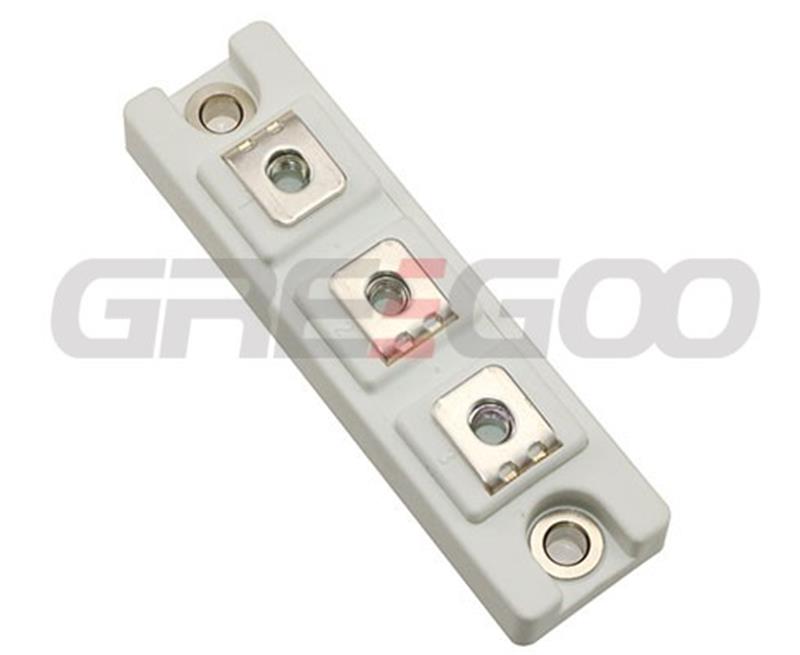

| GF150N060B6B | 600 | 2×150 | 1400 | 1.15 | 150 | 130 | 0.34 | B | 94X26X17 |
| GF100N120B | 1200 | 2×100 | 1100 | 1.6 | 100 | 135 | 0.44 | B | 94X26X17 |

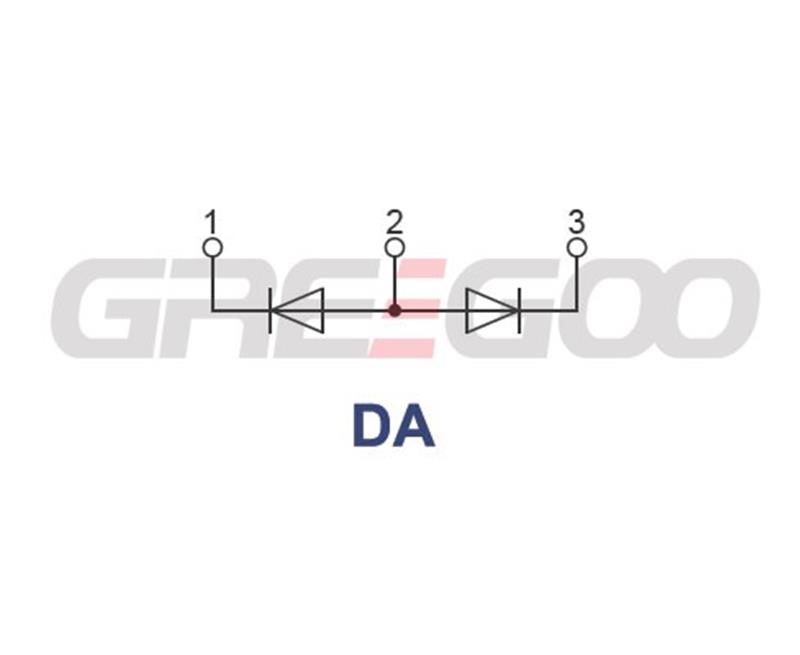

| GF200N070DA | 700 | 2×100 | 1100 | 1.2 | 100 | 140 | 0.34 | DA | 94X26X17 |
| GF200N120DA | 1200 | 2×100 | 1100 | 1.77 | 100 | 150 | 0.44 | DA | 94X26X17 |

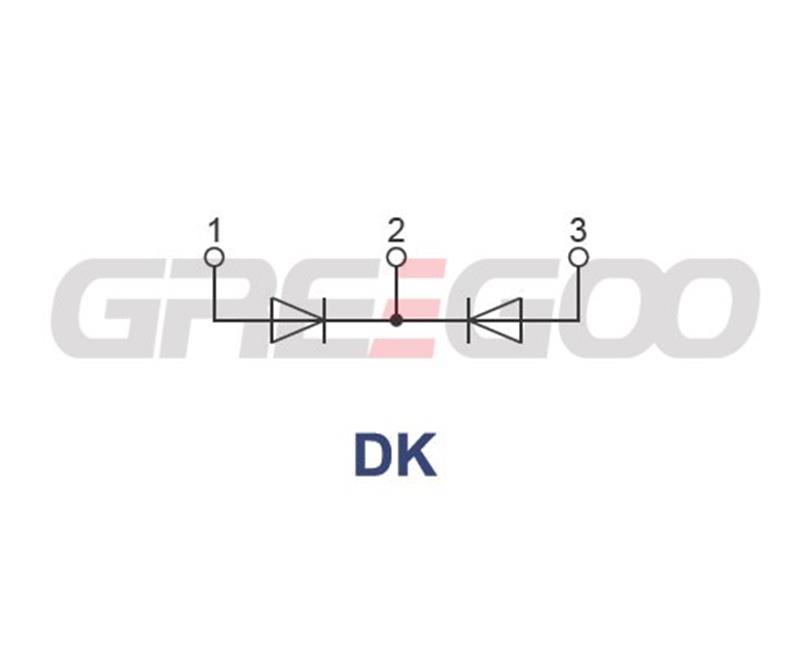

| GF400N020DK2B | 200 | 2×200 | 2000 | 0.9 | 200 | 135 | 0.34 | DK | 94X26X17 |
| GF200N070DK | 700 | 2×100 | 1200 | 1.2 | 100 | 140 | 0.34 | DK | 94X26X17 |
| GF200N120DK | 1200 | 2×100 | 1100 | 1.77 | 100 | 150 | 0.44 | DK | 94X26X17 |
