Fast switching thyristors
Fast switching thyristor/Fast turn off thyristors
| Feature | Typical Application |
|

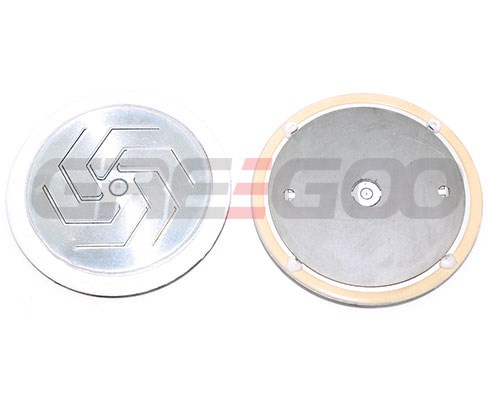

Interdigitated amplifying gates Fast turn-on and high di/dt low switching losses Short turn-off time Hermetic metal case with ceramic insulators |
Inductive heating Electronic welder Self-commutated inverters Ac motor speed control General power switching applications |
| Model |
VDRM
VRRM |
IT(AV) |
tq
|
ITSM
|
dv/dt
|
di/dt
|
VTM/ITM
|
VTO
|
rT
|
Rth(j-c)
|
Rth(c-hs)
|
Tjm
|
Mounting Force |
Dimension (IdxOd Height) |
|
|
Tc 55°C |
125 °C
|
10ms
|
125 °C
|
125 °C
|
125 °C
|
|
|
|
|
|
|||
|
|
V
|
A |
μs
|
KA
|
V/μs
|
A/μs
|
V/A
|
V
|
mΩ
|
°C/W
|
°C/W
|
°C
|
kN
|
|
|
G30KKE
|
800-1600
|
500 |
18-50
|
4.3
|
500
|
1200
|
2.82/1000
|
1.50
|
1.32
|
0.045
|
0.010
|
125
|
5.3-10
|
25x12 14mm |
|
G38KKE
|
800-1800
|
750 |
18-50
|
9.5
|
500
|
1200
|
2.35/1400
|
1.40
|
0.68
|
0.035
|
0.008
|
125
|
10-20
|
34x58 26mm |
|
G40KKE
|
800-1800
|
1080
|
18-50
|
10
|
500
|
1200
|
1.98/1800
|
1.30
|
0.38
|
0.028
|
0.0075
|
125
|
15-20
|
42x66 26mm |
|
G45KKE
|
800-1800
|
1220
|
18-50
|
12
|
500
|
1200
|
2.18/2400
|
1.32
|
0.36
|
0.024
|
0.006
|
125
|
18-25
|
45x69 26mm |
|

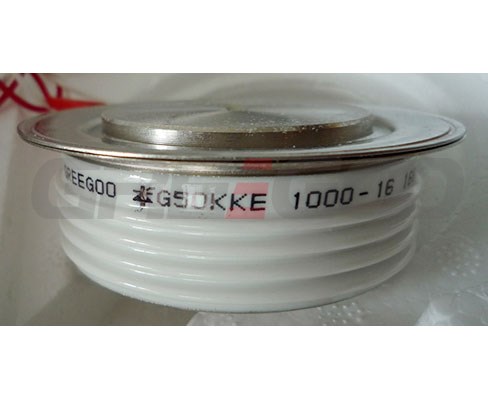

G50KKE
|
800-1800
|
1330
|
18-50
|
16
|
500
|
1200
|
2.22/2000
|
1.56
|
0.33
|
0.020
|
0.005
|
125
|
19-26
|
47x74 26mm |
|

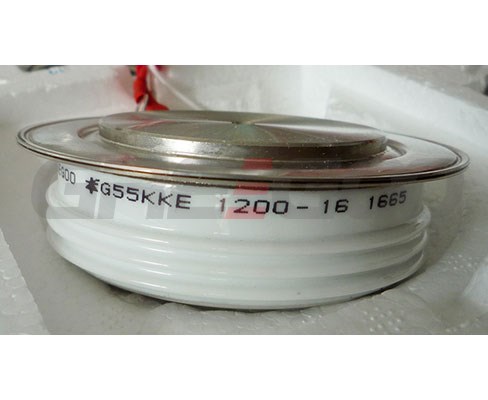

G55KKE
|
800-1800
|
1460
|
18-50
|
17
|
500
|
1200
|
2.47/3000
|
1.51
|
0.32
|
0.018
|
0.004
|
125
|
21-30
|
55x84 26mm |
|
G60KKE
|
800-1800
|
1660
|
18-50
|
18
|
500
|
1200
|
2.32/3000
|
1.48
|
0.28
|
0.016
|
0.004
|
125
|
21-30
|
55x84 26mm |
|
G65KKE
|
800-1800
|
2080
|
18-50
|
27
|
500
|
1200
|
2.10/3000
|
1.41
|
0.23
|
0.013
|
0.0035
|
125
|
27-34
|
63x100 26mm
|
|
G70KKE
|
800-1800
|
2240
|
30-60
|
28
|
500
|
1200
|
2.29/4000
|
1.45
|
0.21
|
0.012
|
0.003
|
125
|
30-40
|
63x100 26mm |
|
G76KKE
|
800-1800
|
2830
|
30-60
|
31
|
500
|
1200
|
1.94/4000
|
1.22
|
0.18
|
0.010
|
0.003
|
125 |
35-47
|
73x110 26mm |
| G89KKE | 800-1800 | 4240 | 30-60 | 45 | 500 | 1200 | 1.71/5000 | 1.11 | 0.12 | 0.007 | 0.002 | 125 | 63-84 | 84x119 26mm |
|
G65KKG
|
1900-2500
|
1840
|
40-80
|
21
|
500
|
1200
|
2.62/3600
|
1.43
|
0.33
|
0.013
|
0.0035
|
125
|
27-34
|
63x100 26mm |
|
G70KKG
|
1900-2500
|
2160
|
40-80
|
23
|
500
|
1200
|
2.40/4000
|
1.48
|
0.23
|
0.012
|
0.003
|
125
|
30-40
|
63x100 26mm
|
|
G76KKG
|
1900-2500
|
2560
|
40-80
|
31
|
500
|
1200
|
2.48/5000
|
1.48
|
0.20
|
0.010
|
0.003
|
125
|
35-47
|
73x110 26mm
|
|
G89KKG
|
1900-2500
|
3330
|
40-110
|
44
|
500
|
1200
|
2.34/5000
|
1.29
|
0.21
|
0.007
|
0.002
|
125
|
63-84
|
84x119 26mm
|
|
G100KKG
|
1900-3000
|
4450
|
40-120
|
62
|
500
|
1200
|
2.25/5000
|
1.50
|
0.15
|
0.005
|
0.0015
|
125
|
81-108
|
100x143 26mm |
|
G70KKJ |
3100-4000 | 1770 | 50-100 | 18 | 500 | 1200 | 3.40/2000 | 1.65 | 0.38 | 0.012 | 0.003 | 125 | 30-40 | 63x100 26mm |
| G76KKJ | 3100-4000 | 1840 | 50-100 | 23 | 500 | 1200 | 3.40/2000 | 1.89 | 0.42 | 0.010 | 0.003 | 125 | 35-47 | 73x110 26mm |
|
G89KKJ
|
3100-4000
|
3050
|
<300 |
35
|
500
|
1200
|
2.20/3000
|
1.48
|
0.24 |
0.007
|
0.002
|
125
|
63-84
|
84x119 26mm |
|
G100KKJ
|
3100-4000
|
4100
|
<300 |
44
|
500
|
1200
|
2.20/4000
|
1.40
|
0.20
|
0.005
|
0.0015
|
125
|
81-108
|
100x143 26mm |
| H76KKM | 4100-5200 | 2240 | 60-150 | 25 | 500 | 1200 | 3.20/2000 | 1.68 | 0.26 | 0.010 | 0.003 | 125 | 35-47 | 73x110 26mm |
|
H89KKM
|
4500-5500
|
3300
|
50-150
|
30
|
500
|
1200
|
3.20/2200
|
1.58
|
0.17
|
0.007
|
0.002
|
125
|
63-84
|
78x119 26mm |
|
H100KKM
|
4500-5200
|
4300
|
60-150
|
40
|
500
|
1200
|
3.40/2500
|
1.58
|
0.15
|
0.005
|
0.0015
|
125
|
81-108
|
100x149 26mm |
|
G89KKM
|
4100-4800
|
2970 |
<300
|
35
|
500 | 1200 |
2.30/3000
|
1.55
|
0.25
|
0.007
|
0.002
|
125
|
63-84
|
78x119 26mm |
|
G100KKM
|
4100-4800
|
4020
|
<300
|
44
|
500
|
1200 |
2.30/4000
|
1.50
|
0.20
|
0.005
|
0.0015
|
125
|
81-108
|
100x149 26mm |
