Dual diode module 800A 1000A 1200A
Home Products Thyristor Diode ModuleDual Diode ModuleDual diode module 800A 1000A 1200A
Product Details

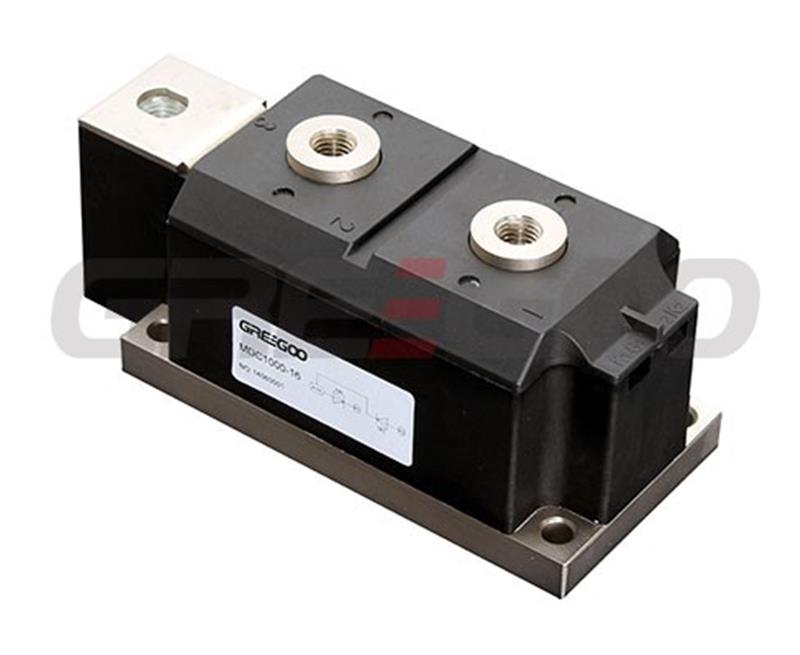

Dual diode module 800A 1000A 1200A
| Symbol | Meaning |
| M | Module |
| D | Rectifier diode |
| C | C - in series, A - common anode, K - common cathode, X - anti-parallel |
| 26 | Average current |
| 12 | Voltage code: code x 100 = VRRM |
| Eg. | MDC26-12, Dual diode module, in series connection, 26A, 1600V. |

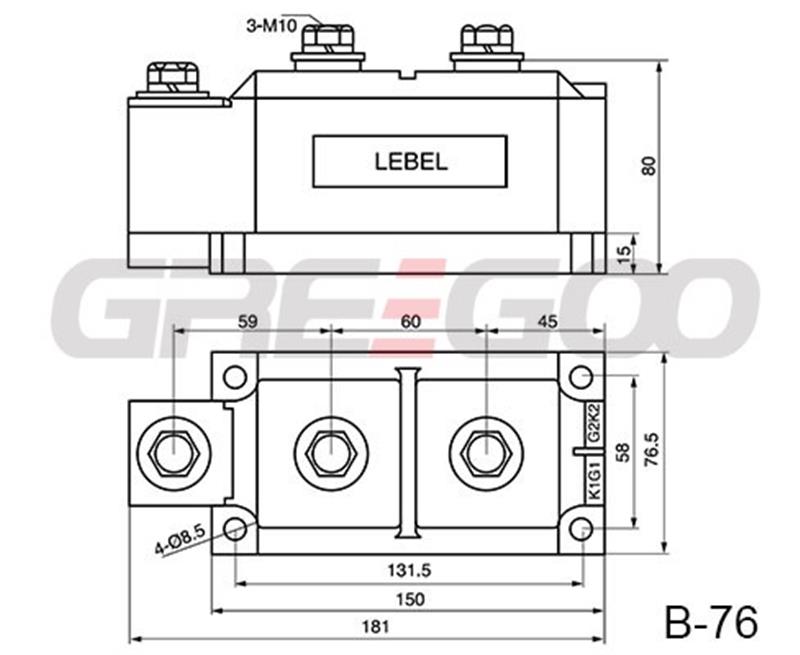

| Model No. | IF(AV) | VRRM | Package |
| MDC800-06 | 800A | 600V | B76 |
| MDC800-10 | 800A | 1000V | B76 |
| MDC800-12 | 800A | 1200V | B76 |
| MDC800-16 | 800A | 1600V | B76 |
| MDC800-18 | 800A | 1800V | B76 |
| MDC1000-06 | 1000A | 600V | B76 |
| MDC1000-10 | 1000A | 1000V | B76 |
| MDC1000-12 | 1000A | 1200V | B76 |
| MDC1000-16 | 1000A | 1600V | B76 |
| MDC1000-18 | 1000A | 1800V | B76 |
| MDC1200-06 | 1200A | 600V | B76 |
| MDC1200-10 | 1200A | 1000V | B76 |
| MDC1200-12 | 1200A | 1200V | B76 |
| MDC1200-16 | 1200A | 1600V | B76 |
| MDC1200-18 | 1200A | 1800V | B76 |
| MDK800-06 | 800A | 600V | B76 |
| MDK800-10 | 800A | 1000V | B76 |
| MDK800-12 | 800A | 1200V | B76 |
| MDK800-16 | 800A | 1600V | B76 |
| MDK800-18 | 800A | 1800V | B76 |
| MDK1000-06 | 1000A | 600V | B76 |
| MDK1000-10 | 1000A | 1000V | B76 |
| MDK1000-12 | 1000A | 1200V | B76 |
| MDK1000-16 | 1000A | 1600V | B76 |
| MDK1000-18 | 1000A | 1800V | B76 |
| MDK1200-06 | 1200A | 600V | B76 |
| MDK1200-10 | 1200A | 1000V | B76 |
| MDK1200-12 | 1200A | 1200V | B76 |
| MDK1200-16 | 1200A | 1600V | B76 |
| MDK1200-18 | 1200A | 1800V | B76 |
| MDA800-06 | 800A | 600V | B76 |
| MDA800-10 | 800A | 1000V | B76 |
| MDA800-12 | 800A | 1200V | B76 |
| MDA800-16 | 800A | 1600V | B76 |
| MDA800-18 | 800A | 1800V | B76 |
| MDA1000-06 | 1000A | 600V | B76 |
| MDA1000-10 | 1000A | 1000V | B76 |
| MDA1000-12 | 1000A | 1200V | B76 |
| MDA1000-16 | 1000A | 1600V | B76 |
| MDA1000-18 | 1000A | 1800V | B76 |
| MDA1200-06 | 1200A | 600V | B76 |
| MDA1200-10 | 1200A | 1000V | B76 |
| MDA1200-12 | 1200A | 1200V | B76 |
| MDA1200-16 | 1200A | 1600V | B76 |
| MDA1200-18 | 1200A | 1800V | B76 |
| MDX800-06 | 800A | 600V | B76 |
| MDX800-10 | 800A | 1000V | B76 |
| MDX800-12 | 800A | 1200V | B76 |
| MDX800-16 | 800A | 1600V | B76 |
| MDX800-18 | 800A | 1800V | B76 |
| MDX1000-06 | 1000A | 600V | B76 |
| MDX1000-10 | 1000A | 1000V | B76 |
| MDX1000-12 | 1000A | 1200V | B76 |
| MDX1000-16 | 1000A | 1600V | B76 |
| MDX1000-18 | 1000A | 1800V | B76 |
| MDX1200-06 | 1200A | 600V | B76 |
| MDX1200-10 | 1200A | 1000V | B76 |
| MDX1200-12 | 1200A | 1200V | B76 |
| MDX1200-16 | 1200A | 1600V | B76 |
| MDX1200-18 | 1200A | 1800V | B76 |
