Avalanche Rerctifier Diode DL212
| Type | IRRM | IF(AV) | IFRSM | IFSM | I2t | VFM/IFM | TTO | PRSM | rT | Rth(j-c) | M2 | Wt | Outline |
| TC,℃ | 10ms | 10ms | 100mks | ||||||||||
| mA | A | A | kA | A2S103 | V/A | V | kW | mΩ | ℃/W | N/m | kg | ||

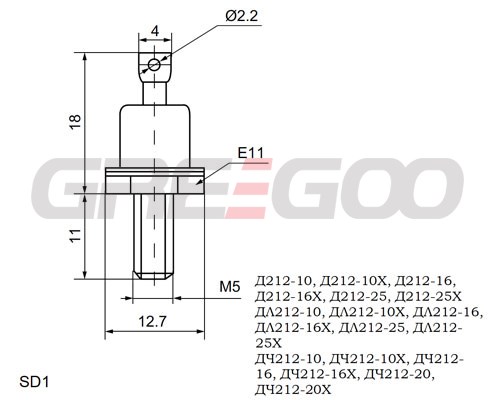

| DL212-10 | 6 | 10 | 15 | 0.25 | 0.31 | 1.35/31 | 0.9 | 2.5 | 17.5 | 2.7 | 0.9-1.1 | 0.006 | RSD1 |
| DL212-16 | 6 | 16 | 25 | 0.27 | 0.36 | 1.35/50 | 0.9 | 2.5 | 10.5 | 1.75 | 0.9-1.1 | 0.006 | |
| DL212-25 | 6 | 25 | 39 | 0.34 | 0.58 | 1.35/78 | 0.9 | 2.5 | 6.1 | 1.1 | 0.9-1.1 | 0.006 |
