Avalanche Rerctifier Diode DL171
Home Products Stud Rectifier DiodeAvalanche DiodesAvalanche Rerctifier Diode DL171
Product Details

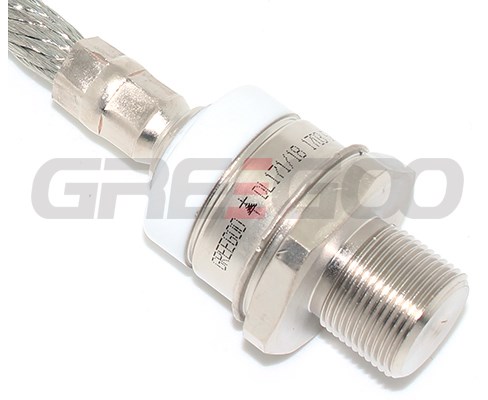

Avalanche Rerctifier Diode DL171
| Type | IRRM | IF(AV) | IFRSM | IFSM | I2t | VFM/IFM | TTO | PRSM | rT | Rth(j-c) | M2 | Wt | Outline |
| TC,℃ | 10ms | 10ms | 100mks | ||||||||||
| mA | A | A | kA | A2S103 | V/A | V | kW | mΩ | ℃/W | N/m | kg | ||

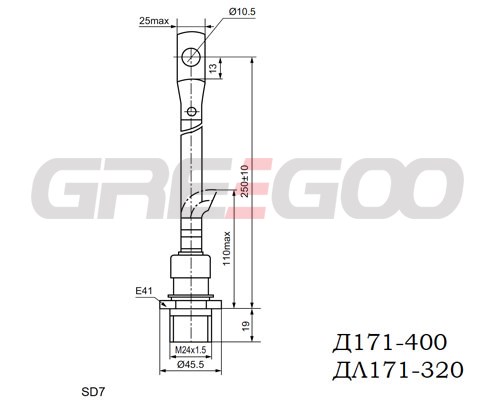

| DL171-320 | 25 | 320 | 450 | 7.5 | 200 | 1.35/900 | 0.9 | 16 | 0.65 | 0.13 | 20-35 | 0.46 | RSD7 |
| DL171-400 | 25 | 400 | 600 | 9.25 | 280 | 1.35/1200 | 0.9 | 16 | 0.55 | 0.095 | 20-35 | 0.46 |
