Avalanche Rectifier Diode DL151
Home Products Stud Semiconductor DeviceAvalanche DiodesAvalanche Rectifier Diode DL151
Product Details

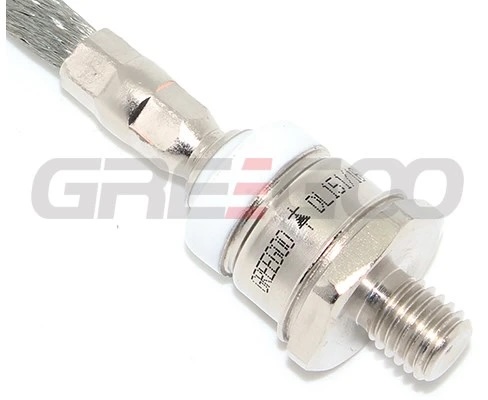

Avalanche Rectifier Diode DL151
| Type | IRRM | IF(AV) | IFRSM | IFSM | I2t | VFM/IFM | TTO | PRSM | rT | Rth(j-c) | M2 | Wt | Outline |
| TC,℃ | 10ms | 10ms | 100mks | ||||||||||
| mA | A | A | kA | A2S103 | V/A | V | kW | mΩ | ℃/W | N/m | kg | ||

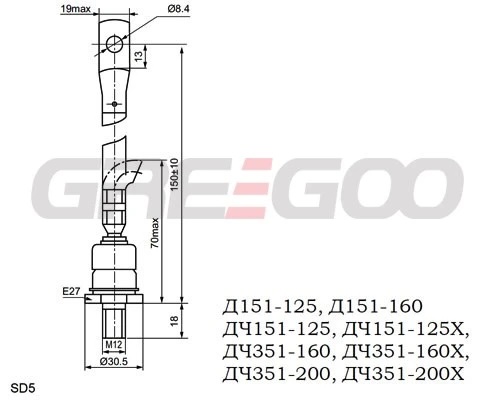

| DL151-160 | 15 | 150 | 220 | 4.5 | 45 | 1.35/392 | 0.95 | 25 | 1.3 | 0.3 | 10-20 | 0.165 | RSD5 |
