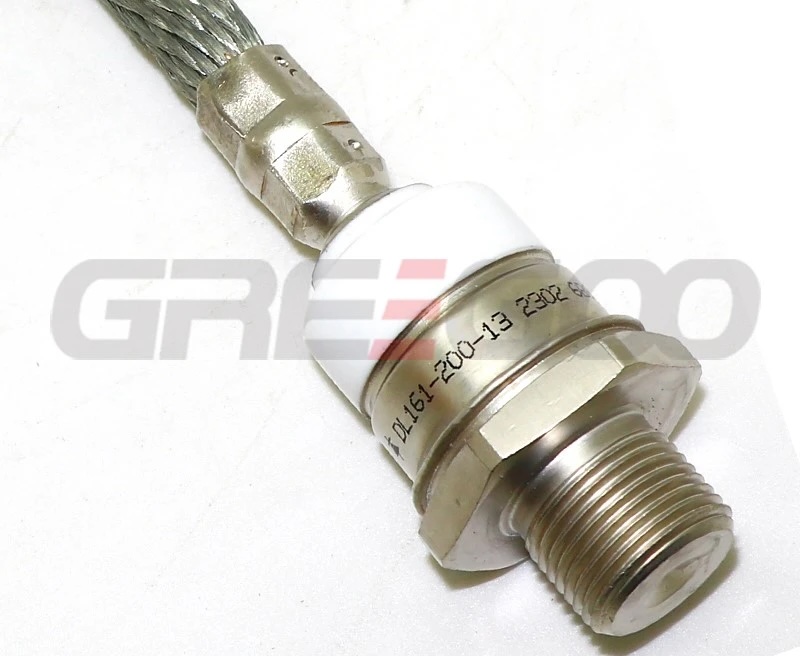

Avalanche Rectifier Diode DL161
| Type | IRRM | IF(AV) | IFRSM | IFSM | I2t | VFM/IFM | TTO | PRSM | rT | Rth(j-c) | M2 | Wt | Outline |
| TC,℃ | 10ms | 10ms | 100mks | ||||||||||
| mA | A | A | kA | A2S103 | V/A | V | kW | mΩ | ℃/W | N/m | kg | ||
| DL161-200 | 25 | 200 | 300 | 5.5 | 100 | 1.35/600 | 0.9 | 16 | 0.85 | 0.25 | 20-30 | 0.265 | RSD6 |
| DL161-250 | 25 | 250 | 375 | 6.4 | 150 | 1.35/750 | 0.9 | 16 | 0.75 | 0.15 | 20-30 | 0.265 |
