Avalanche Diode DL232
Home Products Stud Semiconductor DeviceAvalanche DiodesAvalanche Diode DL232
Product Details
Avalanche Diode DL232
| Type | IRRM | IF(AV) | IFRSM | IFSM | I2t | VFM/IFM | TTO | PRSM | rT | Rth(j-c) | M2 | Wt | Outline |
| TC,℃ | 10ms | 10ms | 100mks | ||||||||||
| mA | A | A | kA | A2S103 | V/A | V | kW | mΩ | ℃/W | N/m | kg | ||

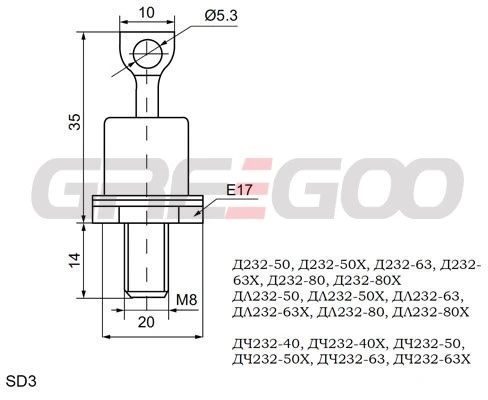

| DL232-50 | 10 | 50 | 78 | 12 | 72 | 1.35/157 | 0.83 | 5 | 3.1 | 0.6 | 5.0-6.2 | 0.027 | RSD3 |
| DL232-63 | 10 | 63 | 98 | 14 | 98 | 1.35/198 | 0.83 | 5 | 2.8 | 0.5 | 5.0-6.2 | 0.027 | |
| DL232-80 | 10 | 80 | 125 | 15 | 11.25 | 1.35/250 | 0.83 | 5 | 2.1 | 0.4 | 5.0-6.2 | 0.027 |
