VUE130-06NO7 Fast Recovery Epitaxial Diode
Home Products IGBT Power ModuleFast Recovery Diode ModulesVUE130-06NO7 Fast Recovery Epitaxial Diode
Product Details
VUE130-06NO7 Fast Recovery Epitaxial Diode
Features
• Package with DCB ceramic base plate
• Improved temperature and power cycling
• Planar passivated chips
• Very low forward voltage drop
• Very low leakage current
Applications
• Supplies for DC power equipment
• Input and output rectifiers for high frequency
• Battery DC power supplies
• Field supply for DC motors

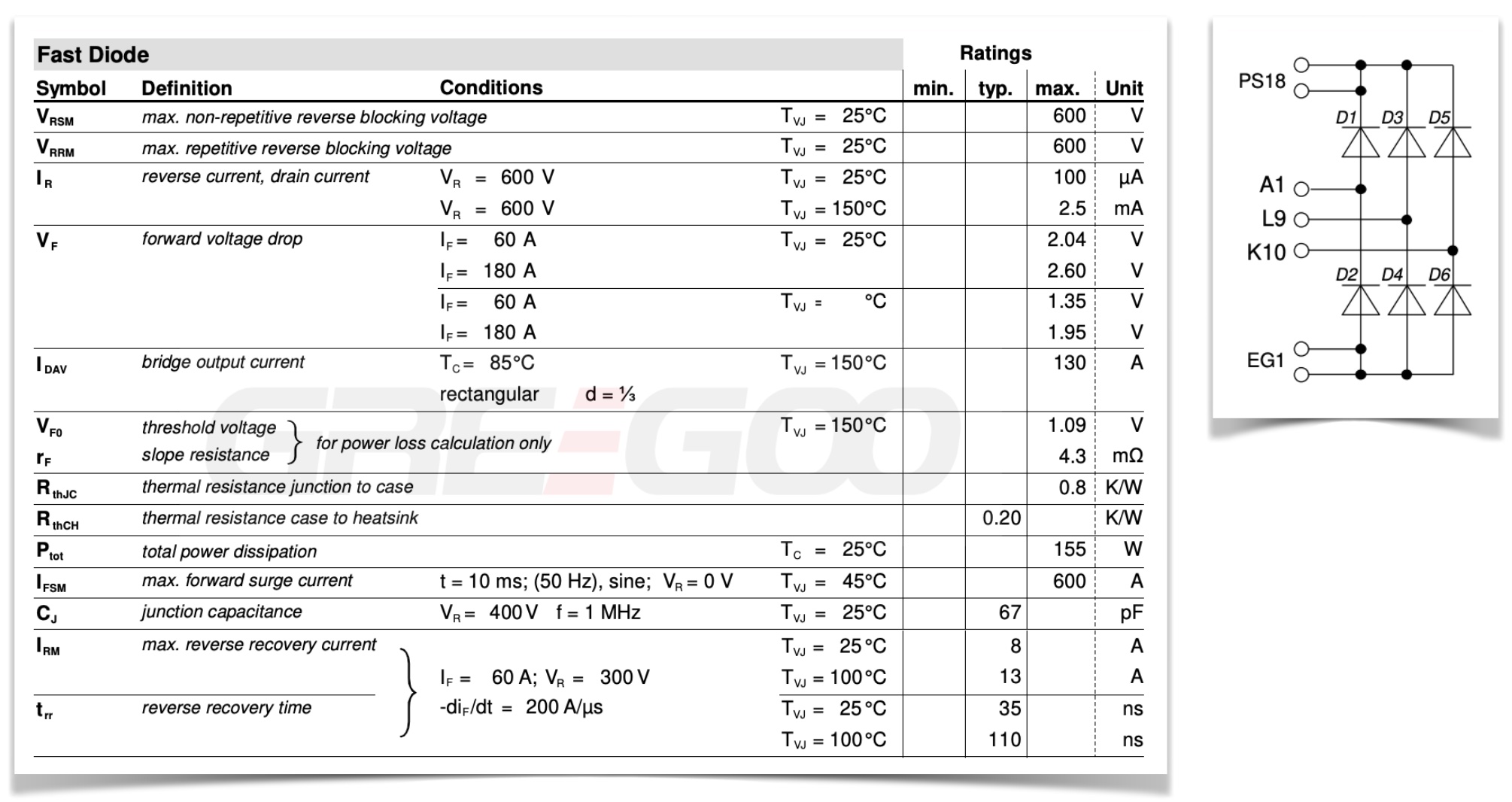

Specification

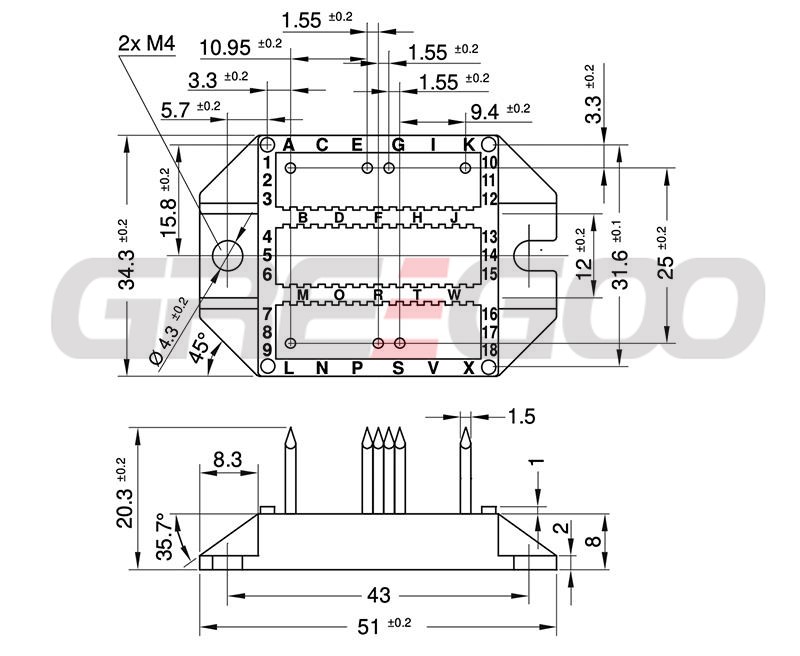

VUE130-06NO7 FRED Module
