Product Details

VBE100-06NO7 High Performance Fast Recovery Diode

Features

• Planar passivated chips
• Very low leakage current
• Very short recovery time
• Improved thermal behaviour
• Very low Irm-values
• Very soft recovery behaviour
• Avalanche voltage rated for reliable operation
• Soft reverse recovery for low EMI/RFI
• Low Irm reduces:
- Power dissipation within the diode
- Turn-on loss in the commutating switch

Applications

• Antiparallel diode for high-frequency switching devices
• Antisaturation diode
• Snubber diode
• Free wheeling diode
• Rectifiers in switch mode power supplies (SMPS)
• Uninterruptible power supplies (UPS)

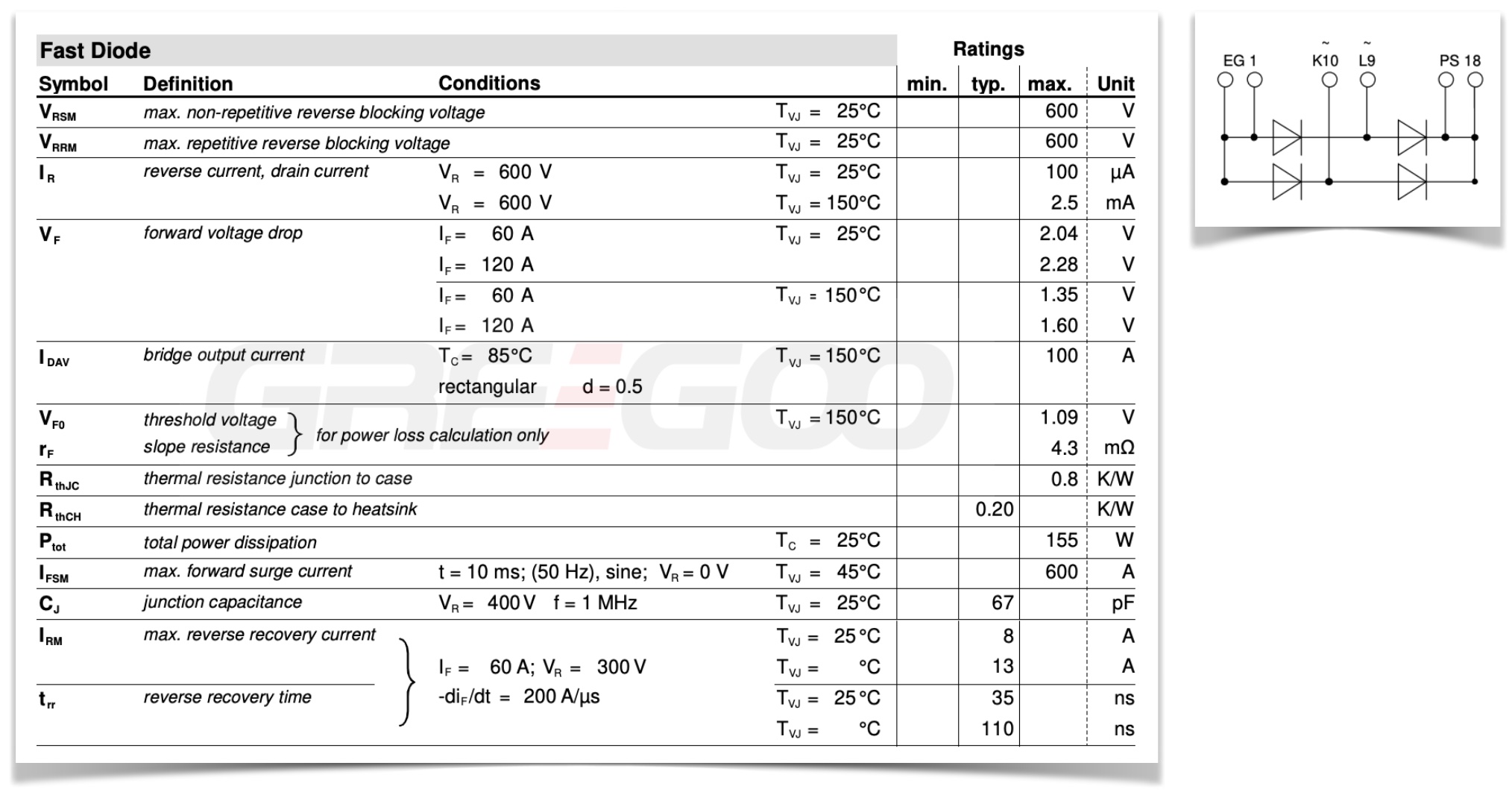

Specification

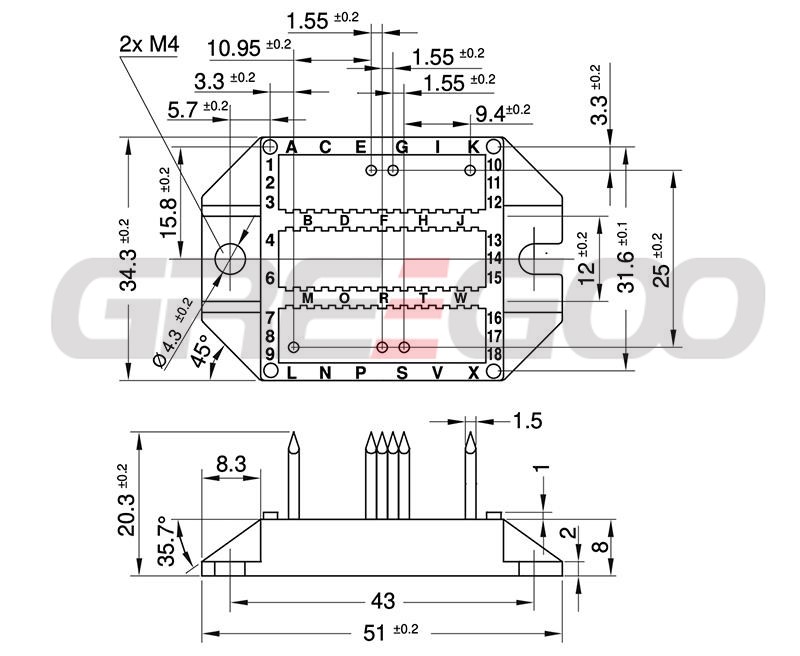

VBE100-06NO7 FRED Module

VBE100-06NO7
