Triac TC152 TC142 TC132 TC122 TC112
Home Products Stud Screw Fit ThyristorStud Thyristor (Russian version)Triac TC152 TC142 TC132 TC122 TC112
Product Details

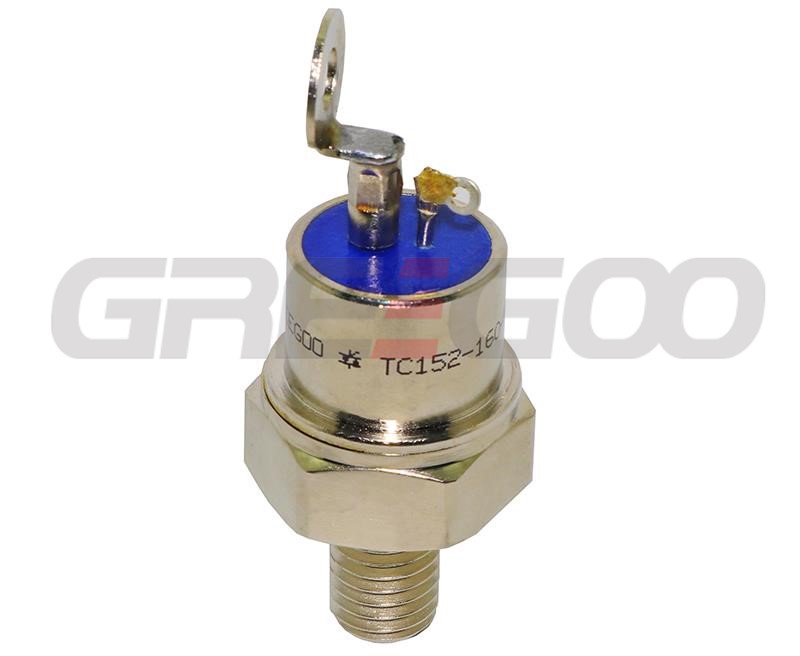

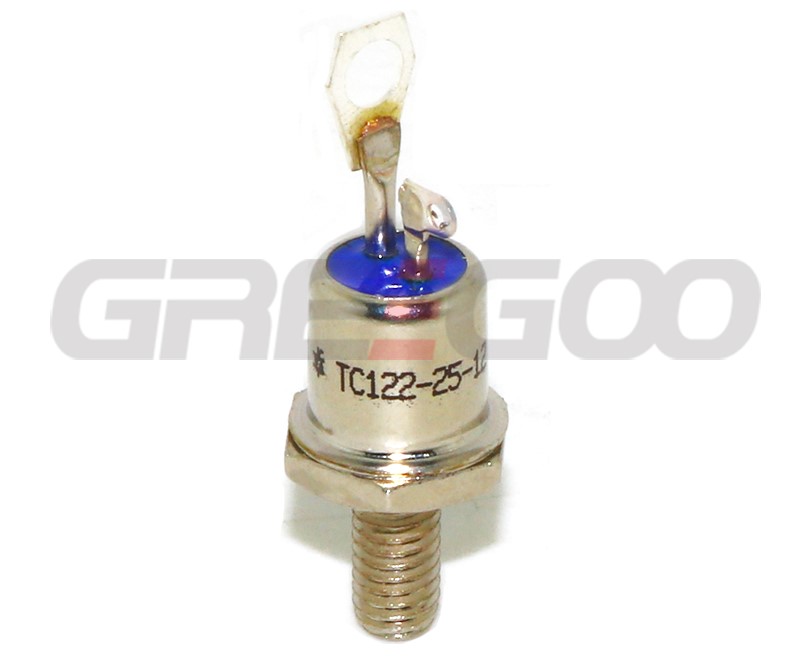

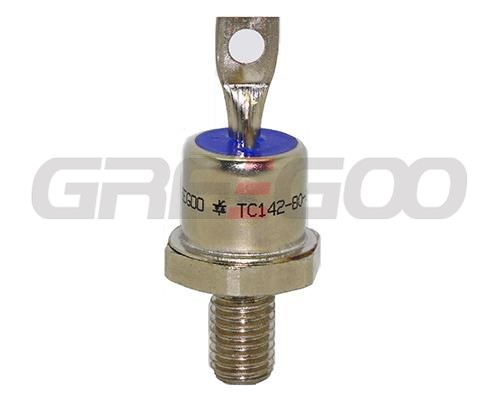

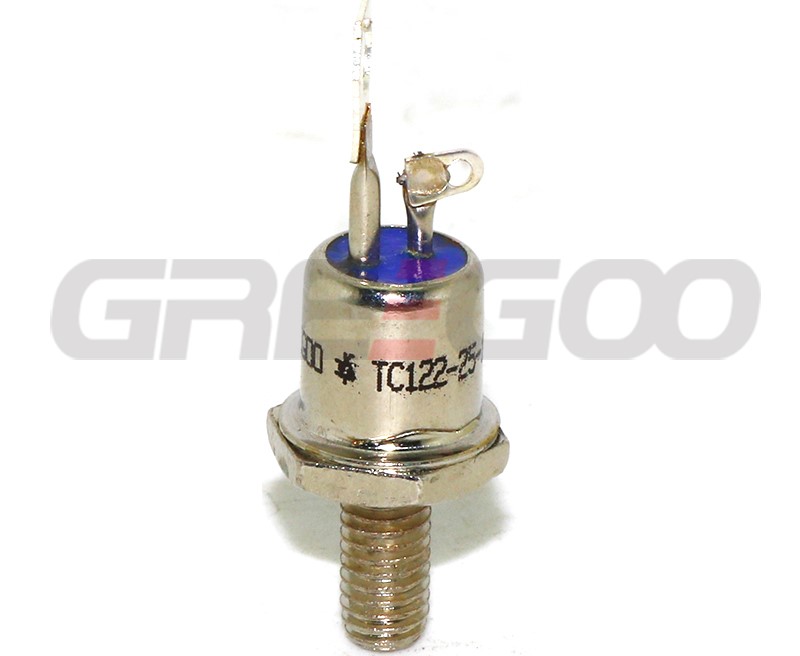

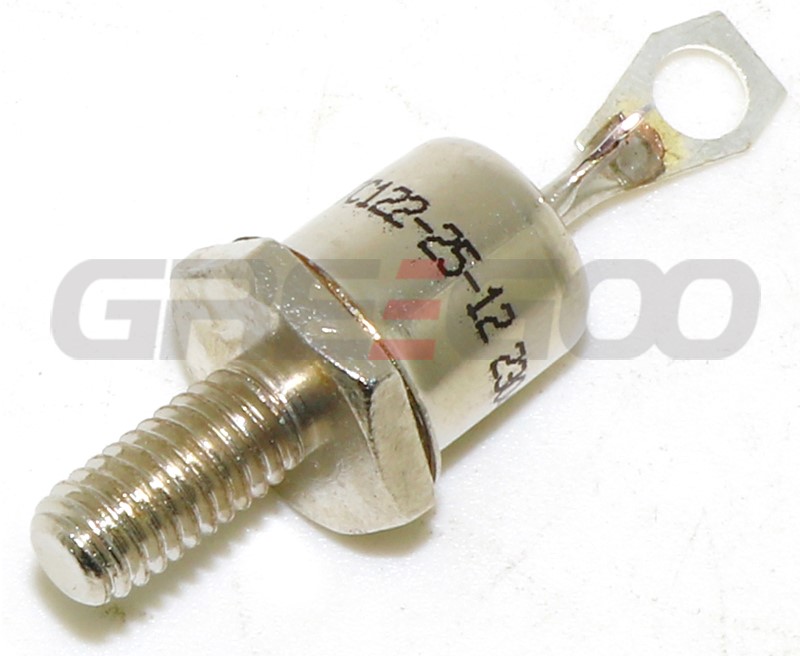

Triac TC152 TC142 TC132 TC122 TC112
| Model | UDRM, | ITRMS (Tc) | ITSM, | UTM (ITM) | Rthjc, |
| TS/TC | V | A (°C) | А | V (A) | °C/W |
| TS112-10 | 100-1200 | 10 (85) | 70 | 1,85 (14) | 2,5 |
| TS112-16 | 100-1200 | 16 (85) | 100 | 1,85 (23) | 1,55 |
| TS122-20 | 100-1200 | 20 (85) | 120 | 1,85 (28) | 1,3 |
| TS122-25 | 100-1200 | 25 (85) | 200 | 1,80 (35) | 0,9 |
| TS132-40 | 100-1200 | 40 (85) | 250 | 1,85 (56) | 0,65 |
| TS132-50 | 100-1200 | 50 (85) | 450 | 1,80 (70) | 0,52 |
| TS142-63 | 100-1200 | 63 (85) | 480 | 1,80 (89) | 0,44 |
| TS142-80 | 100-1200 | 80 (85) | 580 | 1,80 (113) | 0,34 |
| TS152-100 | 200-1400 | 100 (85) | 800 | 1,65 (141) | 0,27 |
| TS152-125 | 200-1400 | 125 (85) | 1000 | 1,65 (176) | 0,22 |
| TS152-160 | 200-1400 | 160 (85) | 1200 | 1,55 (226) | 0,2 |
