Part Numbers	VRRM	ldAV	Tc	lFSM	V(F0)	Housing	Equivalent
		@Tc		10ms,45℃	@Tvj max		Equivalent
	V	A	℃	A	V		IXYS	SEMIKRON/SANREX
GD25MT08~18	800~1800	25	85	380	0.77	MT	VUO25-16NO8/26MT160
GD30RDA08~18	800~1800	30	117	300	1.30	RDA		DF30AA160
GD30SDB08~18	800~1800	30	100	320	0.85	SDB		SKD30/16A1
GD31SCA08~18	800~1800	30	100	320	0.85	SCA		SKD31-16
GD35XDB08~18	800~1800	30	100	320	0.85	XDB	VU035-16NO7
GD36MT08~18	800~1800	35	85	450	0.76	MT	VUO36-16NO8/36MT160
GD50MT08~18	800~1800	50	85	500	0.76	MT	TM5016
GD50REA08~18	800~1800	50	114	700	1.20	REA		DF50AA160
GD50MCA08~18	800~1800	50	100	500	1.40	MCA	MSD50-16/MMD50L160X
GD51SDA08~18	800~1800	50	100	700	0.80	SDA		SKD51-16
GD52XWD08~18	800~1800	50	100	350	0.80	XWD	VUO52-16NO1
GD53SWE08~18	800~1800	50	100	350	0.80	SWE		SKD53-16
GD55SDC16	800~1800	50	100	350	0.80	SDC		SKD50/16A3
GD55XDC16	800~1800	60	85	750	0.75	XDC	VU055-16NO7
GD60XWC08~18	800~1800	60	110	700	0.77	XWC	VU060-16NO3
GD60REB08~18	800~1800	60	112	1000	1.30	REB		DF60AA160
GD60RLA08~18	800~1800	60	111	800	1.30	RLA		DF60LA160
GD60RLB08~18	800~1800	60	111	800	1.30	RLB		DF60LB160
GD68XWA08~16	800~1600	70	105	300	0.82	XWA	VUO68-16NO7/PSD68/16
GD70XDA12~16	1200~1600	70	100	550	0.80	XDA	VUO70-16NO7
GD75SEA08~18	800~1800	75	100	550	0.78	SEA	MSD75-16	SKD62/16
GD75XEA08~18	800~1800	75	100	550	0.78	XEA	VUO62-16NO7
GD75XEB08~18	800~1800	75	100	550	0.78	XEB	VU064-16NO7	MMD70EC160X
GD75REA08~18	800~1800	75	100	1000	1.40	REA		DF75AA160
GD75REC08~18	800~1800	75	100	1000	1.40	REC		DF75AC160
GD75RLA08~18	800~1800	75	101	1000	1.30	RLA		DF75LA160
GD75RLB08~18	800~1800	75	101	1000	1.30	RLB		DF75LB160
GD80XWD08~18	800~1800	80	110	600	0.81	XWD	VUO80-16NO1
GD83SWE08~18	800~1800	80	110	600	0.81	SWE		SKD83/16
GD86XWA08~16	800~1600	90	105	550	0.81	XWA	VUO86-16NO7/PSD86/16
GD98XWB08~16	800~1600	105	115	750	0.81	XWB	VUO98-16NO7/PSD98/16
GD100SEA08~18	800~1800	100	105	750	0.78	SEA	MMD100E160X	SKD82/16
GD100XEA08~18	800~1800	100	105	750	0.78	XEA	VUO82-16NO7
GD100XEB08~18	800~1800	100	105	750	0.78	XEB	VUO84-16NO7	MMD100EC160X
GD100FEA08~18	800~1800	100	105	750	0.78	FEA	6RI100G-160
GD100SEB08~18	800~1800	100	93	1000	0.85	SEB		SKD100/16
GD100REA08~18	800~1800	100	102	1000	1.20	REA		DF100AA160
GD100REC08~18	800~1800	100	102	1300	1.20	REC		DF100AC160
GD100RLA08~18	800~1800	100	90	1300	1.30	RLA		DF100LA160
GD100RLB08~18	800~1800	100	90	1300	1.30	RLB		DF100LB160
GD100IGA16R	1600	100	100	650	1.55	IGA	DDB6U100N16R
GD105XFC12~18	1200~1800	120	105	1500	0.78	XFC	VUO105-16NO7,PSD105/16
GD110SFA08~18	800~1800	110	100	1000	0.85	SFA		SKD110/16
GD110MFA08~18	800~1800	110	100	1000	0.85	MFA	MSD100-16
GD110XFA08~18	800~1800	110	100	1000	0.85	XFA	VUO110-16NO7
GD115SWF16	1200~1600	110	85	1150	0.80	SWF		SKD115/16
GD120XWE16NOXT	1200~1600	120	90	860	0.81	XWE	VUO120-16NO2T/NO1
GD121XGA16	1600	120	105	700	0.80	XGA	VUO121-16NO1
GD122XWB08~16	800~1600	125	115	1000	0.80	XWB	VUO122-16NO7,PSD108/16
GD125XFC12~18	1200~1800	150	110	1800	0.76	XFC	VUO125-16NO7,PSD125/16
GD144IGA16R	1600	145	100	1200	1.65	IGA	DDB6U144N16R
GD145SWF12~18	1200~1800	140	85	1700	0.80	SWF		SKD145/12~18
GD150RFA08~18	800~1800	150	100	1200	1.20	RFA		DF150AA160
GD150RFB08~18	800~1800	150	100	1200	1.20	RFB		DF150AB160
GD150RFC08~18	800~1800	150	106	2000	1.31	RFC		DF150AC160
GD150RFE08~18	800~1800	150	106	2000	1.31	RFE		DF150AE160
GD160SFA08~18	800~1800	175	110	1800	0.77	SFA		SKD160/16
GD160XFA08~18	800~1800	175	110	1800	0.77	XFA	VUO160-16NO7
GD160XFB08~18	800~1800	175	110	1800	0.77	XFB	VUO162-16NO7	MMD150FB160X
GD160MFA08~18	800~1800	175	110	1800	0.77	MFA	MSD160-16	MMF150F160X
GD160VFA08~18	800~1800	200	85	1500	0.81	VFA	160MT160KB
GD200SFA08~18	800~1800	200	110	2800	0.74	SFA		SKD210/16
GD200XFA08~18	800~1800	200	110	2800	0.74	XFA	VUO190-16NO7
GD200XFB08~18	800~1800	200	110	2800	0.74	XFB	VUO192-16NO7	MMD200FB160X
GD200MFA08~18	800~1800	200	110	2800	0.74	MFA	MSD200-16	MMF200F160X
GD200RFA08~18	800~1800	200	102	2000	1.20	RFA		DF200AA160
GD200RFB08~18	800~1800	200	102	2000	1.20	RFB		DF200AB160
GD200RFC08~18	800~1800	200	106	2500	1.32	RFC		DF200AC160
GD200RFE08~18	800~1800	200	106	2500	1.32	RFE		DF200AE160
GD205IFA08~18	800~1800	205	100	1600	1.47	IFA	DDB6U205N16L
GD215IFB08~18	800~1800	215	110	2000	1.61	IFB	DDB6U215N16L

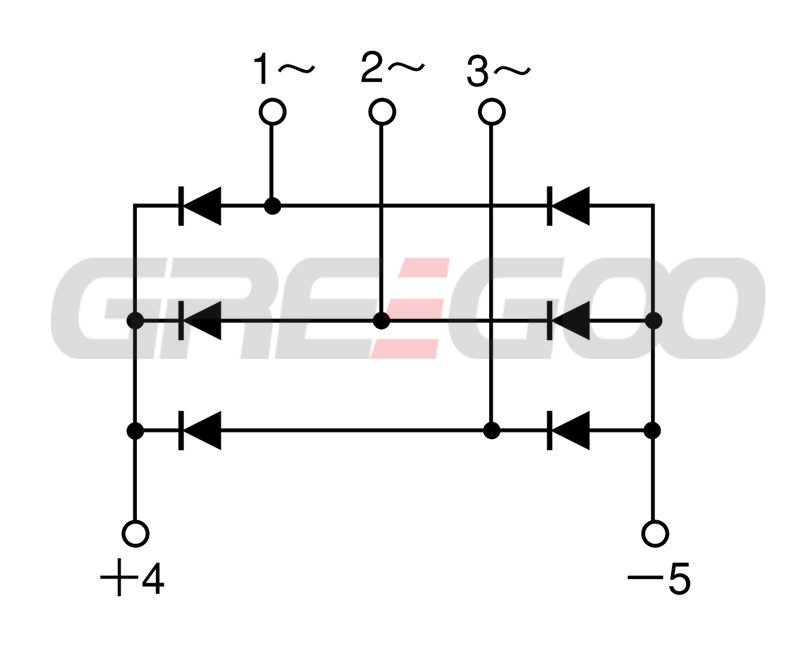

Three phase Rectifier Diode Bridge Modules

Three phase Rectifier Diode Bridge Modules
