Rotating Rectifier Diode Module 100A to 1000A 800V to 1800V
|
Part Numbers |
IF(AV) |
IFSM |
I2t |
VRRM |
IRRM |
VFM |
Tj |
Rjc |
VISO |
Torque Force |
Note |
|
|
A |
A |
A2S |
V |
mA |
V |
℃ |
C/W |
V |
Module (N·m) |
Terminals (N·m) |
Technology |
|
|

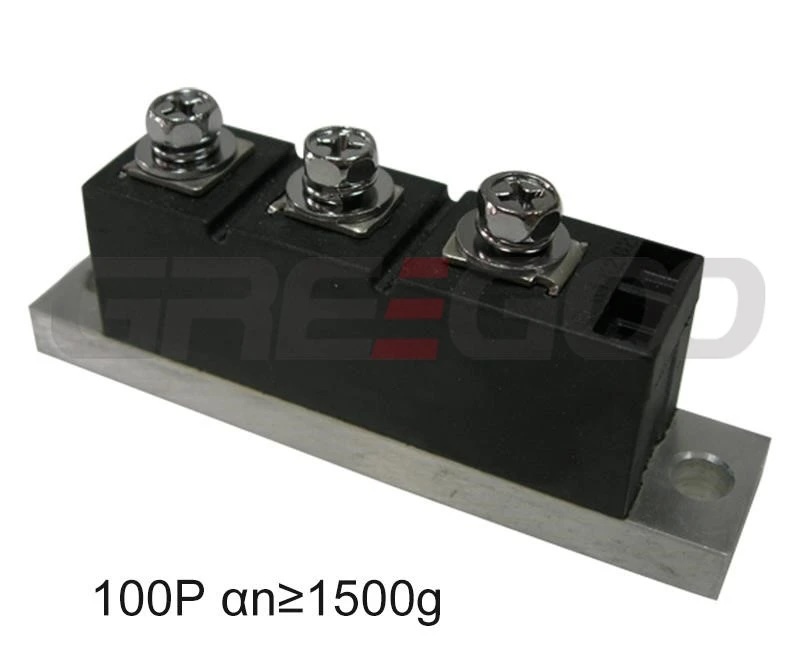

ZXQ100P |
100 |
2200 |
24×10³ |
800-1800 |
≤6 |
≤1.65 |
-40～150 |
0.45 |
≥2500 |
4.5 |
3.5 |
Press Contact |
|
ZXQ160P |
160 |
3200 |
60×10³ |
800-1800 |
≤8 |
≤1.80 |
-40～150 |
0.30 |
≥2500 |
4.5 |
4.5 |
Press Contact |
|
ZXQ200P |
200 |
4000 |
80×10³ |
800-1800 |
≤8 |
≤1.80 |
-40～150 |
0.20 |
≥2500 |
4.5 |
4.5 |
Press Contact |
|
ZXQ250P |
250 |
4700 |
120×10³ |
800-1800 |
≤10 |
≤1.80 |
-40～150 |
0.15 |
≥2500 |
4.5 |
10 |
Press Contact |
|
ZXQ300P |
300 |
5600 |
160×10³ |
800-1800 |
≤10 |
≤1.80 |
-40～150 |
0.11 |
≥2500 |
4.5 |
10 |
Press Contact |
|
ZXQ350P |
350 |
6400 |
220×10³ |
800-1800 |
≤10 |
≤2.00 |
-40～150 |
0.10 |
≥2500 |
4.5 |
10 |
Press Contact |
|
ZXQ400P |
400 |
7500 |
280×10³ |
800-1800 |
≤10 |
≤2.00 |
-40～150 |
0.09 |
≥2500 |
4.5 |
10 |
Press Contact |
|
ZXQ500P |
500 |
9400 |
440×10³ |
800-1800 |
≤12 |
≤2.00 |
-40～150 |
0.065 |
≥2500 |
4.5 |
10 |
Press Contact |
|
ZXQ600P |
600 |
11000 |
600×10³ |
800-1800 |
≤12 |
≤2.00 |
-40～150 |
0.055 |
≥2500 |
4.5 |
10 |
Press Contact |
|
ZXQ700P |
700 |
13000 |
850×10³ |
800-1800 |
≤15 |
≤2.00 |
-40～150 |
0.050 |
≥2500 |
4.5 |
12 |
Press Contact |
|
ZXQ800P |
800 |
15000 |
1100×10³ |
800-1800 |
≤15 |
≤2.00 |
-40～150 |
0.042 |
≥2500 |
4.5 |
12 |
Press Contact |
|
ZXQ1000P |
1000 |
19000 |
1800×10³ |
800-1800 |
≤15 |
≤2.00 |
-40～150 |
0.030 |
≥2500 |
4.5 |
12 |
Press Contact |
|
ZXQ100S |
100 |
1400 |
10×10³ |
800-1800 |
≤6 |
≤1.65 |
-40～150 |
0.45 |
≥2500 |
4.5 |
3.5 |
Soldering |
|
ZXQ160S |
160 |
2100 |
22×10³ |
800-1800 |
≤8 |
≤1.80 |
-40～150 |
0.30 |
≥2500 |
4.5 |
4.5 |
Soldering |
|
ZXQ200S |
200 |
2800 |
40×10³ |
800-1800 |
≤8 |
≤1.80 |
-40～150 |
0.20 |
≥2500 |
4.5 |
4.5 |
Soldering |
A rotating diode is a special type of rectifier diode used in the brushless excitation system of synchronous generators (alternators). It is mounted on the rotating part of the machine (rotor) and plays a crucial role in converting AC (alternating current) to DC (direct current) to provide stable excitation to the generator's main field winding.
