Single switch with AP diode and chopper diode

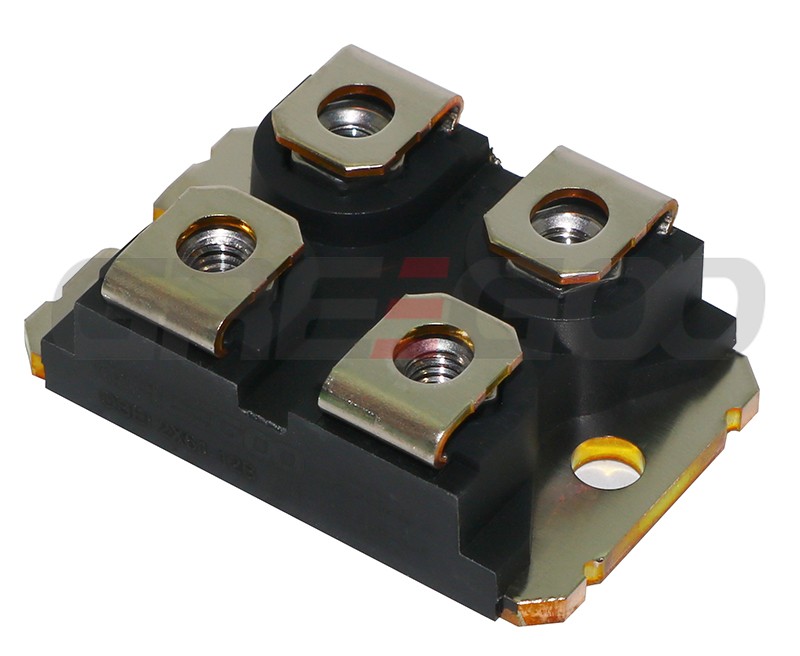

Home Products SOT-227 Semiconductor DeviceFast Recovery Epitaxial DiodeSingle switch with AP diode and chopper diode
Specification
Single switch with AP diode and chopper diode
| Series | Circuit Configuration | VCES (V) | IC (A) | TC (°C) | V CE(on) (V) | TJ (°C) | E on (mJ) | E off (mJ) | Speed (kHz) |
| GT100DA120UF | Single switch with AP diode | 1200 | 123 | 90 | 1.93 | 150 | 3.9 | 7.1 | 8 to 30 |
| GT100LA65UF | Low side chopper | 650 | 70 | 80 | 1.72 | 175 | 3.16 | 0.72 | up to 150 |
| GT180DA120U | Single switch with AP diode | 1200 | 185 | 90 | 1.55 | 150 | 5.7 | 11.6 | 8 to 30 |
| GT250SA60S | Single switch no diode | 600 | 250 | 90 | 1.16 | 175 | 2.03 | 9.65 | DC to 1 |
| GT50LA65UF | Low side chopper | 650 | 44 | 80 | 1.7 | 175 | 0.68 | 0.27 | up to 150 |
| GT55LA120UX | Low side chopper | 1200 | 47 | 80 | 2.39 | 150 | 4.1 | 2.3 | 8 to 60 |
| GT55NA120UX | High side chopper | 1200 | 47 | 80 | 2.39 | 150 | 4.1 | 2.3 | 8 to 60 |
| GT75LA60UF | Low side chopper | 600 | 61 | 80 | 1.79 | 175 | 0.95 | 0.53 | up to 150 |
| GT75NA60UF | High side chopper | 600 | 61 | 80 | 1.79 | 175 | 0.95 | 0.53 | up to 150 |
| GT80DA120U | Single switch with AP diode | 1200 | 93 | 90 | 2 | 150 | 3.9 | 5.5 | 8 to 30 |
| GT80DA60U | Single switch with AP diode | 600 | 85 | 90 | 1.83 | 175 | 2.3 | 1.43 | 8 to 30 |
| GT90DA120U | Single switch with AP diode | 1200 | 106 | 90 | 2.17 | 150 | 2.23 | 3.87 | 8 to 30 |
| GT90DA60U | Single switch with AP diode | 600 | 92 | 90 | 1.64 | 150 | 1.81 | 1 | 8 to 30 |
| GT90SA120U | Single switch no diode | 1200 | 106 | 90 | 2.17 | 150 | 2.23 | 3.87 | 8 to 30 |
