SOT-227 Fast Recovery Diode Module
|
Package |
Part No |
VRRM [V] |
IF [A] @100℃ |
VF [V] @25℃ |
trr [ns] @25℃ |
Irrm [mA] @100℃ |
Circuit |
|
SOT-227 |

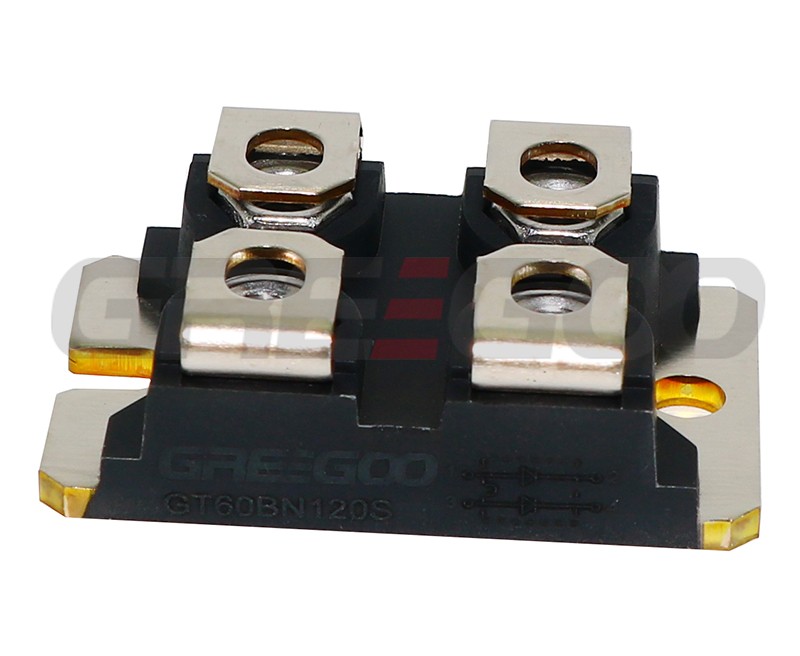

GT60BN120S |
1200 |
60x2 |
1.7 |
170 |
3.0 |
BN |
|

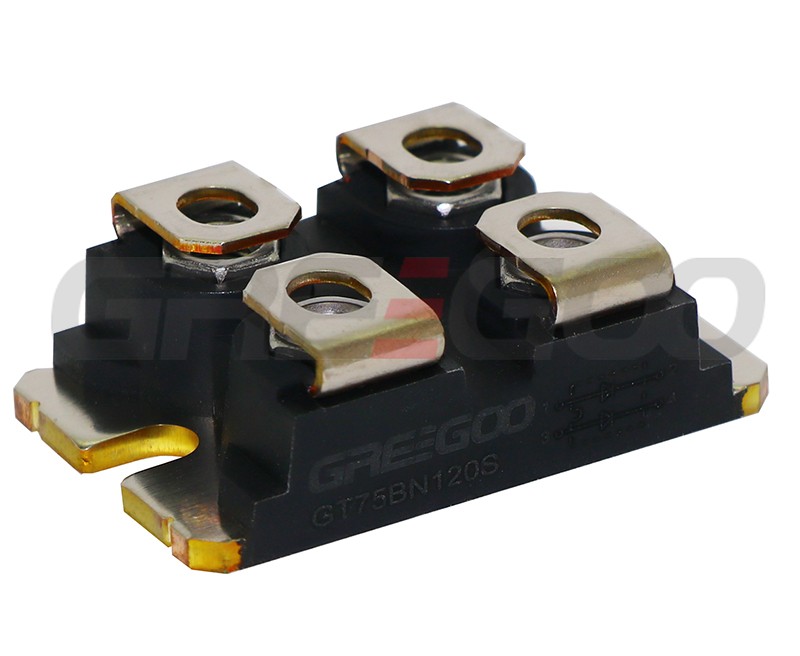

GT75BN120S |
1200 |
75x2 |
2.15 |
125 |
3.0 |
BN |
|
|

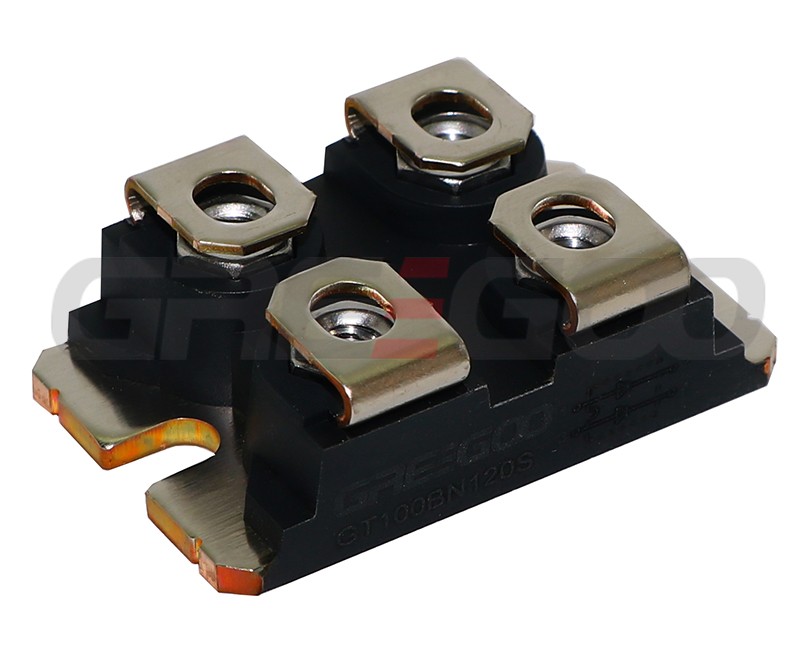

GT100BN120S |
1200 |
100x2 |
1.6 |
180 |
2.0 |
BN |
|
|

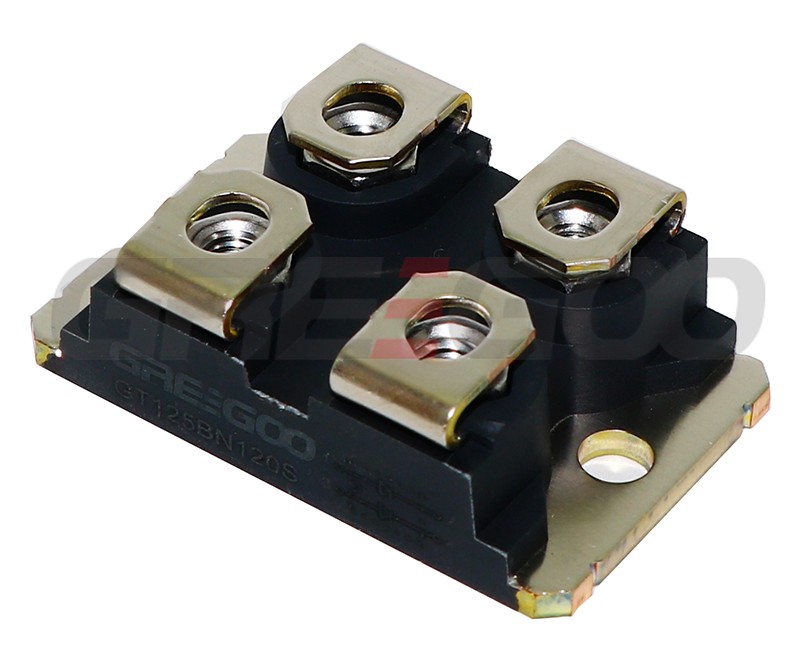

GT125BN120S |
1200 |
125x2 |
1.7 |
190 |
2.0 |
BN |
|
Package
|
Part No
|
VRRM [V] |
IF [A] @100℃
|
VF [V] @25℃
|
trr [ns] @25℃
|
Irrm [mA] @100℃
|
Circuit
|
|
SOT-227 |
GT75BN60S |
600 |
75x2 |
1.3 |
100 |
1.0 |
BN |
|
GT100BN60S |
600 |
100x2 |
1.3 |
140 |
1.0 |
BN |
|
|
GT100BN60SN |
600 |
100x2 |
1.3 |
140 |
1.0 |
BN |
|
|
GT100BN60K |
600 |
100x2 |
1.3 |
140 |
1.0 |
BN |
|
|
GT100BN60KA |
600 |
100x2 |
1.3 |
140 |
1.0 |
BN |
|
Package |
Part No |
VRRM [V] |
IF [A] @100℃ |
VF [V] @25℃ |
trr [ns] @25℃ |
Irrm [mA] @25℃ |
Circuit |
|
SOT-227 |
GT100BN40S |
400 |
100x2 |
1.05 |
90 |
1.0 |
BN |
Need more information?
Contact us to request pricing, availability and customization options.
