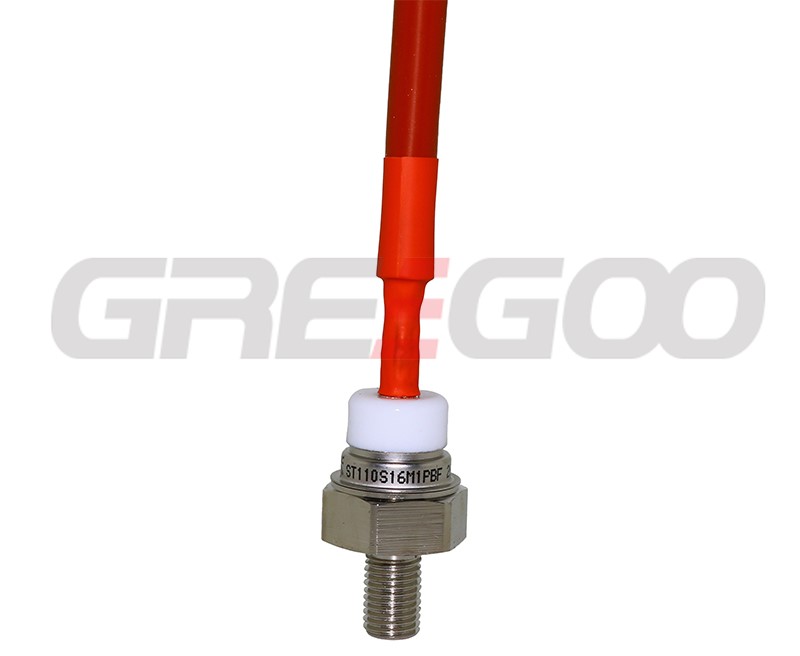

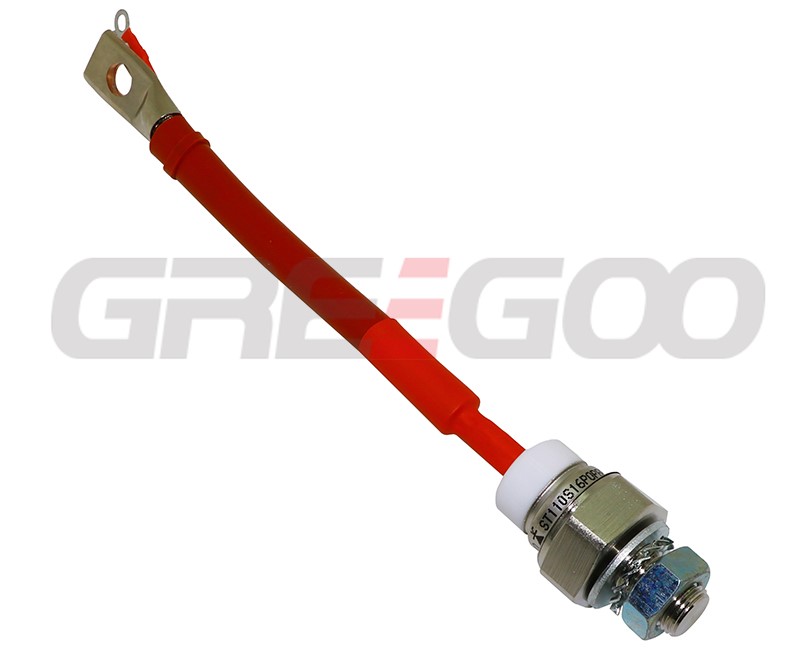

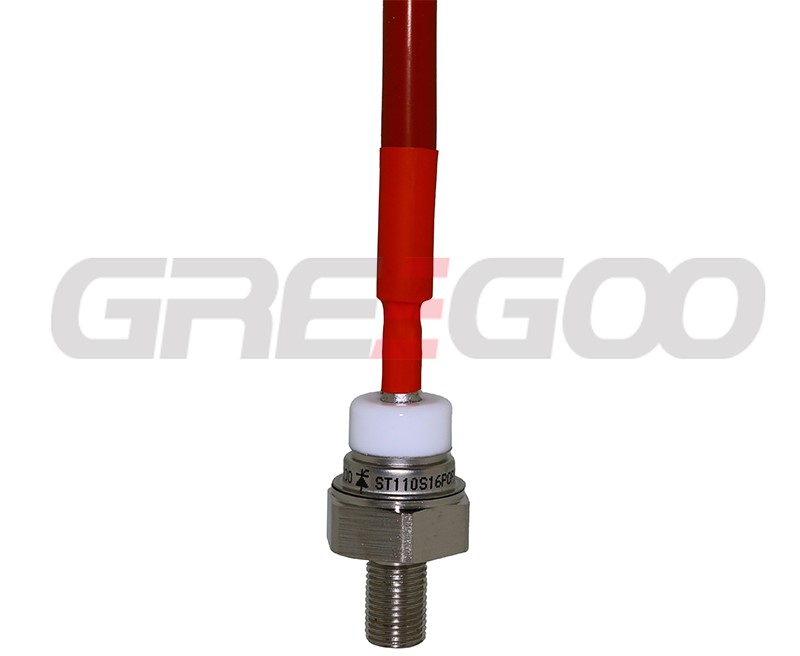

ST110S Stud Phase Control Thyristor

FEATURES
. Center gate
. International standard case TO-94(TO-209AC).
. Compression bonded encapsulation for heavy duty operations such as severe thermal cycling
. Hermetic glass-metal case with ceramic insulator(Glass-metal seal over 1200V)

PRIMARY CHARACTERISTICS

Part numbers	ST110S16P0PbF	ST110S16M1PbF
IT(AV)	110A	110A
VDRM/VRRM	400V,800V,200V,1600V	400V,800V,200V,1600V
VTM	1.52 V	1.52 V
IGT	150 mA	150 mA
TJ	-40℃ to 125℃	-40℃ to 125℃
Package	TO-94 (TO-209AC)	TO-94 (TO-209AC)
Circuit configuration	Single SCR	Single SCR
Stud base	Imperial (20UNF) threads	Metric threads M12 x 1.75
