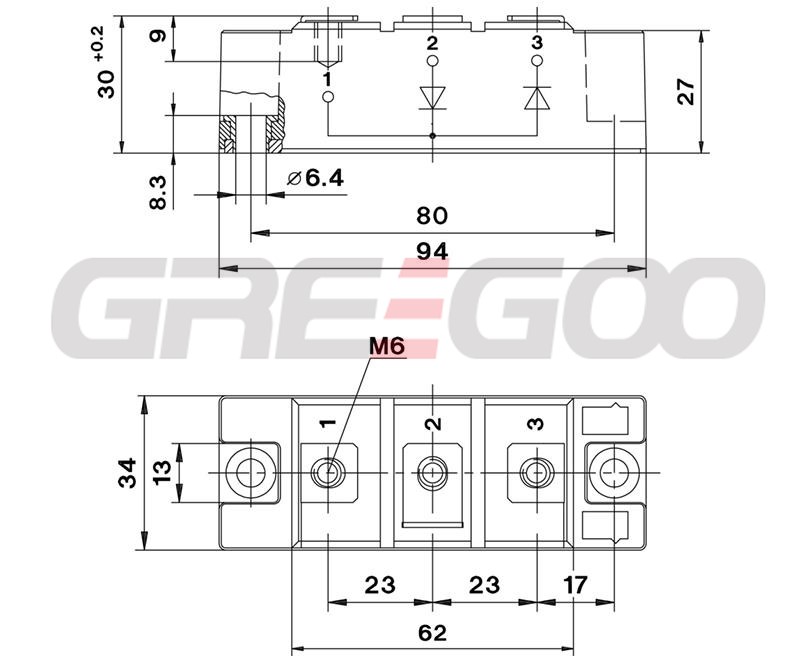

SKND205F06 Fast Diode Module

Features
• Very soft recovery over the whole current range
• Very short recovery times
• Low switching losses
• Heat transfer through ceramic isolated metal baseplate
• Materials and distances according to UL

Typical Applications
• Self-commutated inverters
• DC choppers
• AC motor speed control
• Inductive heating
• Uninterruptible power supplies
• Electronic welders
• General power switching applications
