SKM200GB12T4 Fast IGBT4 Modules

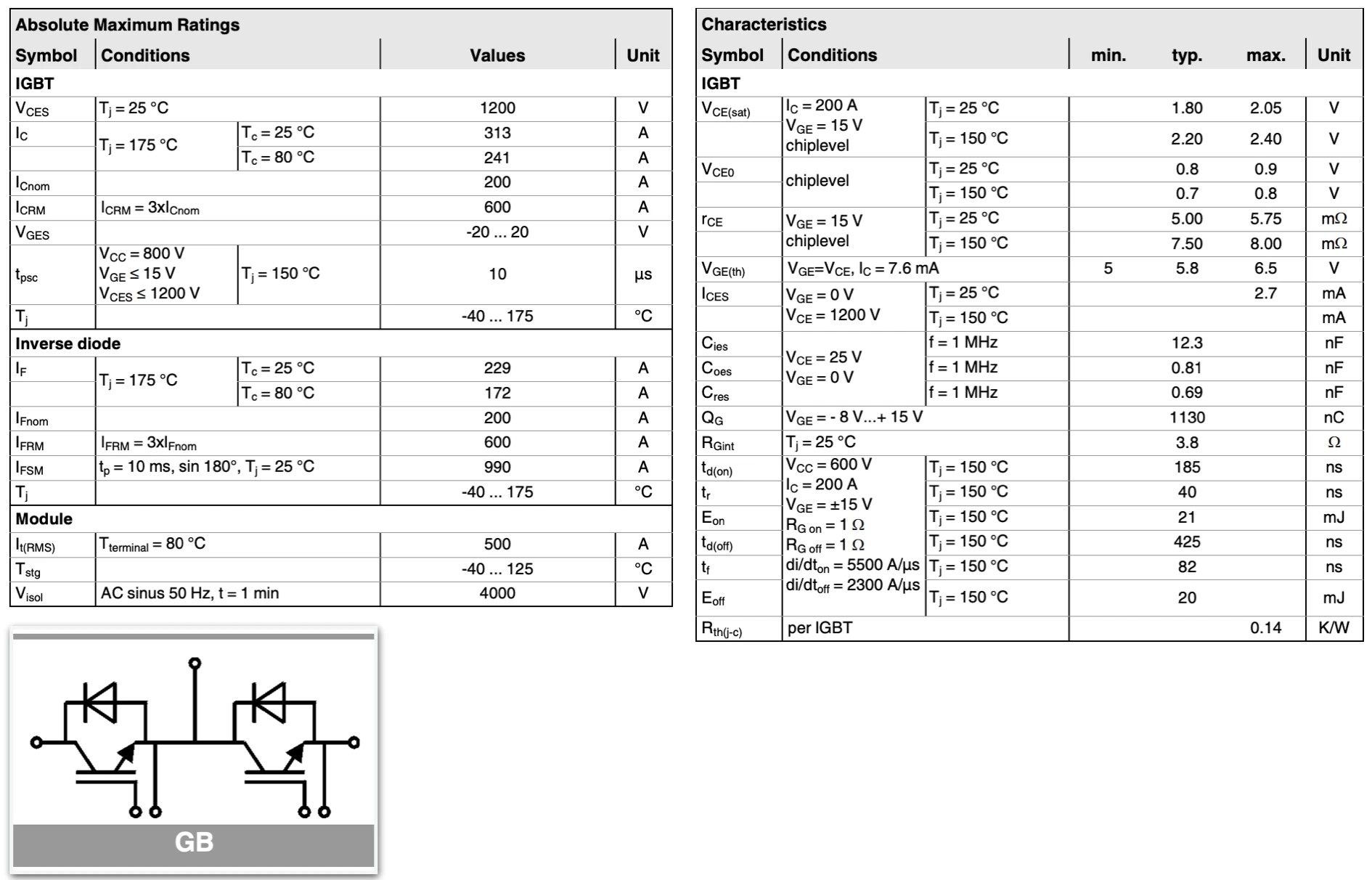

Features

• IGBT4 = 4. generation fast trench IGBT (Infineon)
• CAL4 = Soft switching 4. generation
  CAL-diode
• Isolated copper baseplate using DBC technology (Direct Bonded Copper)
• Increased power cycling capability
• With integrated gate resistor
• For higher switching frequenzies up to 20kHz



Typical Applications

• AC inverter drives
• UPS
• Electronic welders at fsw up to 20 kHz



Remarks

• Case temperature limited to To = 125°C max.
• Recommended Top = -40 ... 150°C
• Product reliability results valid for T; = 150°C
