SKM100GB12T4 Fast IGBT4 Modules
Features
- IGBT4 = 4. Generation (Trench)IGBT
- VCEsat with positive temperature coefficient
- High short circuit capability, self limiting to 6 X ICNOM
- Soft switching 4. Generation CAL diode (CAL4)
Typical Applications
- AC inverter drives
- UPS
- Electronic welders at fsw up to 20 kHz
Remarks
• Case temperature limited to Tc = 125°C max, recomm.
Top = -40 ... 150°C, product rel. results valid for Tj = 150°

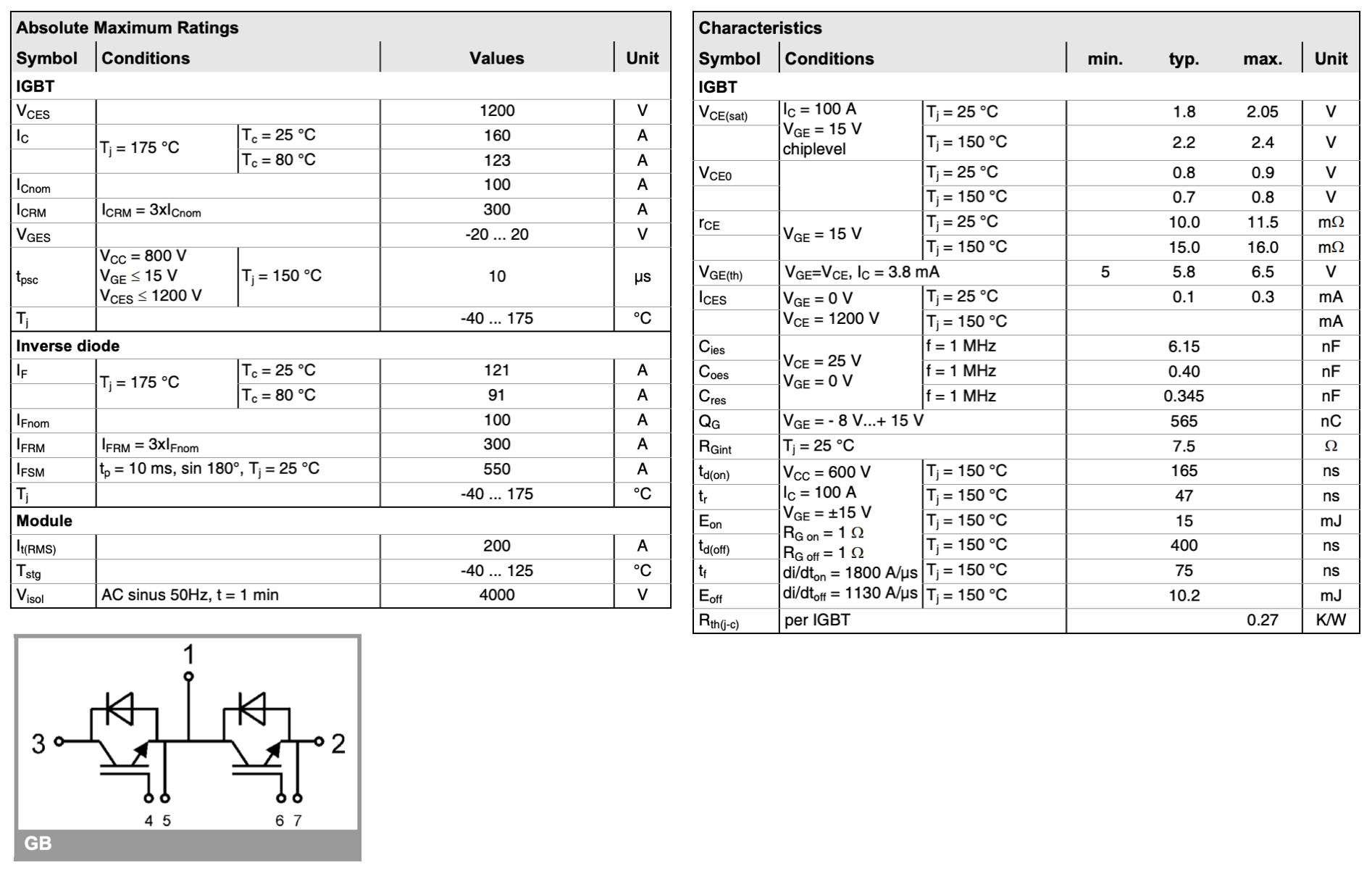

Specification
