SCR Voltage Regulator three phase 40A

Home Products SCR Power ControllerHGW3 Analog Indicator Basic typeSCR Voltage Regulator three phase 40A

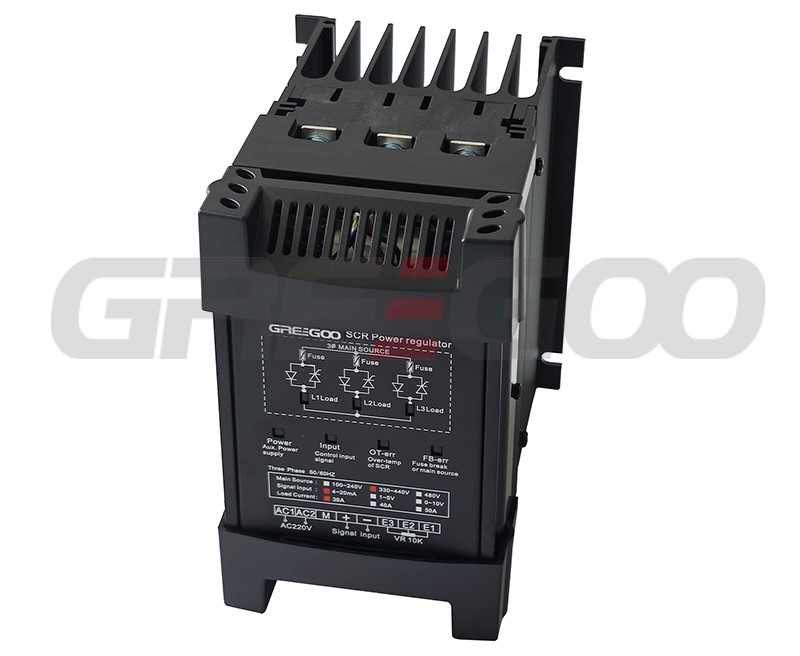

HGW3-4-4-040-P SCR Voltage Regulator front view

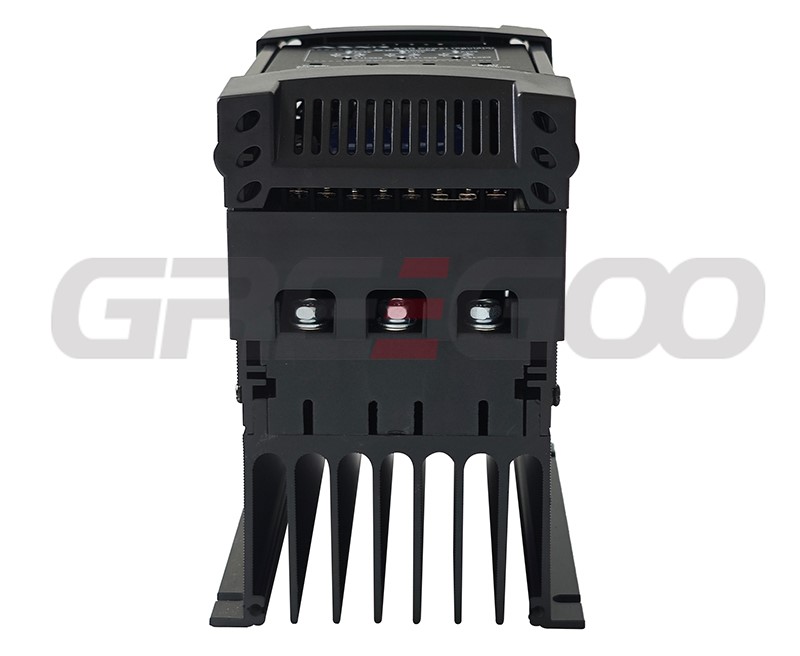

HGW3-4-4-040-P SCR Voltage Regulator side view

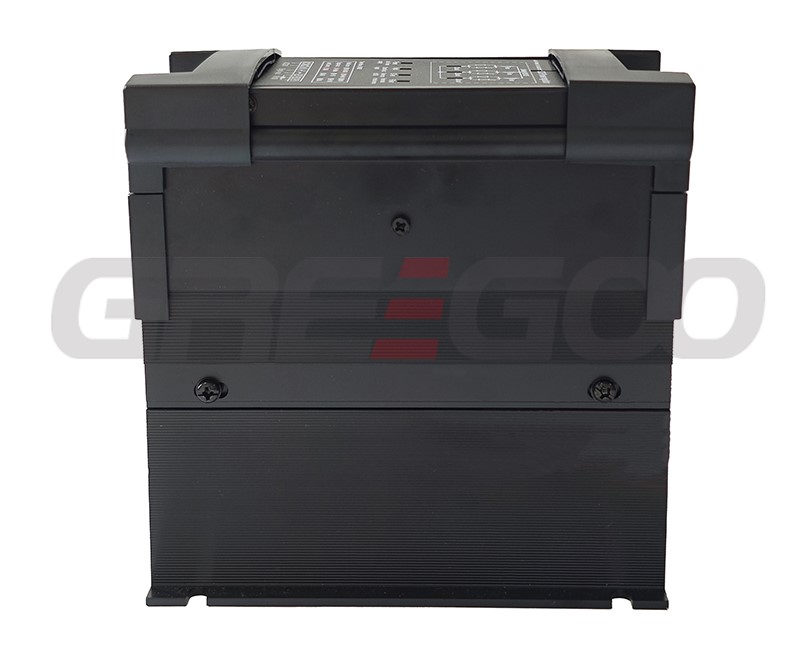

HGW3-4-4-040-P SCR Voltage Regulator side views

Specification

SCR Voltage Regulator three phase 40A

Mode	Phase	Input Voltage	Max. Current	Load(KW)		Weight (KG)	Control mode	Control signal
				220V	380V
HGW3-4-4-040-P	3PH	330-440V	40A	12.5	20	2.3	Phase Angle	4-20mA
HGW3-4-4-040-P1	3PH	330-440V	40A	12.5	20	2.3	Phase Angle	0-10V
HGW3-4-2-040-P	3PH	100-240V	40A	12.5	20	2.3	Phase Angle	4-20mA
HGW3-4-2-040-P1	3PH	100-240V	40A	12.5	20	2.3	Phase Angle	0-10V
HGW3-4-8-040-P	3PH	480V	40A	12.5	20	2.3	Phase Angle	4-20mA
HGW3-4-8-040-P1	3PH	480V	40A	12.5	20	2.3	Phase Angle	0-10V

Download

Thyristor Voltage Regulator Basic type HGW3 (PDF)
